Pike F-210C

The Pike -Versatile -Premium Quality -Advance features set - Many Variant

Pike F-210C

HDTV camera with video frame rate – 2 Megapixels

The Pike F-210B/C is equipped with a OnSemi KAI-2093 CCD sensor, and it features smart real-time functions.  At full resolution, it runs up to 31 fps. Higher frame rates can be reached by a smaller AOI, binning (b/w), or sub-sampling.

Options

  • 1394b connectors: 2 x copper (daisy chain) or 1 x GOF, 1 x copper, Hirose power: out
  • Various IR cut/pass filters, various lens mounts
  • Angled head, white medical housing
InterfaceIEEE 1394b - 800 Mb/s, 2 ports, daisy chain, fiber optic (GOF) optional
Resolution1920 × 1080

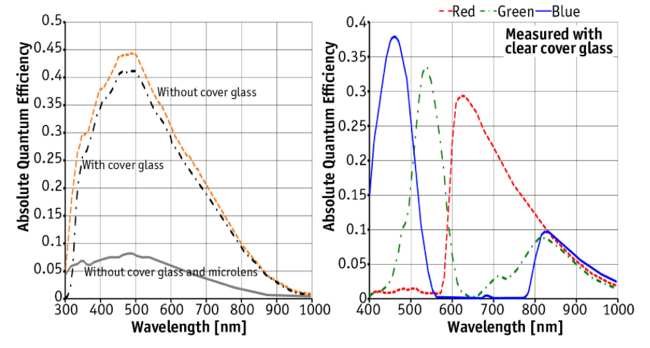

SensorOnSemi KAI-2093
Sensor typeCCD Progressive
Sensor sizeType 1
Cell size7.4 µm
Lens mountC
Frame rate31 fps
ADC14 Bit
On-board FIFO64 Mbyte
Bit depth8-14 Bit
Mono modesMono8, Mono12, Mono16
Color modes RGBRGB8
Raw modesRaw8, Raw12, Raw16
Opto-isolated I/Os2 inputs, 4 outputs
RS-2321
Power requirements (DC)8 V - 36 V
Power consumption (@12 V)4 W
Mass250 g
Body dimensions (L × W × H in mm)96.8 × 44 × 44 mm including connectors, w/o tripod and lens
RegulationsCE, FCC Class B, RoHS
    • High SNR mode (up to 24 dB better signal-to-noise ratio)
    • Low-Noise Binning Mode
    • Smear reduction
    • Shading correction
    • ROI, separate ROI for auto features
    • Binning
    • Decimation
    • Auto gain (manual gain control: 0 to 22 dB)
    • Auto exposure (18 µs to 67 s)
    • Auto white balance
    • LUT (look-up table)
    • Hue, saturation, color correction
    • Reverse X
    • Deferred image transport
    • Trigger programmable, level, single, bulk, programmable delay
    • Sequence mode (changes the camera settings on the fly)
    • SIS (secure image signature, time stamp for trigger, frame count etc.)
    • Storable user sets

The Pike F-210B/C suits for applications which require the highest quality in HDTV resolution (1920 x 1080) at video frame rates. Besides the excellent image quality, its flexibility makes it suitable for many applications. The fiber version supports cable lengths of 400 meters and even more without any additional repeaters.

Pike cameras are especially suited for:

  • Entertainment, movie pre-production, video recording
  • OEM applications (modular concept)
  • Motion studies
  • Science and research
  • Healthcare and sports
  • Event documentation
  • ITS (Intelligent traffic solutions)
  • Long cable lengths, 400 meters and more (fiber version)
