VS-LLD35
It supports up to 4/3” and C- mount camera. Designed for Distortionless and High resolution machine vision macro lens. It has 9 product line (f# range : 10mm-50mm) covers various angles of view. The floating system improves high performance with any magnification with reduced shading.
Model | VS-LLD35 | |||
---|---|---|---|---|
Focal length (f) | 35 mm | |||
Optical mag. range | (∞) X 0.05 ~ X 0.30 | |||
Optical Mag. | X 0.05 | X 0.15 | X 0.30 | |
4/3" | 272.0 X 362.6 | 90.7 X 120.9 | 45.3 X 60.4 | |
FOV (VxH mm) | 1" | 225.3 X 225.3 | 75.1 X 75.1 | 37.5 X 37.5 |
2/3" | 142.0 X 168.0 | 47.3 X 56.0 | 23.7 X 28.0 | |
WD | 706.6 mm | 239.3 mm | 129.5 mm | |
O/I (Object & Imager Distance) | 806.6 mm | 339.2 mm | 229.5 mm | |
WorkingF/# *value at Iris open | 2.2 | 2.5 | 2.7 | |
TV distortion (4/3") | -0.16 % | -0.15 % | -0.11 % | |
Operation of Iris & Focus | Manual | |||
Wavelength | Visible | |||
Camera mount | C-mount | |||
Flange Back | 17.526 mm | |||
Filter Thread | M 46 P= 0.75 | |||
Sensor size (max.) | 4/3" | |||
Weight (approx.) | 300g | |||

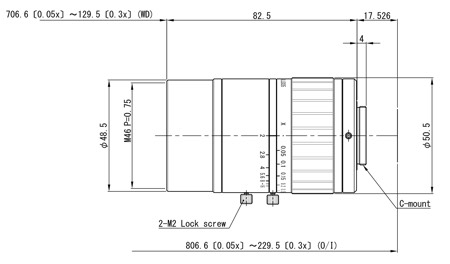

Dimension | φ 50.5 | (max.) x L= 82.5 mm |
