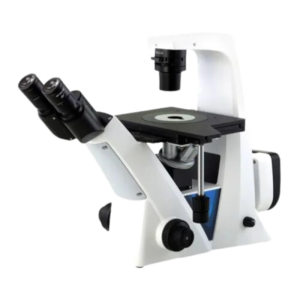

BDS300 Series Inverted Biological Microscope
| Model Name | BDS300 Series Inverted Biological Microscope | ||
|---|---|---|---|
| Item | Specification | Outfits | |
| Eyepiece | WF10X/20mm | ●● | |
| LWD Infinity Plan Objectives | L Plan FL 4X／0.11 | W.D.=12.1mm | ○ |
| L Plan FL 10X／0.25 | W.D.=10.3mm | ● | |
| L Plan FL 20X／0.45 | W.D.=5.8mm | ○ | |
| L Plan FL 40X／0.65 | W.D.=5.1mm | ● | |
| LWD Infinity Plan Phase Contrast Objectives | L Plan FL PHP 10X／0.25 (Both for Bright Field & Phase Contrast) | W.D.=10.3mm | ○ |
| L Plan FL PHP 20X／0.45 (Both for Bright Field & Phase Contrast) | W.D.=5.8mm | ● | |
| L Plan FL PHP 40X／0.65 (Both for Bright Field & Phase Contrast) | W.D.=5.1mm | ○ | |
| Annular Spot | 10x | ○ | |
| 20X/ 40X | ● | ||
| Butterfly Siedentopf Head | Eyepiece tube 360°rotated, Inclined 45°, IPD: 48-75mm, Light distribution: 80:20（80% for eyepiece,and 20% for camera tube） | ● | |
| Nosepiece | Quadplex | ● | |
| Mechanical Stage | Stage size: 180 mm×155mm, Moving range:75×40mm , Scale : 0.1mm, Round slide size：φ110mm， Glass Holder（external diameter φ110mm, inside diameter φ30mm） | ● | |
| Fixed Stage | Stage size: 180 mm×203mm, Round slide size：φ110mm， Glass Holder（external diameter φ110mm, inside diameter φ30mm） | ○ | |
| Drop-shaped Metal Holder( external diameter φ110mm, inside diameter φ25mm） | ○ | ||
| Coaxial Coarse and Fine Focusing unit | Coarse stroke: 10mm, Fine stroke per rotation: 0.2mm, fine division 2 μm | ● | |
| Condenser | Long working distance, N.A.0.32,Working distance: 48mm | ● | |
| Illumination | 5WLED Warm lamp (Input voltage：100V～240V) | ● | |
| Filter | Green | ● | |
| Blue /Yellow /Grey | ○ | ||
| C-mount | 0.65×(built-in) | ● | |
| Objective Parameter List (Cover-glass thickness1.1mm) | |||
| Objectives | N.A | Working distance(mm) | |
| LWD Infinity Plan Objectives | L Plan FL 4X | 0.11 | 12.1 |
| L Plan FL 10X | 0.25 | 10.3 | |
| L Plan FL 20X | 0.45 | 5.8 | |
| L Plan FL 40X | 0.65 | 5.1 | |
| LWD Infinity Plan Phase Contrast Objectives | L Plan FL PHP 10X (Both for Bright Field & Phase Contrast) | 0.25 | 10.3 |
| L Plan FL PHP 20X (Both for Bright Field & Phase Contrast) | 0.45 | 5.8 | |
| L Plan FL PHP 40X (Both for Bright Field & Phase Contrast) | 0.65 | 5.1 | |
Note: “●”In Table Is Standard outfits, “○” Is Optional Accessories.
Packing Size: 515mm× 480mm× 315mm Gross Weight: 9kgs Net Weight: 7 kgs
