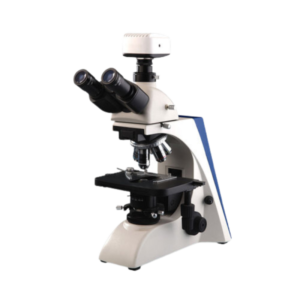

BK5000 Series Biological Microscope
Main > Product > Microscope > Biological Microscope > BK5000 Series Biological Microscope
BK5000 Series Biological Microscope
| BK5000 Series Biological Microscope | |||
|---|---|---|---|
| Items | Specification | Outfits | |
| Eyepiece | WF10×／20mm (23.2mm) | ●● | |
| Infinity Plan Objectives | PLAN 4×／0.10 | W.D.=12.10mm | ● |
| PLAN 10×／0.25 | W.D.=4.64mm | ● | |
| PLAN 20×／0.40(S) | W.D.=2.41mm | ● | |
| PLAN 40×／0.66(S) | W.D.=0.65mm | ● | |
| PLAN 100×／1.25(S, Oil) | W.D.=0.12mm | ● | |
| PLAN 2.5×／0.07 | W.D.=8.47mm | ○ | |
| PLAN 60×／0.80(S) | W.D.=0.33mm | ○ | |
| PLAN 100×／1.15(S, W) | W.D.=0.19mm | ○ | |
| Infinity Plan Semi Apochromatic Objective | UPlanFLN 10X/0.30 | W.D.=7.68mm | ○ |
| UPlanFLN 20X/0.50 | W.D.=1.96mm | ○ | |
| UPlanFLN 40X/0.75 | W.D.=0.78mm | ○ | |
| UPlanFLN 100X /1.30 (Oil) | W.D.=0.15mm | ○ | |
| Seidentopf Binocular Head | Inclined 30°,Rotatable 360°, Interpupilary Distance:48mm-75mm | ● | |
| Seidentopf Trinocular Head | Inclined 30°,Rotatable 360°, Interpupilary Distance:48mm-75mm, Light Distribution: 100: 0 / 80:20 | ○ | |
| Nosepiece | Quintuple | ● | |
| Mechanical Stage | Stage Size: 175mm×145mm,Travel: 78mm×55mm Coaxial Coarse and Fine Focusing Knobs Two Slide Holder | ● | |
| Integrated stage Stage size: 182 mm×140mm,Travel range: 77mm×52mm Two-slide holder | ○ | ||
| Condenser | Abbe N.A. 1.25 with iris diaphragm. | ● | |
| Swing Out Condenser, N.A. 0.9/0.13, with iris diaphragm. | ○ | ||
| Koehler Illumination Wide voltage input: 100V～240V Field diaphragm , center adjustable | 12V/20W Halogen Lamp | ○ | |
| 6V/30W Halogen Lamp | ○ | ||
| 3W-LED Illumination | ● | ||
| Filter | Blue | ● | |
| Green /Amber /Grey | ○ | ||
| C-mount | 1×/0.5×/0.75×C-mount (focus adjustable) | ○ | |
| Fluorescence Attachment | Epi fluorescence unit ( six-hole disc media which can be fixed with Uv /V/B/G and another filters) ,100W mercury lamp. | ○ | |
| Epi fluorescence unit ( six-hole disc media which can be fixed Uv /V/B/G), 5W-LED fluorescence lamp. | ○ | ||
| Phase Contrast Unit | Quintuple hole turret 10× /20× /40× /100× phase contrast objective | ○ | |
| Independent slot 10× /20× /40× /100× phase contrast objective | ○ | ||
| Dark Field Unit | Dark field condenser (dry)，apply to 4×- 40× objective | ○ | |
| Dark field condenser (wet)，apply to 100× objective | ○ | ||
| Polarizing Attachment | Analyzer / Polarizer | ○ | |
Note: “●”In Table Is Standard outfits, “○” Is Optional Accessories.
Packing Size: 542mm×265mm×355mm Gross Weight: 12 kgs Net Weight: 10kgs
