VS-L(V) Series
The VS-L(V) Series is a specialized lineup of Large Format / Line Scan Macro Lenses, meticulously designed to accommodate large sensors up to 90mm in length. With integrated vibration resistance, a broad range of mount adapters, high resolution, and remarkable contrast, these lenses stand as an exceptional choice for any line scan application. This series offers 13 distinct models, supporting sensors of up to 2K, 12K, and 16K resolutions. It ensures distortionless imaging, promising pristine results for your projects. To enhance versatility, a selection of mount adaptors, including M42, TFL, M58, and more, are available, providing adaptability and precision to cater to your unique imaging needs.

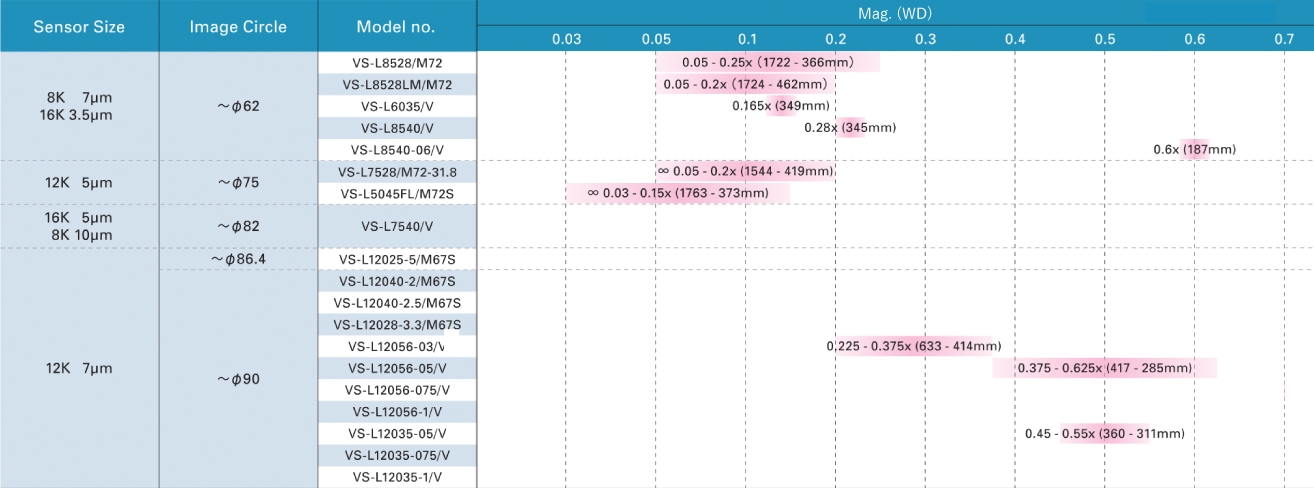

| Model | Opt. Mag. | WD (mm) | Working F/# | NA | Camera Mount |
|---|---|---|---|---|---|
| VS-L5045FL/M72S | (∞)0.03x~0.15x | 1763.4 mm | 4.7-5.3 | - | M72 P=0.75 |
| VS-L7528/M72-31.8 | (∞)0.05x~0.2x | 1554.2 mm | 3.0-3.4 | 0.083 | M72 P=0.75 |
| VS-L8528/M72 | 0.05x - 0.25x | 598.0(0.15x) | 3.24(0.15x) | - | M72 P=0.75 |
| VS-L8528LM/M72 | 0.05x - 0.20x | 619.0 (0.15x) | 3.22 (0.15x) | - | M72 P0.75 |
| VS-L6035/V | 0.165x | 349.2 | 4.06 | 0.02 | V Mount |
| VS-L7540/V | 1.0x | 114 | 8.67 | 0.058 | V-Mount |
| VS-L8540/V | 0.28x | 345.2 | 5.11 | 0.027 | V Mount |
| VS-L8540-06/V | 0.6x | 187 | 6.4 | 0.047 | V Mount |
| VS-L12056-03/V | 0.226x-0.375x | 496.7(0.3x) | 7.3(0.3x) | 0.02(0.3x) | V Mount |
| VS-L12056-05/V | 0.5x | 335.2 | 8.34 | 0.03 | V Mount |
| VS-L12056-075/V | 0.75x | 249.7 | 9.62 | 0.039 | V Mount |
| VS-L12056-1/V | 1.0x | 210.4 | 11 | 0.045 | V Mount |
| VS-L12035-05/V | 0.45x-0.55x | 333.2(0.5x) | 5.3(0.5x) | 0.047(0.5x) | V Mount |
| VS-L12035-075/V | 0.7x-0.8x | 248.9(0.75x) | 6.1(0.75x) | 0.061(0.75x) | V Mount |
| VS-L12035-1/V | 0.9x-1.1x | 215.7(1.0x) | 7.0(1.0x) | 0.071(1.0x) | V Mount |
| VS-L12040-2/M67S | 2.0x | 127.0 mm | 12.1 | 0.083 | M67 P=0.75 |
| VS-L12040-2.5/M67S | 2.5× | 115.5 mm | 13.7 | 0.091 | M67 P=0.75 |
| VS-L12028-3.3/M67S | 3.3× | 82.7 mm | 12.6 | 0.131 | M67 P=0.75 |
| VS-L12025-5/M67S | 5.0× | 78.7 mm | 15.0 | 0.167 | M67 P=0.75 |
Add on - Accessories
V-Mount Adaptors
| Model | Product | - |
|---|---|---|
| VS-LH/V | V Mount Adapter | Lens holder |
| VS-LH/V2 | V Mount Adapter | Lens holder |
| VS-FR20 | V Mount Adapter | Focus Ring |
| VS-FR32 | V Mount Adapter | Focus Ring |
| VS-EXR35/M72 | V Mount Adapter | Extention Tube |
| VS-EXR65/M72 | V Mount Adapter | Extention Tube |
| VS-MT-FB6.56 | V Mount Adapter | FB Conversion Adapter |
| VS-MT-FB9.4 | V Mount Adapter | FB Conversion Adapter |
| VS-MT-FB19.55 | V Mount Adapter | FB Conversion Adapter |
| VS-MT-FB12.0 | V Mount Adapter | FB Conversion Adapter |
F Mount Adaptors
| Model | Product | - |
|---|---|---|
| VS-FR15-38V/M52 | F Mount Adapter | Focus Ring |
| VS-FR44-38V/M52 | F Mount Adapter | Focus Ring |
| VS-EXR5/M52 | F Mount Adapter | Extention Tube |
| VS-EXR10/M52 | F Mount Adapter | Extention Tube |
| VS-EXR30/M52 | F Mount Adapter | Extention Tube |
| VS-EXR4.4/F | F Mount Adapter | Extention Tube |
| VS-FR20-53V/M72 | F Mount Adapter | Focus Ring |
| VS-FR32-53V/M72 | F Mount Adapter | Focus Ring |
