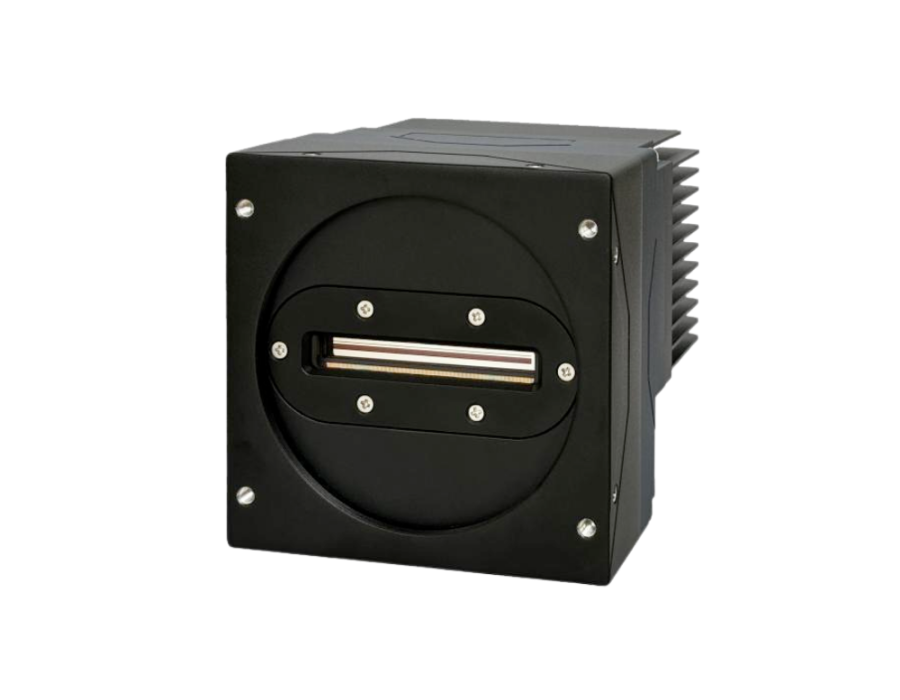

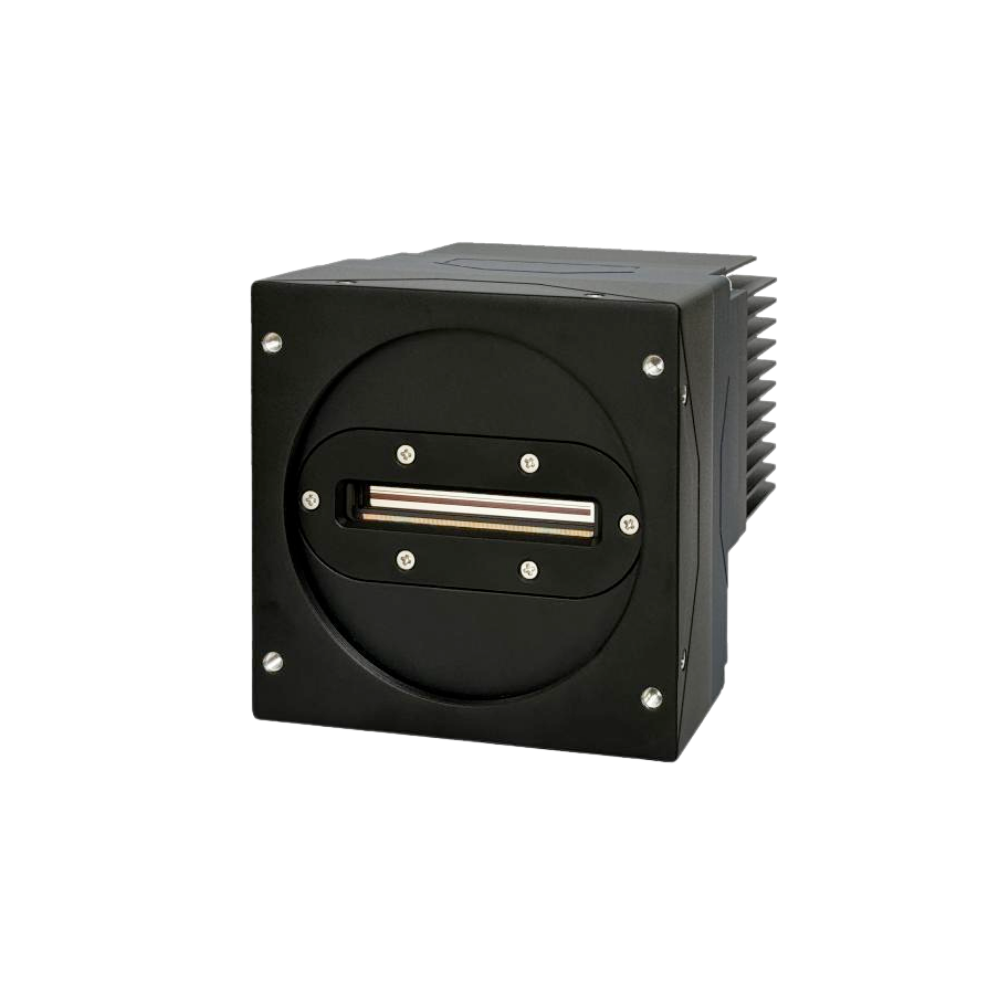

TPH9KCXP12-530KT256
Highlight Features
- Backshot CCD Sensor
- Line Resolution 9072 Pixels
- Maximum Line Rate 530kHz
- High sensitivity and low noise
| Model | TPH9KCXP12-530KT256 |
|---|---|
| Product Description | 9K 256-line monochrome TDI line scan camera |
| Sensor Type | Backshot CCD |
| Image Mode | Mono |
| Optical Size | 45.36 mm |
| Resolution | 9072 * 256 |
| Pixel Size | 5μm * 5μm |
| Max Line Rate | 529.1kHz@8bit，423.3kHz@10bit，300kHz@12bit |
| Bit Depth | 8/10/12 bit |
| Dynamic Range | ≥65.1 dB |
| Data Rate | 4800 MB/s |
| Trigger Mode | Free run / External trigger |
| Exposure Control | Timed; Line Rate Control |
| Exposure Time | 3us ~ 0.2s (step: 0.005us) |
| Analog Gain | 0.1~8 |
| Date Interface | CoaXPress12 |
| Lens Interface | M72 * 0.75 |
| Power Interface | Hirose HR10A-7R-6PB(Male) |
| Power Supply | DC 12~24V (±10%) 3.5A |
| Power Dissipation | 26.6W |
| Dimensions | Air cooled version: 86mm x 86mm x 85.6mm Water cooled version: 86mm x 86mm x 108.4mm |
| Operating Temperature | 0-55℃ |
| Storage Temperature | -20-75℃ |
