V2FL010
Small size, extensive measuring range, ultra-large measuring angle, high repeatability.
Main > Product > Chromatic Confocal Sensor > V2FL010

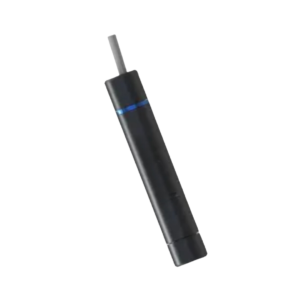

V2FL010
V2FL010 is a non-contact displacement sensor with accuracy up to the nanometer level. It has a stable measurement of metal/ceramic/mirror/glass and other materials. It has a large measuring angle suitable for all working morphologies (deep hole, angle, camber, etc.). This product is ideal for high-temperature and high-pressure operation environments.
| Model Name | V2FL010 |
|---|---|
| Reference distance | 7.5mm |
| Measurement range (mm) | ±1.25mm |
| Linearity error | 6.0um |
| Static repeatability | 0.3um |
| Measuring angle | ±12.5° |
| Spot diameter (Large) | 60μm |
| Spot diameter (Small) | 12μm |
| IP protection | IP52 (Standard Level)，IP67 (Bookable) |
| Environment temperature | -40～+85℃ |
| Material | Aluminum 6061 |
| Optical fiber length | 3m(Standard); 5m/10m(Optional) |
| Weight | 46g |

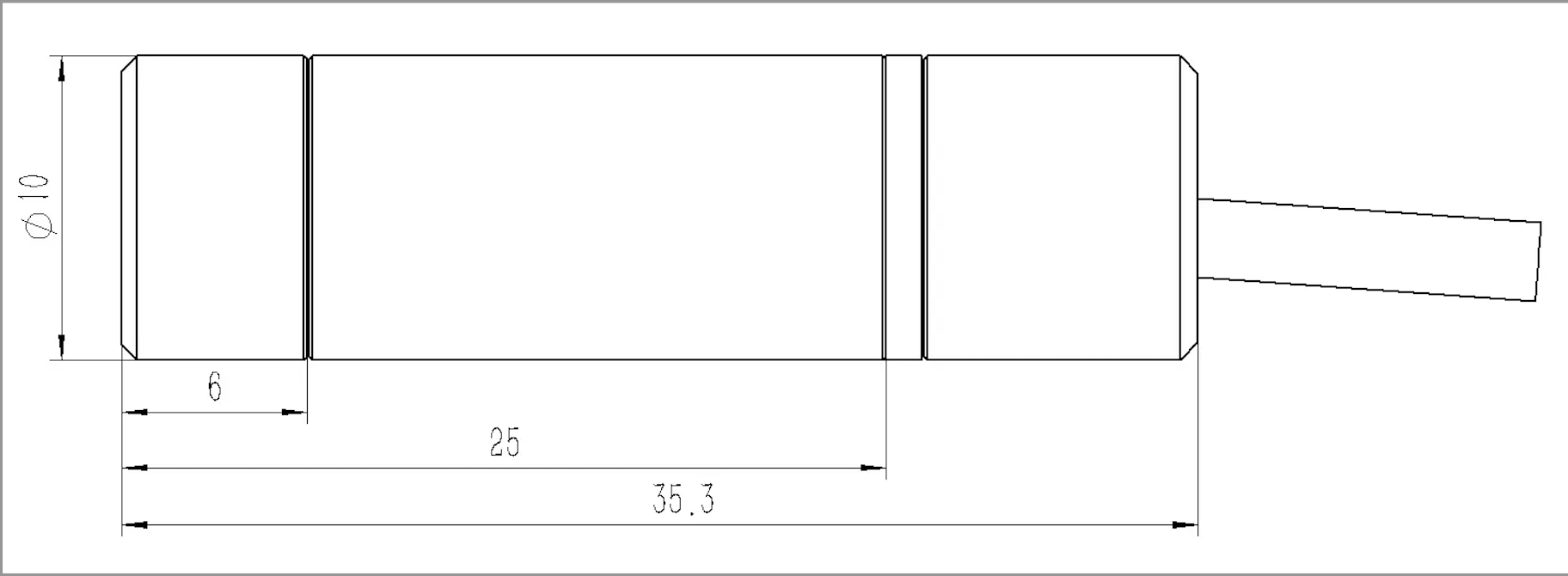

| Outer diameter | 10mm |
