V2FL030
Small size, extensive measuring range, ultra-large measuring angle, high repeatability.
Main > Product > Chromatic Confocal Sensor > V2FL030

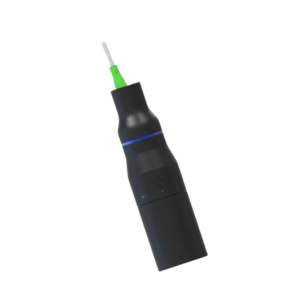

V2FL030
V2FL030 is a non-contact displacement sensor with accuracy up to the nanometer level. It has a stable measurement of metal/ceramic/mirror/glass and other materials. It has a large measuring angle suitable for all working morphologies (deep hole, angle, camber, etc.). This product is ideal for high-temperature and high-pressure operation environments.
| Model Name | V2FL030 |
|---|---|
| Reference distance | 32.5mm |
| Measurement range (mm) | ±3.2mm |
| Linearity error | 2.0μm |
| Static repeatability | 0.23μm |
| Measuring angle | ±13° |
| Spot diameter (Large) | 52μm |
| Spot diameter (Small) | 9.36μm |
| IP protection | IP52 (Standard Level)，IP65 (Bookable) |
| Environment temperature | -40～+85℃ |
| Material | Aluminum 6061 |
| Optical fiber length | 3m(Standard); 5m/10m(Optional) |
| Weight | 153g |

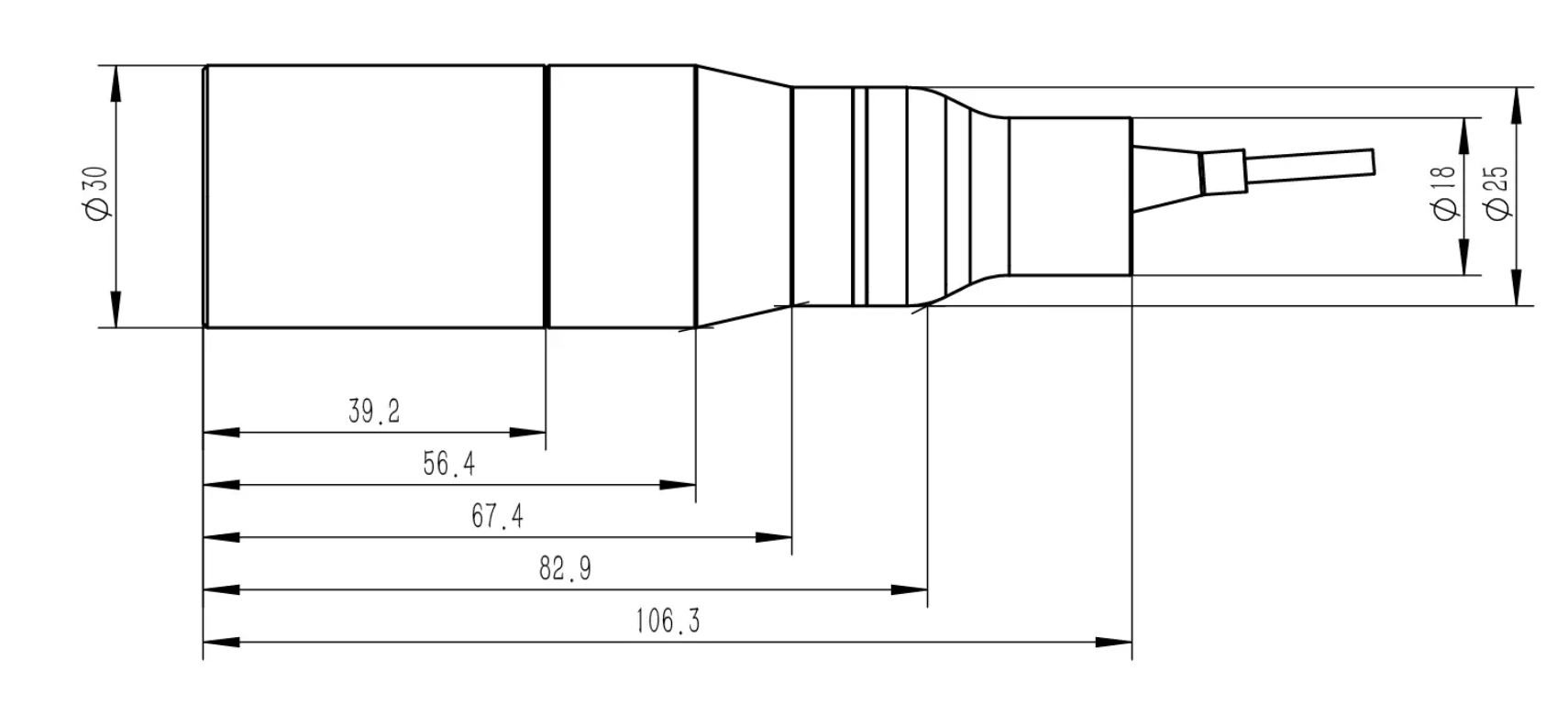

| Outer diameter | 30mm |
