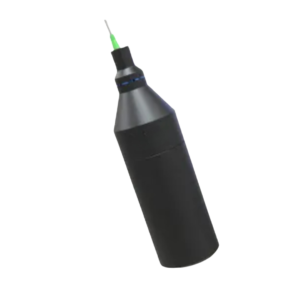

V2FL060
V2FL060 is a non-contact displacement sensor with accuracy up to the nanometer level. It has a stable measurement of metal/ceramic/mirror/glass and other materials. It has a large measuring angle suitable for all working morphologies (deep hole, angle, camber, etc.). This product is ideal for high-temperature and high-pressure operation environments.
| Model Name | V2FL060 |
|---|---|
| Reference distance | 46mm |
| Measurement range (mm) | ±14mm |
| Linearity error | 2.8μm |
| Static repeatability | 0.5μm |
| Measuring angle | ±14° |
| Spot diameter (Large) | 44μm |
| Spot diameter (Small) | 7.92μm |
| IP protection | IP52 (Standard Level)，IP65 (Bookable) |
| Environment temperature | -40～+85℃ |
| Material | Aluminum 6061 |
| Optical fiber length | 3m(Standard); 5m/10m(Optional) |
| Weight | 895g |

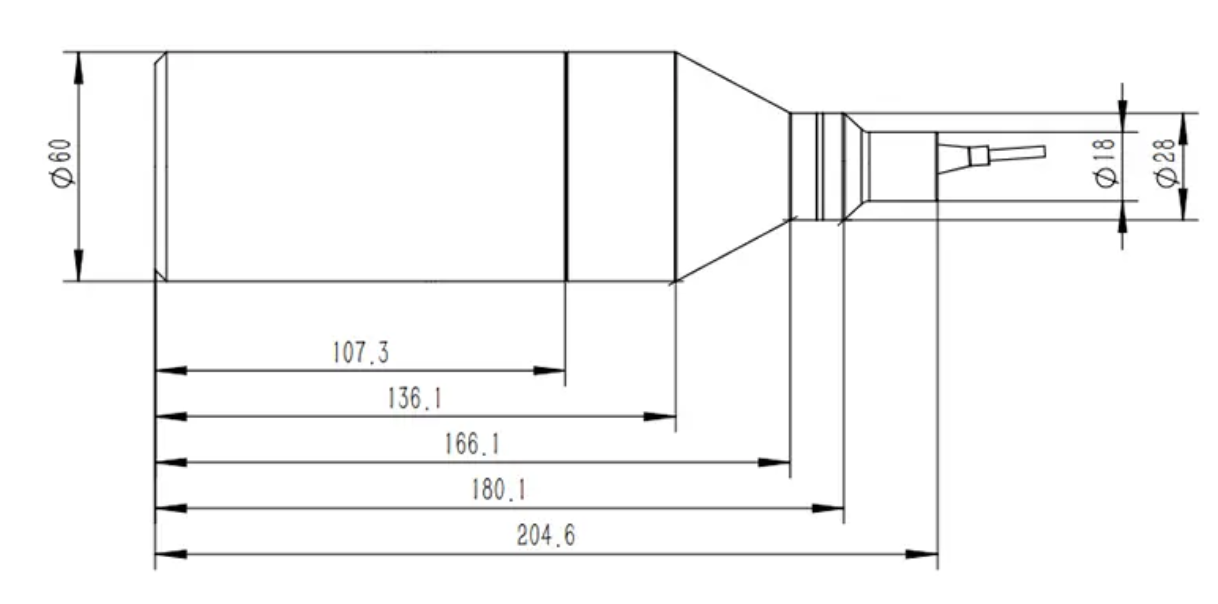

| Outer diameter | 60mm |
