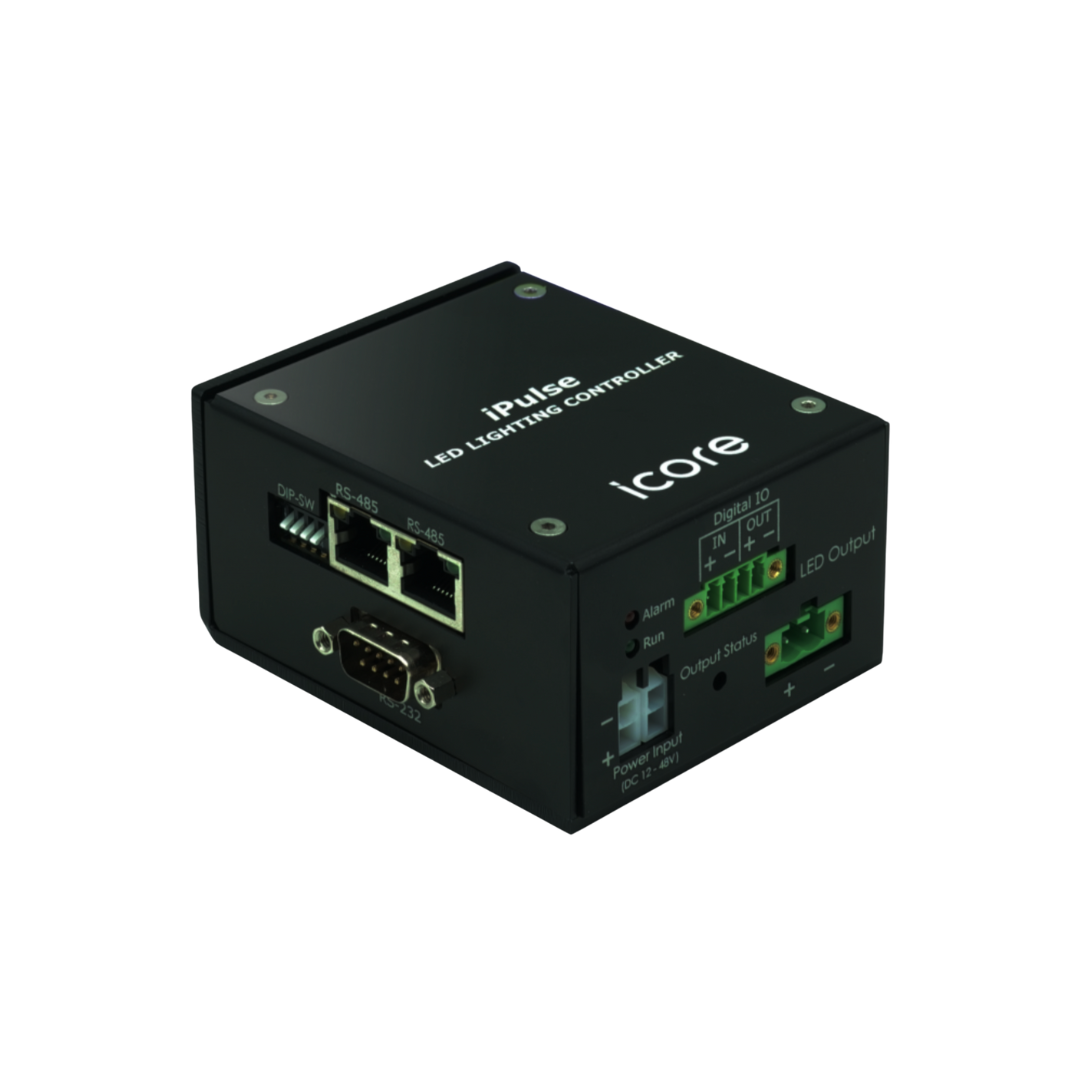

VIP-1P1S-2C
High Power Current Source LED Strobe Controller
Main > Product > Machine Vision Lighting Controller > iCore LED Controllers > Strobe Controller iPulse > VIP-1P1S-2C
VIP-1P1S-2C
High-power, High-speed LED controller with Safe & User-friendly Technology
The Highlight Features
- Current Response > 0.5㎲
- Minimum Pulse Duration 0.5㎲
- Sequence
- Auto Voltage
- Over-driving to maximize LED performance
- Multistrobing imaging function with the sequence function
Application
- Fast-moving object capturing for area scan camera (Flying review)
- Controlling exposure for TDI line scan camera ∙ Where High power LED is required
| Model | VIP-1P1S-2C |
|---|---|
| Interface | RS-485, RS-232 |
| No. of Channel | 1 |
| Min. Pulse Width | 0.5㎲ |
| Max. Switching Frequency | 300KHz |
| LED Voltage | 1V ~ 80V |
| Max. Power (Continuous/Pulse) | 60W / 160W |
| Continuous Current | 2A |
| Pulse Current | 2A |
| Over-Driving | X |
| Sequence control | 0 |
| No. of strobe controllers configurable | Max. 250 (Modbus Protocol) |
