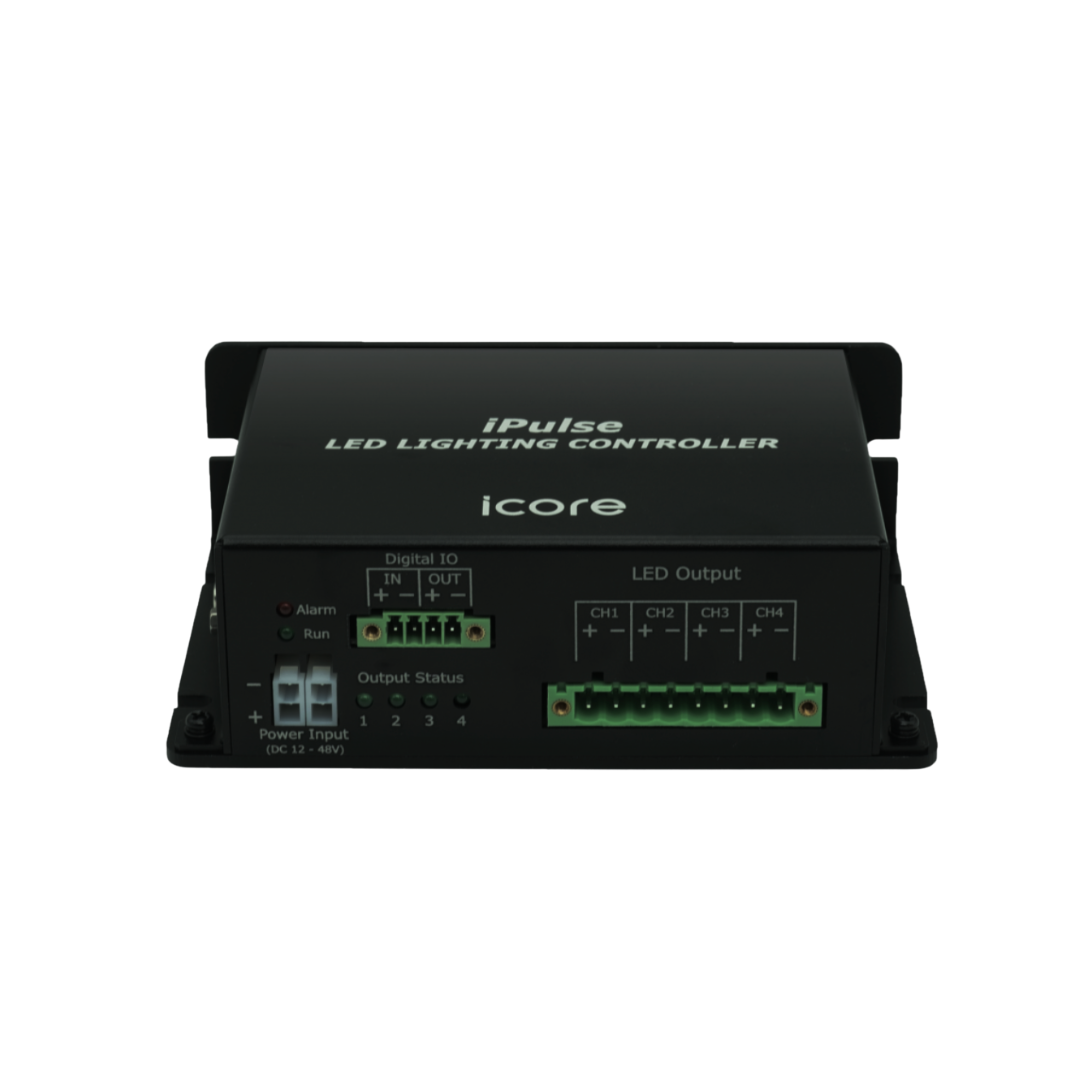

VIP-4P4S-3C
High Power Current Source LED Strobe Controller
Main > Product > Machine Vision Lighting Controller > iCore LED Controllers > Strobe Controller iPulse > VIP-4P4S-3C
VIP-4P4S-3C
High-power, High-speed LED controller with Safe & User-friendly Technology
The Highlight Features
- Current Response > 0.5㎲
- Minimum Pulse Duration 0.5㎲
- Sequence
- Auto Voltage
- Over-driving to maximize LED performance
- Multistrobing imaging function with the sequence function
Application
- Fast-moving object capturing for area scan camera (Flying review)
- Controlling exposure for TDI line scan camera ∙ Where High power LED is required
| Model | VIP-4P4S-3C |
|---|---|
| Interface | RS-485, RS-232 |
| No. of Channel | 4 |
| Min. Pulse Width | 0.5㎲ |
| Max. Switching Frequency | 300kHz |
| LED Voltage | 1V ~ 48V |
| Max. Power (Continuous/Pulse) | 100W / 150W |
| Continuous Current | 3A |
| Pulse Current | 3A |
| Over-Driving | X |
| Sequence control | 0 |
| No. of strobe controllers configurable | Max. 250 (Modbus Protocol) |
