VLP-4830-2S
Strobe Power Supply
Main > Product > Machine Vision Lighting Controller > VST Lighting Controllers > VLP (Over -Drive )Series > VLP-4830-2S
VLP-4830-2S
The Highlight Features
- For 24V lighting.
- Over-drive strobe.
- External control is available via RS-232C compliant.
- 2models for 2CH / 3CH.
- Compact body.
- Din-rail attachable.
- RoHS compliant.
| Model Name | VLP-4830-2S | VLP-4830-3S |
|---|---|---|
| Applicable illumination (rating) Remark *1 | 48V 30W (per 1 channel) *Maximum 20W for Blue and White color of 24V Lightings. *Maximum 7.5W for Red color of 24V Lightings. | 48V 30W (per 1 channel) *Maximum 20W for Blue and White color of 24V Lightings. *Maximum 7.5W for Red color of 24V Lightings. |
| Trigger | Trigger mode: INT./EXT. (Both channels are changed simultaneously.) INT.(Internal trigger): 10.0ms cycle Lighting time 1 to 990μs (to check operation of the product and lighting) EXT.(External trigger): Photo-coupler input, Current: 5mA max., Pulse width: 10μs min., Rise/fall time: 5μs max. (no slow waveforms), Trigger input cycle: 10.0ms min.(When the light pulse width switch set to 990) |
|
| Lighting time | 10μs to 990μs *Set with the light pulse width setting switch and the intensity control knob on the front panel. Lighting Pulse Width: 10 to 990(in 10μs steps for external mode only) |
|
| Trigger input prohibition region | 10.0 times the value set with the light pulse width setting switch or higher (The next trigger will be accepted after the set value multiplied by 10.0 or longer has expired after the previous trigger was accepted.) | |
| Lighting delay | 6μs max. | |
| Over current protection | Output shutdown: 120% min. of rated load. Reset by restarting the control unit after eliminating the cause of the shutdown. | |
| Input Voltage | AC 100 - 240V (rated) ±10% 50/60Hz | |
| Power Consumption | AC100V/1A – AC240V/0.5A | |
| Inrush Current(A) | 30/60(AC115/230V) at cold start | |
| Rated output voltage | 2 or 3 Channels DC48V (between output and GND) | |
| Rated output current | 1.1A (Total for 2 or 3 Channels) | |
| External control (input) | Trigger input MIL connector (MIL-C-83503 compliant), 10-pole For setting the light intensity and lighting mode: e-CON 3-pole |
|
| Insulation resistance/ withstand voltage | Between input and FG (frame ground): AC1500V/minute (10mA), DC500V 50MΩ(min.) | |
| Operating temperature/humidity | Temperature: 0 to 40°C, Humidity: 20 to 85%RH without condensation | |
| Storage temperature/humidity | Temperature: -20 to 60°C, Humidity: 20 to 85%RH without condensation | |
| Cooling method | Natural air cooling | |
| Altitude | 2000m max. | |
| Protective ground | Class I | |
| Pollution level | Pollution level II | |
| Over voltage category | Category II | |
| European Standards (CE Marking) *Under processing | EN61326-1 EN61010-1 |
|
| CE marking | EN 61326-1 EN 61010-1 |
|
| Environmental Regulation | RoHS compliant | |
| Output connector | SMP-03V-BC(JST) 1:output+ 2:NC 3:output- | |

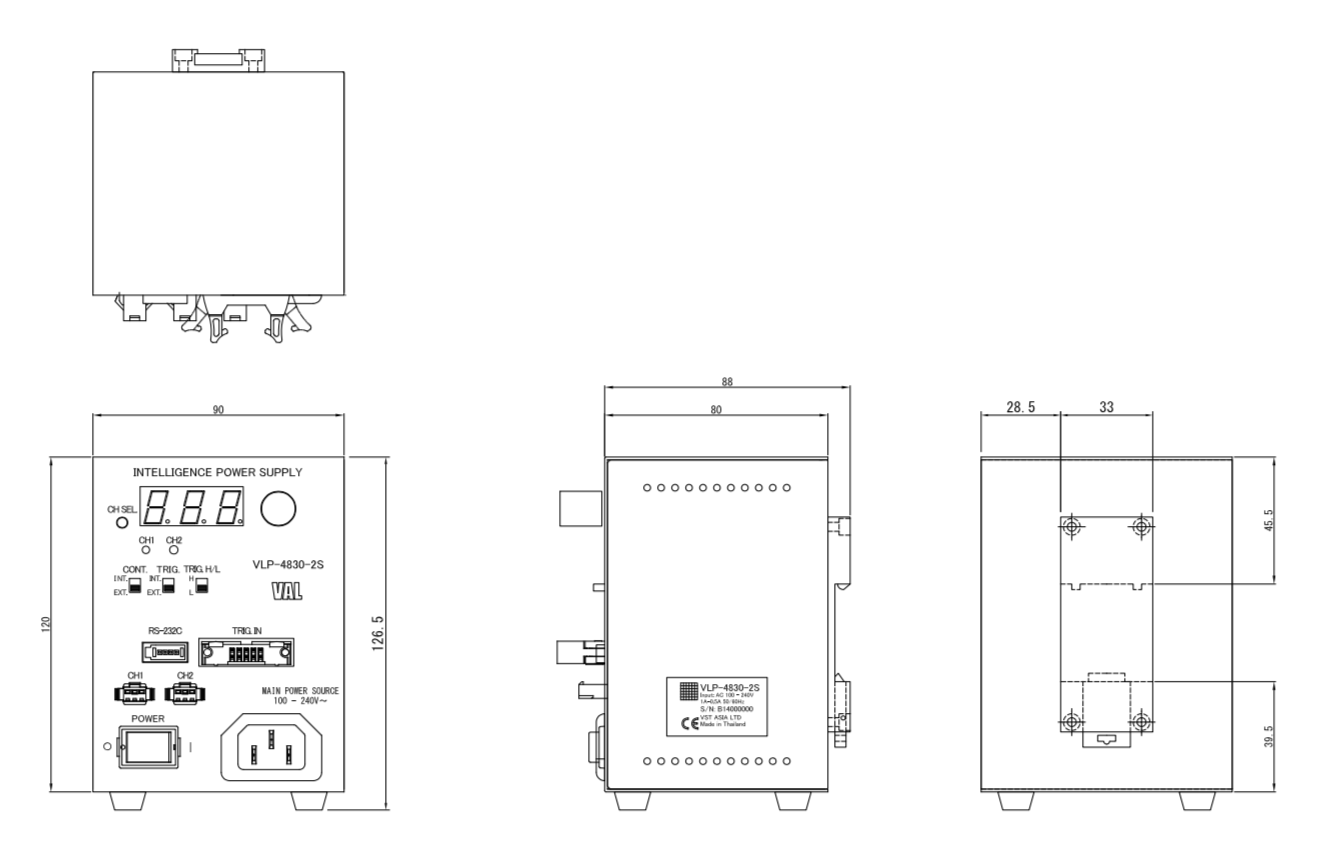

| Dimensions | W90xD88xH126.5mm | |
| Weight | Approx. 790g | |
