The ELiiXA+
THE POWER
AND SPEED OF VISION
V2EMCP1605-BA0

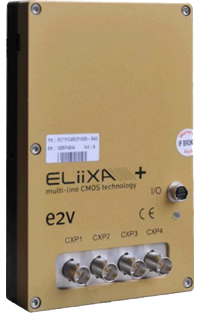

ELIIXA+ 16k/8k
Cmos Multi-Line Monochrome CoaXpress Camera
- Cmos Sensor 4x 16384 Pixels, 5 x 5µm
- Multi-Line structure (1, 2 or 4 lines to adapt the sensitivity)
- Interface : CoaXPress (4x Links)
- Line Rate : Up to 100000 l/s in CoaXPress
- Data Rate : Up to 1,6GB/s in CoaXPress
- Bit Depth : 8, 10 or 12bits
- Flat Field Correction
- Look Up Table
- Low Power Consumption : <16W
- Compliant with Standard Lenses of the Market
