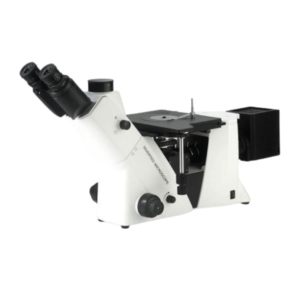

MDS400 Inverted Metallurgical Microscope
| Model Name | MDS400 Inverted Metallurgical Microscope | |||
|---|---|---|---|---|
| Item | Specification | MDS400 | MDS400D | |
| Eyepiece | WF10×／22mm（adjustable） | ● | ● | |
| WF10×／22mm（adjustable，reticule 0.1mm） | ● | ● | ||
| Metallurgical LWD Infinity Plan Objectives | LMPlan FL 5×/0.15 (Semi Apochromatic Objective) | W.D=21.00mm | ● | ○ |
| LMPlan FL 10× /0.30 (Semi Apochromatic Objective) | W.D.= 20.00mm | ● | ○ | |
| LMPlan FL 20× /0.40 (Semi Apochromatic Objective) | W.D.= 15.00mm | ● | ○ | |
| LMPlan FL 50× /0.55 (Semi Apochromatic Objective) | W.D.= 10.00mm | ● | ○ | |
| LPL 80×／0.80 | W.D.= 0.85mm | ○ | ○ | |
| LMPlan FL 100×0.85 (Dry) (Semi Apochromatic Objective) | W.D.= 3.00mm | ○ | ○ | |
| Metallurgical LWD Infinity Plan Objectives for Bright & Dark Field | M PLAN 5×／0.13 BD | W.D=7.30mm | ● | |
| M PLAN 10×／0.25 BD | W.D.= 11.5mm | ● | ||
| M PLAN 20×／0.40 BD | W.D.= 5.60mm | ● | ||
| M PLAN 50×／0.70 BD | W.D.= 1.60mm | ● | ||
| Seidentopf Trinocular Head | Inclined 30°, interpupilary distance: 48-76mm Light distribution (both):100: 0（100% for eyepiece） 80:20（80% for trinocular head,and 20% for eyepiece） | ● | ● | |
| Nosepiece | Quintuple | ● | ||
| Quadplex （specially for bright /dark field objectives） | ● | |||
| Mechanical Stage | Stage size: 210 mm×180mm, Moving range:50×50mm , Scale : 0.1mm | ● | ● | |
| Coaxial Coarse and Fine Focusing unit | Coarse stroke: 10mm, Fine stroke per rotation: 0.2mm, fine division 2 μm. | ● | ● | |
| Polarizing Unit | Polarizer /Analyzer | ● | ● | |
| Illumination | 12V/50W Halogen（Input voltage：100V～240V） | ● | ● | |
| 5WLED lamp (Input voltage：100V～240V) | ○ | ○ | ||
| Filter | Blue | ● | ● | |
| Green/ Amber/ Grey | ○ | ○ | ||
| C-mount | 1×/0.75×/0.5×C-Mount (focus adjustable) | ○ | ○ | |
| Adaptor for Digital Photograph | Use for CANON／NIKON／OLYMPUS etc. | ○ | ○ | |
Note: “●”In Table Is Standard outfits, “○” Is Optional Accessories.
Packing Size:520mm×475mm×285mm Gross Weight: 12 kgs Net Weight: 10kgs
| Objective | N.A. | Working Distance(mm) | MDS400 | MDS400D | |
|---|---|---|---|---|---|
| Metallurgical LWD Infinity Plan Objectives | LMPlan FL 5× (Semi Apochromatic Objective) | 0.15 | 21.00 | ● | |
| LMPlan FL 10× (Semi Apochromatic Objective) | 0.30 | 20.00 | ● | ||
| LMPlan FL 20× (Semi Apochromatic Objective) | 0.40 | 15.00 | ● | ||
| LMPlan FL 50× (Semi Apochromatic Objective) | 0.55 | 10.00 | ● | ||
| LPL 80× | 0.80 | 0.85 | ○ | ||
| LMPlan 100×（Dry） (Semi Apochromatic Objective) | 0.85 | 3.00 | ○ | ||
| Metallurgical LWD Infinity Plan Objectives for Bright/Dark Field | M PLAN 5× BD | 0.13 | 7.30 | ● | |
| M PLAN 10× BD | 0.25 | 11.50 | ● | ||
| M PLAN 20× BD | 0.40 | 5.60 | ● | ||
| M PLAN 50× BD | 0.70 | 1.60 | ● |
