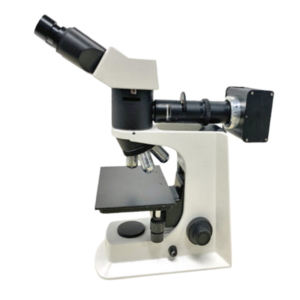

MIT200 Metallurgical Microscope
| Model Name | MIT200 Metallurgical Microscope | ||
|---|---|---|---|
| Items | Specification | Outfits | |
| Eyepiece | WF10X/20mm (High eyepoint) | ● | |
| WF10X/20mm(H, adjustable Focus,Reticule 0.1mm) | ● | ||
| Long Working Distance Infinity Plan Objective (no cover glass) | LPL 5×/0.13 | W.D=16.04mm | ● |
| LPL 10×/0.25 | W.D=18.48mm | ● | |
| LPL 20×/0.4 | W.D=8.35mm | ○ | |
| LPL 50×/0.7 | W.D=1.95mm | ● | |
| LPL 80×/0.8 | W.D=0.85mm | ○ | |
| LMPlan FL 100×／0.85(Dry) | W.D=3.00m | ○ | |
| Swiveling Seidentopf Binocular Head | Inclined 30°,Rotatable 360°, Interpupilary Distance: 48 -75mm | ● | |
| Swiveling Seidentopf Trinocular Head | Inclined 30°,Rotatable 360°, Interpupilary Distance: 48 -75mm Light Distribution 80:20 | ○ | |
| Nosepiece | Quadplex | ● | |
| Mechanical Stage | Stage Size: 200×140mm, Travel : 76mm×52mm Coaxial Coarse and Fine Focusing Knobs | ● | |
| Reflection Illumination | 5WLED Warm lamp (Input voltage：100V～240V) | ● | |
| Filter | Five-hole filter unit(blue, green, amber, grey, empty) | ● | |
| Polarizing Attachment | Analyzer/ Polarizer | ○ | |
| C-mount | 1× | ○ | |
| 0.5X （Focus Adjustable） | ○ | ||
| Image System | USB2.0 3MP digital camera for trinocular head (measurement software) | ○ | |
| USB2.0 5MP digital camera for trinocular head (measurement software) | ○ | ||
| USB3.0 12MP digital camera for trinocular head (measurement software) | ○ | ||
9.7” LCD touch screen tablet camera for trinocular head (measurement software) | ○ | ||
Note: “●”In Table Is Standard outfits, “○” Is Optional Accessories.

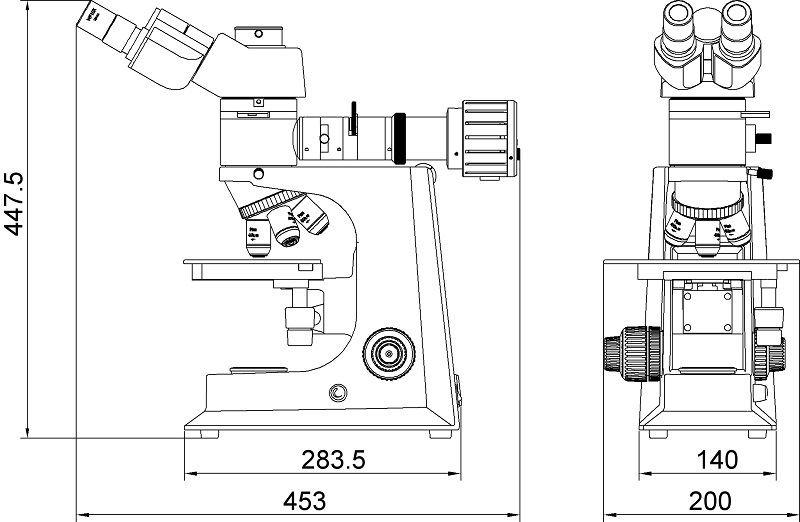

MIT200 Packing Size: 570mm×275mm×450mm Gross Weight: 10.5 kgs Net Weight: 8 kgs
