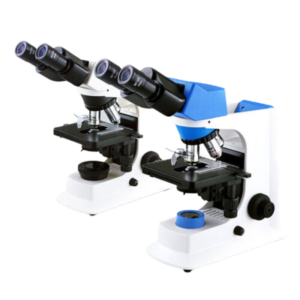

SMART Series Biological Microscope
| SMART Series Biological Microscope | |||||
|---|---|---|---|---|---|
| Items | Specification | SMART-1 | SMART-2 | SMART-3 | SMART-4 |
| Eyepiece | WF 10X-18mm | ●● | |||
| WF 10X- 20mm | ●● | ●● | ●● | ||
| Finity Achromatic Objective | 4X | ● | |||
| 10X | ● | ||||
| 40X(S) | ● | ||||
| 100X/1.25 (Oil) (S) | ● | ||||
| Finity Plan Objective | 4X | ● | |||
| 10X | ● | ||||
| 40X(S) | ● | ||||
| 100X/1.25 (Oil) (S) | ● | ||||
| Infinity E-Plan Objectives | 4X | ● | |||
| 10X | ● | ||||
| 40X(S) | ● | ||||
| 100X/1.25 (Oil) (S) | ● | ||||
| Infinity Plan Objectives | 4X | ● | |||
| 10X | ● | ||||
| 40X(S) | ● | ||||
| 100X/1.25 (Oil) (S) | ● | ||||
| Plan 20X | ○ | ○ | |||
| Plan 60X (S) | ○ | ○ | |||
| Butterfly Seidentopf Binocular Head | Inclined 30°,Rotatable 360°, Interpupilary Distance 48-75mm | ● | ● | ● | ● |
| Butterfly Seidentopf Trinocular Head | Inclined 30°,Rotatable 360°, Interpupilary Distance 48-75mm, Light Distribution 20:80 | ○ | ○ | ○ | ○ |
| 3MP/5MP Digital Head 1/2’’CMOS color sequential scanning. USB2.0 Light Distribution: 20:80 | ○ | ○ | ○ | ○ | |
| Nosepiece | Quadplex | ● | ● | ● | ● |
| Quintuple | ○ | ○ | ○ | ○ | |
| Mechanical Stage | Stage Size: 145 mm×140mm Travel: 76mmX52mm, Scale: 0.1mm Coaxial Coarse and Fine Focusing Knobs Travel Range: 26mm, Scale: 2um Two Slide Holder | ● | ● | ● | ● |
| Rackless(Integrated) stage, size: 140×135mm,Travel range: 75×35mm, Two-slide holder | ○ | ○ | ○ | ○ | |
| Condenser | Abbe N.A. 1.25(Iris Diaphragm) | ● | ● | ● | ● |
| Illumination | 3W-LED Illumination Systems | ● | ● | ● | ● |
| 12V/20W Halogen Lamp | ○ | ○ | ○ | ○ | |
| 6V/30W Halogen Lamp | ○ | ○ | ○ | ||
| Field Diaphragm | ○ | ○ | ○ | ○ | |
| Dark Field Condenser | Dry, apply to 4X - 40X objective | ○ | ○ | ○ | ○ |
| Polarizing Attachment | Analyzer/Polarizer | ○ | ○ | ○ | ○ |
| Independent phase contrast unit | 10X /20X /40X /100X | ○ | ○ | ||
| Fluorescence Attachment | Epi fluorescence unit ( six-hole disc media which can be fixed with Uv /V/B/G and another filters) ,100W mercury lamp. | ○ | ○ | ||
| Epi fluorescence unit ( six-hole disc media which can be fixed Uv /V/B/G), 5W-LED fluorescence lamp. | ○ | ○ | |||
| Filter | Blue /Green /Yellow | ○ | ○ | ○ | ○ |
| C-Mount | 1X/ 0.5X/0.75X （Focus adjustable） | ○ | ○ | ○ | ○ |
| Mirror | ○ | ○ | ○ | ○ | |
| Wire Winding Device | ○ | ○ | ○ | ○ | |
Note: “●”In Table Is Standard outfits, “○” Is Optional Accessories.
Packing Size: 390mm×280mm×450mm Gross Weight: 7.5 kgs Net Weight: 6.5 kgs
