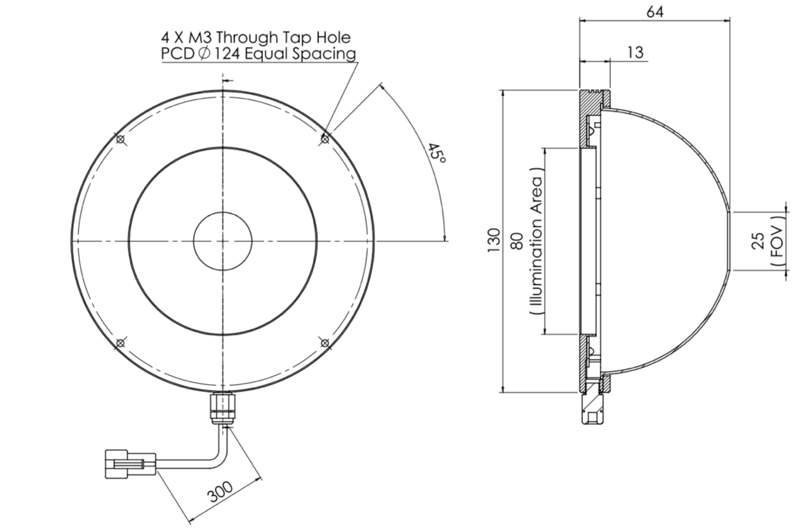

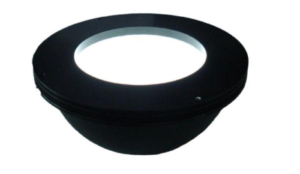

V2DM-Si100-W  is a Dome Light designed for machine vision application to give a very bright diffused omni-directional light to create a uniformed shadow-free illumination area . It has an external  Diameter of 130 mm and opening Diameter  of 25 mm, an illumination area of 85 mm in diameter. It comes in 1 spectrum  White. V2DM-Si100-W provide a super bright lighting, avoid stare at exposured lighting when operation. Useful for application where needs to be visible in long distance, recommended to use as strobe lighting to perform high brightness lighting with longer life span.

Ordering Information

With Resistor version :        V2DM-Si100-W

Without Resistor version :V2DM-Si100- W-O

Example : Model for White  version with no resistor : “V2DM-Si100-W-O”,   Model for White version with resistor “V2DM-Si100-W”
