BOPIXEL Line Scan Camera

TDI Series – High-Speed Line Scan Camera

The TDI Series high-speed line scan camera, equipped with a GPixel sensor, offers horizontal resolutions ranging from 2K to 16K with pixel sizes between 3.5 μm and 7 μm. The monochrome mode supports both single-line and dual-line configurations, while the color mode enables true 3-line color output. When operating on a CXP-12 × 4 Lane interface, the monochrome mode achieves a maximum scan rate of 72-200 kHz, while the color mode supports up to 66.7 kHz image acquisition. This makes it an ideal solution for high-resolution applications requiring high-speed scanning.

Feature Highlights

• GPixel GLT5009BSI sensor
• Supports 256 TDI (Time Delay Integration) for enhanced sensitivity
• 4-Lane CoaXPress interface with PoCXP support
• CXP-12 compatible, delivering a transfer rate of up to 529 kHz
• 9K resolution with 5 μm pixel size
• Ultra-low power consumption with a fanless design for efficient thermal management

Line Scan Camera

Designed for high-speed and high-resolution imaging, the BoPixel line scan camera series features a GPixel sensor with horizontal resolutions ranging from 2K to 16K and pixel sizes between 3.5 µm and 7 µm. The monochrome mode supports both single-line and dual-line configurations, while the color mode delivers true 3-line RGB output. With CXP-12 × 4 Lane output, the monochrome mode achieves speeds of up to 72–200 kHz, and the color mode reaches 66.7 kHz, making it an excellent choice for applications requiring rapid, high-precision scanning.

Feature Highlights

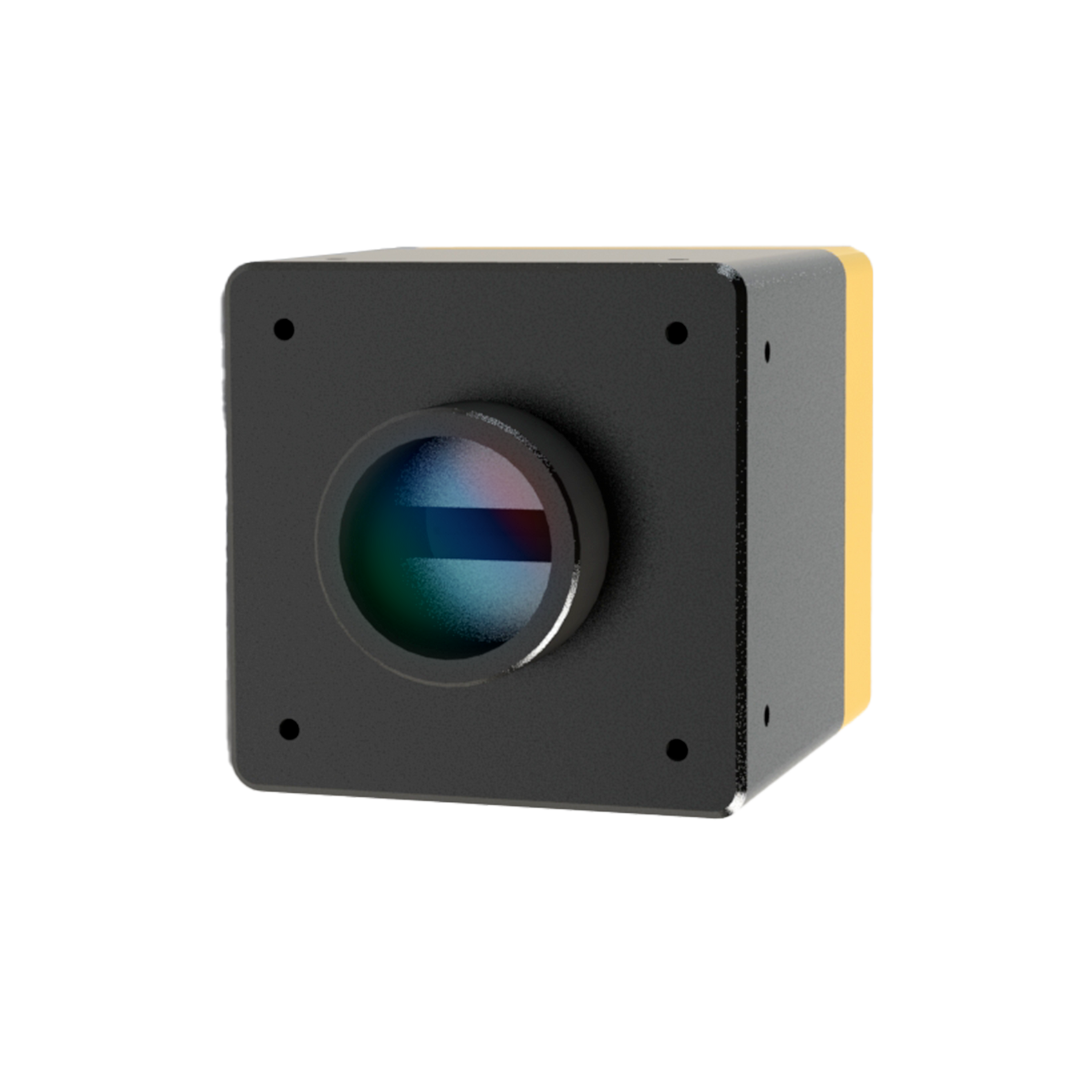

SWIR 2K Line Scan Camera

Featuring a 2K high-resolution SWIR image sensor, this camera delivers exceptional imaging performance in the 950nm–1700nm spectral range. With a maximum line rate of 40 kHz and a flexible GigE interface, it ensures seamless integration for high-speed, high-precision applications in industrial and scientific imaging.

Feature Highlights
