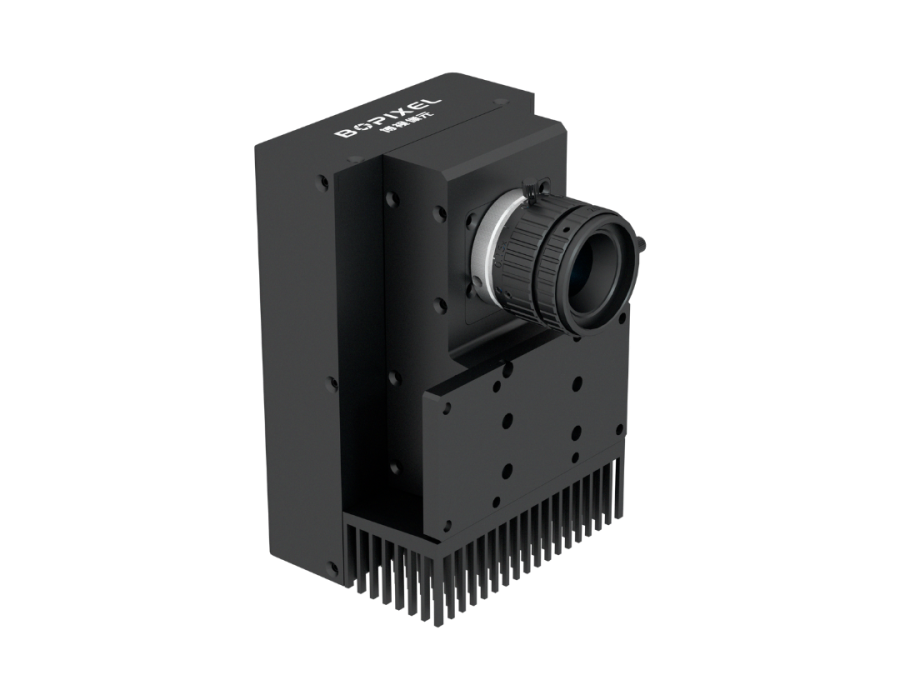

BOPIXEL OPR607 Series
High precision programmable structured light system with resolution of 1M-4M， Multil ayer broadband coated glass lens, extremely high MTF, distortion<0.05%，All metal structure design and excellent temperature control system that can solve the drift effect，Large dynamic range of projection brightness, easy to accurately measure black and shiny surfaces，Unique Scheimpflug shift axis optical design, excellent oblique projection ability in high depth of field，256M high-speed Flash and various control interfaces
Feature Highlights
- Minimum exposure 1us
- 77Gb/s High-speed Computing Capability
- High precision and reliable 3D algorithms
- Adapt to Sheimpflug lenses and flexibly design depth of field
- 2-Megapixel, 1/16 sub-pixel high precision, see more details
- Ultra high detection rate, up to 3462Hz at full resolution
- High Dynamic Range Imaging (HDR), capable of capturing both high and low brightness materials simultaneously
| Brand | Model | Working Distance（mm）MIN | Working Distance（mm）TYP | Working Distance（mm）MAX | Projection field of view (mm) | Depth of field (mm) | Throw Ratio | Accuracy（μm） | Mode | Dimensions（mm) | Distortion | Brightness | Light Source |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| BOPIXEL | V2-OPR607200 | 150 | 200 | 500 | 88X53 | ±10 | 2.3 | 33 | orthograph | 112.5×76×108 | <0.05% | 100 | B/W |
