BOPIXEL TDI Series

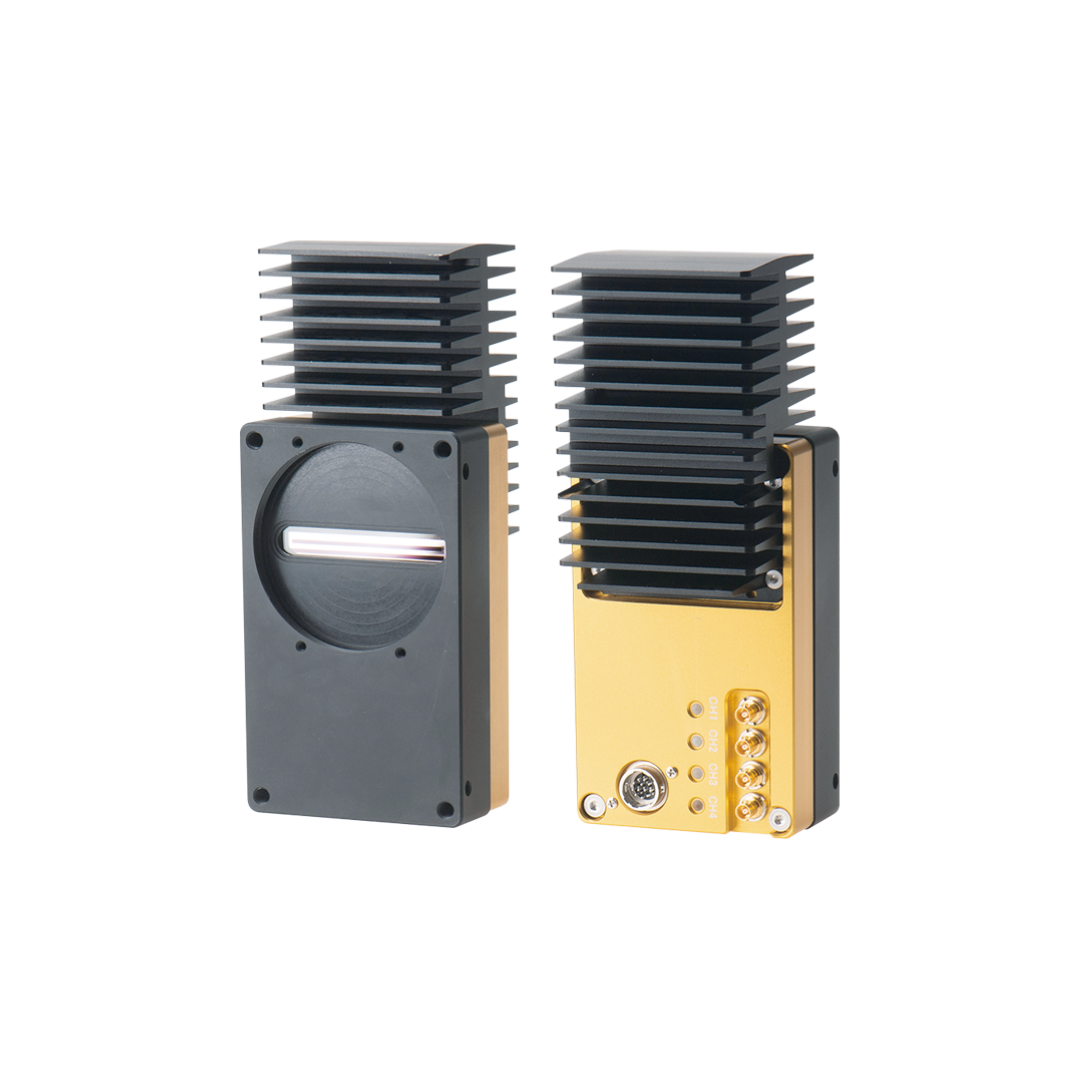

The TDI Series high-speed line scan camera, equipped with a GPixel sensor, offers horizontal resolutions ranging from 2K to 16K with pixel sizes between 3.5 μm and 7 μm. The monochrome mode supports both single-line and dual-line configurations, while the color mode enables true 3-line color output. When operating on a CXP-12 × 4 Lane interface, the monochrome mode achieves a maximum scan rate of 72-200 kHz, while the color mode supports up to 66.7 kHz image acquisition. This makes it an ideal solution for high-resolution applications requiring high-speed scanning.
Feature Highlights
- Pixel GLT5009BSI sensor
- Supports 256 TDI (Time Delay Integration) for enhanced sensitivity
- 4-Lane CoaXPress interface with PoCXP support
- CXP-12 compatible, delivering a transfer rate of up to 529 kHz
- 9K resolution with 5 μm pixel size
- Ultra-low power consumption with a fanless design for efficient thermal management
| Brand | Model | Resolution | Spectrum | Sensor | Frame Rate | Pixel Size (um) |
|---|---|---|---|---|---|---|
| BOPIXEL | V2-BL-GM9K12X4(Water cooling) | 9K | mono | GLT5009BSI | 529kHz | 5.0 |
| BOPIXEL | V2-BL-GM9K12X4 | 9K | mono | GLT5009BSI | 529kHz | 5.0 |
