CIS VCC-5CXP4R
5M resolution camera with CoaXPress interface
Main > Product > Area Scan camera > CoaXpress Cameras > VCC-5CXP4R

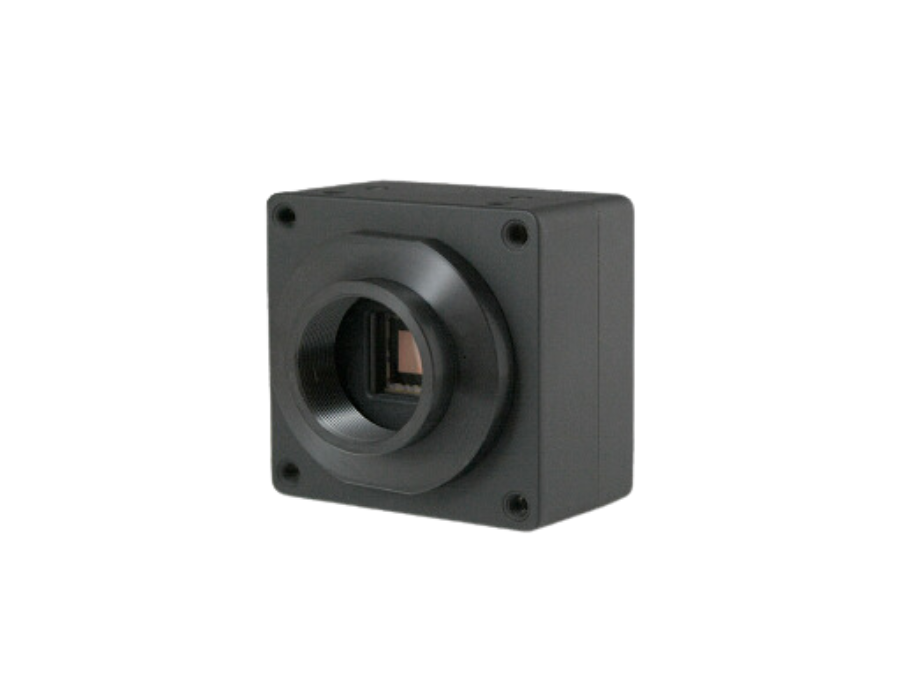

CIS VCC-5CXP4R
The VCC-5CXP4R revolutionizes precision imaging, boasting a remarkable 5M pixels resolution and a CoaXPress interface. Compact in size at 55mm(H) x 55mm(W) x 30mm(D), this powerhouse complies with CoaXPress Version 1.1.1, offering a cutting-edge solution for Machine Vision applications. Packed with essential functions such as trigger shutter, ROI, H&V flip, defective pixel correction, Gain, and Gamma correction, the VCC-5CXP4R stands as a must-have for various FA/Machine Vision inspection systems. Versatile and high-performing, it sets a new standard for precision imaging, promising to elevate your visual solutions to unprecedented levels. Embrace the future of imaging with the VCC-5CXP4R.
| Model | VCC-5CXP4R |
|---|---|
| Color/Mono | Color |
| Resolution | 5M（2464×2056） |
| fps@Max. Resolution | 108.8fps(CXP3×2), 163.4fps(CXP6×2) |
| Output Format | Mono 8/10/12 |
| Sensor Model Name | Pregius IMX250 |
| Shutter Type | Global Shutter |
| Imager Size | 2/3 CMOS |
| Effective Pixels | 2464×2056 |
| Pixel Size (μm) | 3.45×3.45 |
| Pixel Clock (MHz) | 74.25MHz |
| Power Consumption | 4.6 W (CXP-6×2) |
| Power Requirement | PoCXP/EXT |
| Min. Illumination | TBD |
| Sensitivity | TBD 2000lx (Shutter 5001us、Gain 1dB) |
| Shutter Variable Range | 15μs～200ms |
| Interface | CXP-3/6 |
| Lens Mount | C Mount |
| Weight (g) | 140g |
| Dimensions (W) x (H) x (D)mm | 55×55×30 |
