CIS VCC-5CXPHSR-VV

VCC-5CXPHSM

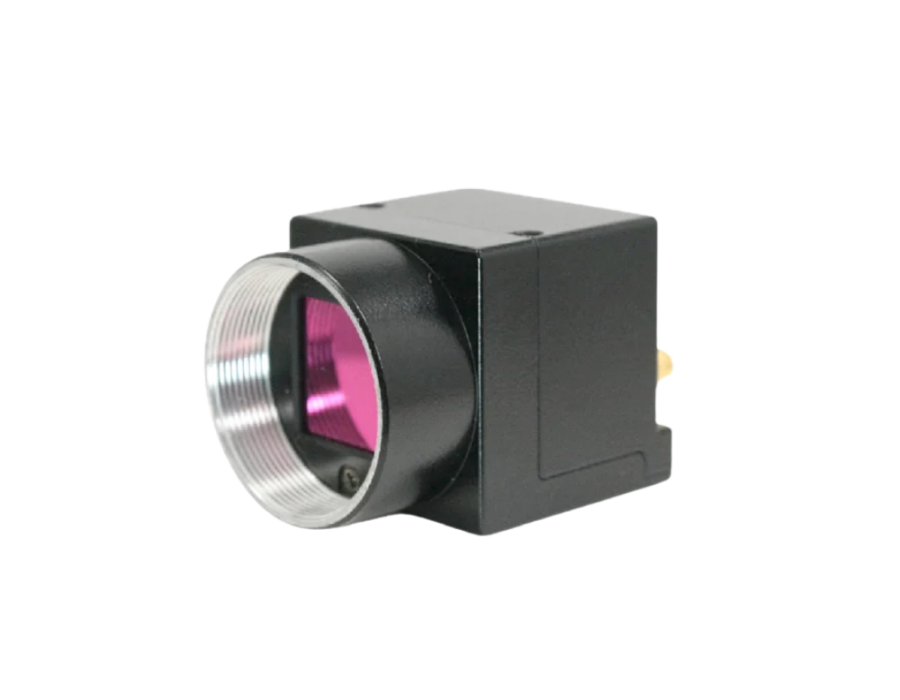

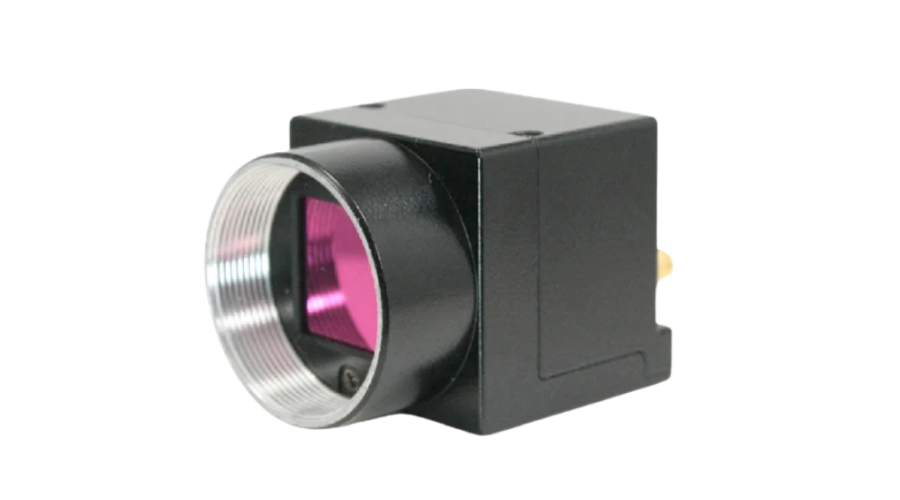

This VCC-5CXPHSR-VV camera is compact, cost-effective CoaXPress interface camera featuring a 2/3-inch CMOS sensor. It offers a 29 mm square body size, 218 fps high frame rate, external trigger mode, and ROI/binning capabilities, making it ideal for FA and machine vision applications.



Features

  • Compact 29 mm cubic in size
  • Global shutter CMOS sensor
  • CoaXPress CXP-12 single lane interface
  • ROI and binning functionality
  • External trigger mode support
  • GenICam compatible
  • C-mount
Vital Vision Pte Ltd logo 2022
ModelVCC-5CXPHSMVCC-5CXPHSR
Color/MonoMonoColor
Resolution5M5M
fps@Max. Resolution218fps218fps
Sensor Model NameGMAX3405GMAX3405
Shutter TypeGlobal ShutterGlobal Shutter
Imager Size2/3 CMOS2/3 CMOS
Effective Pixels2448(H) × 2048(V)2448(H) × 2048(V)
Pixel Size (μm)3.4 × 3.43.4 × 3.4
Power RequirementPoCXPPoCXP
InterfaceCXP-12CXP-12
Lens MountC MountC Mount
Weight (g)TBDTBD
Dimensions (W) x (H) x (D)mm29 x 29 x 2929 x 29 x 29
