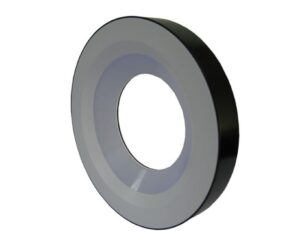

Diffused Cone Ring Light V2KR-Si100-UV
Diffused Cone Ring Light V2KR-Si100-UV is a ring-shaped light with overhead diffused light which eliminates glares and shadows for thoroughly even illumination on shiny surfaces. The V2KR generates highly homogenous and slightly angled illumination towards the center, ideal for inspecting shiny objects and highlighting edges. The small height of this series is also appropriate for space-saving solutions.
It illuminates around the periphery of the light diffusion plate which scatters and reflects within the plate to create a uniform and diffused light, which illuminates from directly overhead. The small angled toward the middle illumination allows more focus on the workpiece and eliminates glare effectively. This light comes with diffusion filter by default.
The V2KR are commonly used in coating inspection and burr inspection of the molding, soldering inspection, inspection on shiny materials, detecting grooves on the interior part of an object and circuit boards inspections. The small height of the design make the series ideal for installation where available space are limited.
This product has UV Lighting is ideal to activate the fluorescent object. This product has UV Lighting is ideal to activate the fluorescent object. Vital Vision provides more than 10 series of UV lighting with wavelength 375nm and 400nm.
With Resistor version : V2KR-Si100-UV24
Without Resistor version : V2KR-Si100-UV24-O
Example : Model for Blue version with no resistor : “V2KR-Si100-UV24“, Model for UV version with resistor “V2KR-Si100-UV24-O“
