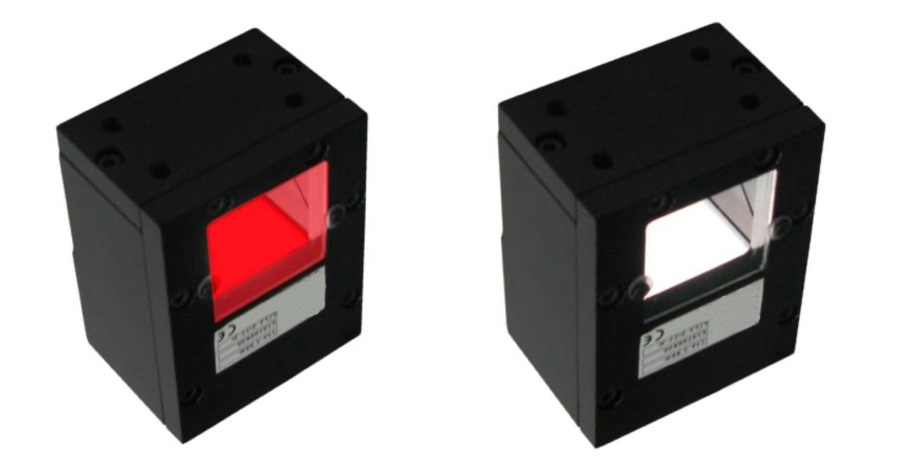

V2FV-i25
Uniform light that runs perpendicular with camera axis across the entire field of view
Main > Product > Machine Vision Lighting > External Coaxial Light V2FV Series > V2FV-i25
V2FV-i25
The coaxial light is a uniform light that runs perpendicular with camera axis across the entire field-of-view makes on-axis illumination system. The light illuminates from the coaxial side of a lens via a partial mirror. The LEDs illuminates on the mirror oriented at 45 and creates a reflection of the object.
Major Applications:
This is suitable to apply on flat object surface with specular or mirror surface, Wafer level or dice positioning guiding, or pick and place process applications, Alignment mark on the board and Inspection for cosmetic applications, scratches on object, dented or micro slug.
Illumination Structure:
A half mirror/ Beam Splitter prism aligns the high-intensity, even light from the LED array to the same optical axis as the lens.

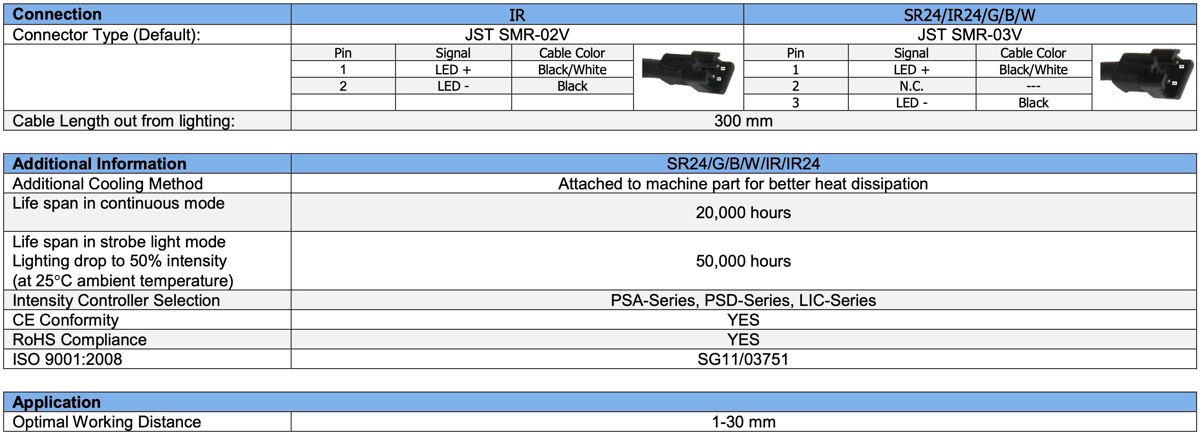

Ordering Information
Models with Resistors : V2FV-i25-SR24/IR/IR24/G/B/W
Models without Resistors : V2FV-i25-SR24/IR/IR24/G/B/W-O
Example : Model for Blue version with no resistor : “V2FV-i25-B-O”, Model for Green version with resistor “V2FV-i25-G”
