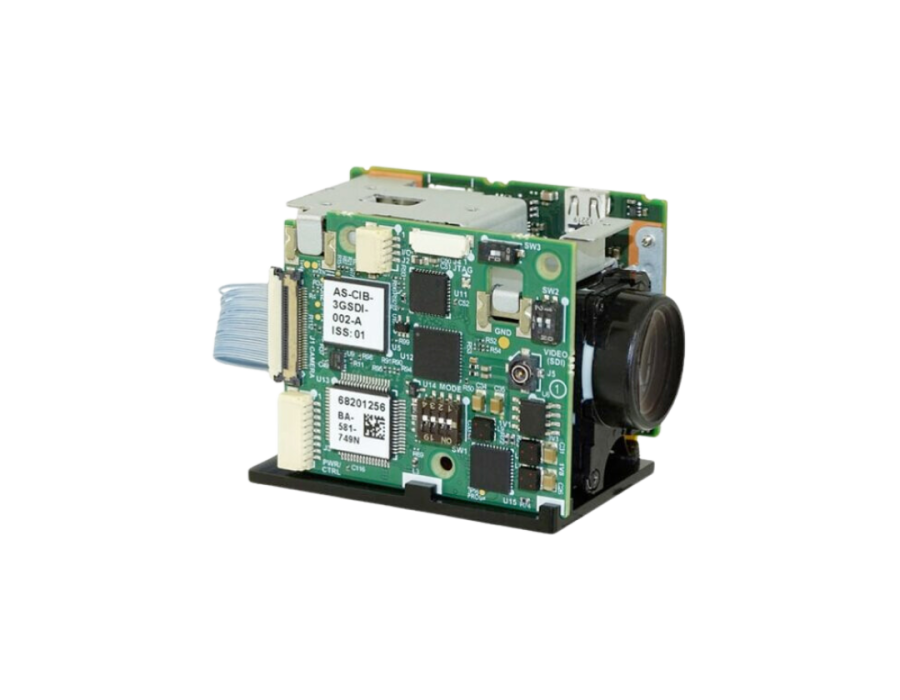

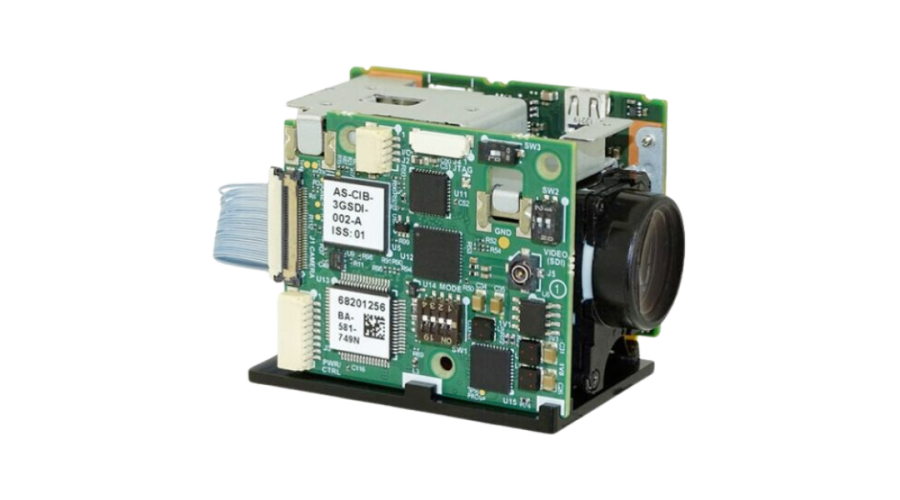

Harrier 10x AF-Zoom 3G-SDI/HDMI
- HD/3G-SDI and HDMI camera solution based on Tamron MP3010M-EV
- Lightweight and compact 5 Megapixel camera
- 10x optical zoom, 16x digital zoom
- High-sensitive 1/2.8-type Sony IMX335 STARVIS CMOS sensor
- Effective number of pixels approx. 5,140,000
- Supports all HD modes up to: 1080p/60
- Shutter speed 1/1 to 1/10,000 sec
- HD-VLC™ output mode for long cable length applications
- Simultaneous display of SDI, HDMI and high-quality analog video supported
- Selectable TTL/RS-232/RS-485 comms port for camera control/communication
- Single VISCA programmable 3.3V PWM output channel
| Model | Harrier 10x AF-Zoom 3G-SDI/HDMI |
|---|---|
| Image sensor | 1/2.8-type Sony IMX335 STARVIS CMOS sensor (progressive scan) |
| Effective no. of pixels | approx. 5.14M pixels |
| Pixel output (H x V) | 1920 x 1080; 1280 x 720 |
| Video format (HD) | 1080p/60, 1080p/59.94, 1080p/50, 1080p/30, 1080p/29.97, 1080p/25, 720p/60, 720p/59.4, 720p/50, 720p/30, 720p/29.97, 720p/25 Simultaneous LVDS and HDMI output. |
| Signal system (SD) | NTSC/PAL |
| Minimum illumination | 0.1 Lux (1/30sec, F1.8, 50%, Color, Typical) 0.025 Lux (1/30sec, F1.8, 50%, B&W, Typical) |
| Recommended illumination | 100 Lux to 100,000 Lux |
| S/N ratio | More than 50dB |
| Gain | Auto / Manual |
| Shutter speed | 1/1 to 1/10,000 sec |
| Sync system | Internal |
| Exposure compensation | -12dB to +12dB (total 13 steps) |
| Backlight compensation | ON / OFF |
| Gamma | 4 gamma curves (standard, straight, narrow, wide) |
| Aperture control | 16 steps |
| White balance | ATW1 (Narrow), ATW2 (Wide), One push, Manual (B, R), Indoor, Outdoor |
| AE (Auto exposure mode) | Auto, Manual, Priority Mode (shutter / iris) |
| Lens (wide to tele) | 10x optical zoom, f=3.3 ~ 33mm, F1.8 ~ 3.4 |
| Zoom mode | Standard / Variable / Direct |
| Zoom movement speed (wide to tele) | 1.7 sec (Focus Tracking ON) |
| Digital zoom | Up to 16x |
| Focusing system | Auto, Manual, One Push, AF Sensitivity |
| Horizontal viewing angle (wide to tele) | 59.2° (w) ~ 6.7° (t) (except when EIS is operated) |
| Minimum object distance (wide to tele) | Visible light: 10mm (wide) ~ 800mm (tele) 850nm: 10mm (wide) ~ 1200mm (tele) |
| Camera Functions | |
| EIS (Electronic Image Stabilization) | OFF/ON |
| Wide-dynamic range (Gamma) | OFF/ON |
| Day/Night (ICR) | OFF/ON/AUTO |
| Defog | OFF/ON (Level: 1~3) |
| Noise reduction (3D + 2D) | OFF/ON (Level: 1~5) |
| Privacy zone mask | Up to 8 places |
| Slow shutter | OFF/ON (max 1 sec) |
| Picture effects (black white) | OFF/ON |
| Picture freeze | OFF/ON |
| Electronic flip (e-flip) | OFF/ON |
| Mirror image | OFF/ON |
| Temperature readout | Available |
| Title display | OFF/ON (20 characters/line, max. 12 lines) |
| Connector Specification Harrier 3G-SDI Camera Interface Board | |
| KEL30 Connector (J1) | The interface board is fitted with a 30-way miniature connector to link to the video output connector on the camera. Connector type: KEL USL00-30L. Mating cable: A 30-way micro coaxial cable (AS-CIB-USL30-100MM) is supplied with the camera. Other lengths are available. |
| Input/Output Connector (J2) | The interface board is fitted with an industry standard 4-way connector for Vsync/PWM signal output and test pattern/reset control inputs. Connector type: JST SM04B-SRSS-TB Mating cable: A suitable cable is available as part of the cable kit AS-CIB-CBLKIT-002-B (see ordering information). See Harrier 3G-SDI Camera Interface Board datasheet for pin assignments and control options. |
| Power and Control Connector (J3) | The interface board is fitted with an industry standard 9-way connector for power, serial control and analog video out. Connector type: JST SM09B-SRSS-TB Mating cable: A suitable cable is available as part of the cable kit AS-CIB-CBLKIT-002-B (see ordering information). See Harrier 3G-SDI Camera Interface Board datasheet for pin assignments and output options. |
| Analog Video Out (Pin 3, J3) | Standard resolution composite analog is simultaneously available in HD modes 720p50 (for PAL) and 720p60/59.94 (for NTSC). There are two options for the analog output, selectable via serial control: (a) the 1280 pixel wide HD image can be cropped to 960 wide, by cropping a 120 pixel strip off each side to make a 4:3 aspect ratio Standard Definition (SD) signal. (b) by pre-warping the image, such that when displayed on a HD monitor in the monitor’s stretch-to-fit mode, the original full-width HD signal will be displayed correctly at 16:9 aspect ratio. Both methods ensure the displayed pixels remain square and that the image is not distorted. |
| 3G-SDI Output Connector (J5) | The interface board is fitted with a Hirose H.FL Micro Coaxial Connector (75 Ohm). Connector type: Hirose Micro Coaxial Connector (Receptacle), part number H.FL-R-SMT(01). Mating connector: Use mating cable with 75 Ohm characteristic impedance, for example Hirose part number H.FL75-2LP-084H-A-100. A suitable cable is available as part of the cable kit AS-CIB-CBLKIT-002-B (see ordering information). |
| Video and Control Mode DIP Switch (SW1) | The interface board is fitted with a 4-way DIP switch to select various video output and control modes. The DIP switches to select the Video Format are read on power-up only. Therefore, to change mode using the DIP switches, power down the camera, set the switches and then power up the camera. DIP switches will only be effective for the operating modes supported by the camera currently in use. See Harrier 3G-SDI Camera Interface Board datasheet for the configuration of the DIP switch SW1. |
| Communications Mode Selection (SW2) | The interface board is also fitted with a 2-way DIP switch to select the serial communications standard. It allows to choose between RS-232 VISCA communications, RS-485 VISCA comms with RS-485 termination enabled, RS-485 VISCA comms with RS-485 termination disabled and TTL VISCA communications. See Harrier 3G-SDI Camera Interface Board datasheet for the details and configuration of the DIP switch SW2. |
| Digital Transmission Standard Selection (SW3) | The interface board is fitted with a 1-way DIP switch to select the SMPTE or HD-VLC digital output standards. OFF = SMPTE compliant output. ON = HD-VLC compressed output. |
| Physical and Environmental Details | |
| Power requirement | 8V to 12V DC +/- 10% |
| Power consumption | approx. 3.5W (approx. 5.4W during motor operation – zoom and focus) |
| Operating temperature | -5°C to +60°C (recommended: 0°C to +40°C) |
| Storage temperature | -20°C to +60°C |
| Operating humidity | 20% to 80% (no condensation) |
| Storage humidity | 20% to 90% (no condensation) |
| Dimensions (L x W x H) | 59 x 36 x 43mm (L x W x H) |
| Weight | 74g |
