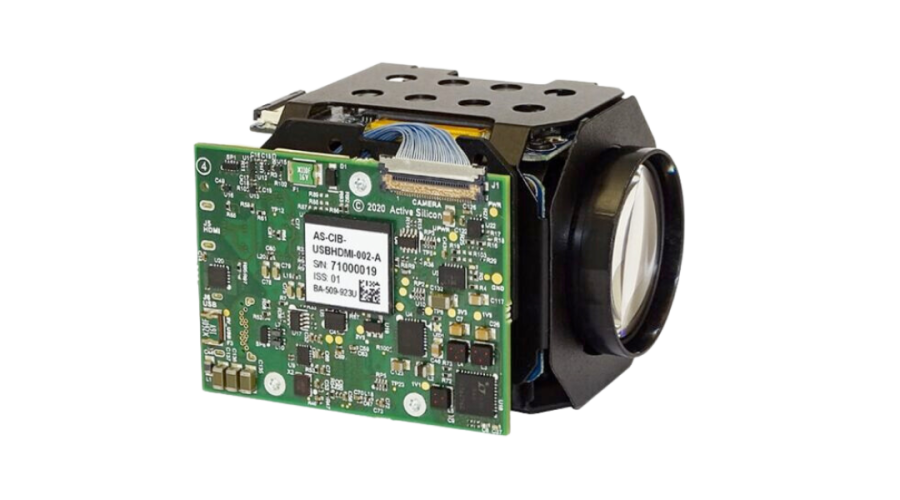

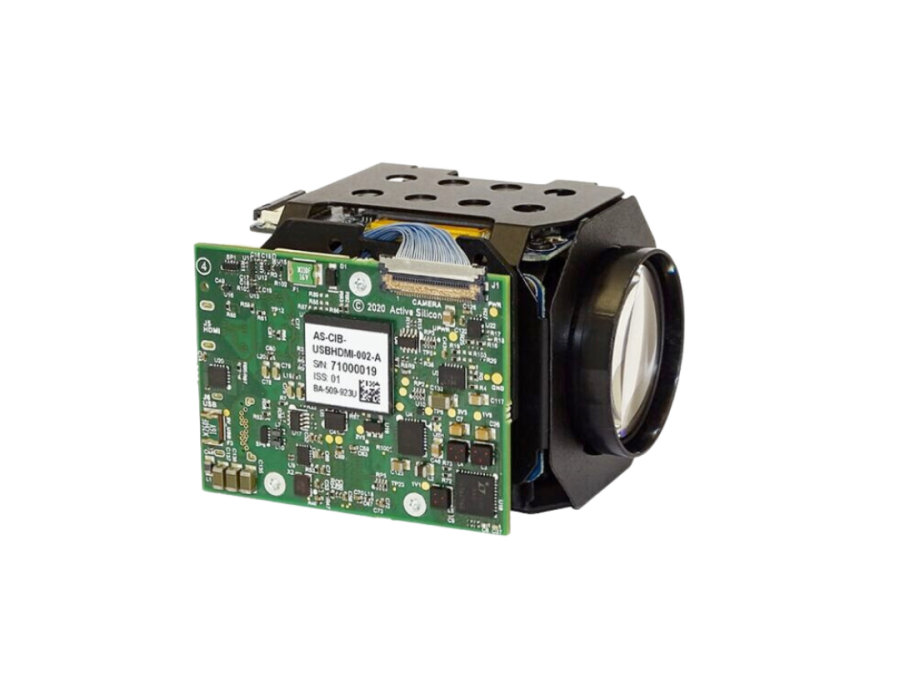

Harrier 10x AF-Zoom HDMI
- Full HD high resolution autofocus-zoom camera with HDMI output.
- 10x Optical Zoom & 32x Digital Zoom.
- 1/2.8-type 2MP Sony IMX462LQR-C STARVIS CMOS sensor.
- Supports 1080p – 60/50/30 fps, 720p – 60/50/30 fps.
- Effective number of pixels approx. 2,130,000.
- Shutter speed 1/30(25) – 1/30,000 sec.
- TTL Serial VISCA, Pelco – D/P Control Protocol.
- Video output mode selected by DIP switches or VISCA control.
| Model | Harrier 10x AF-Zoom HDMI |
|---|---|
| Image sensor | 1/2.8″ Sony IMX462LQR-C CMOS sensor (progressive scan) [issue02 camera] |
| Effective no. of pixels | Approx. 2,130,000 pixels |
| Video format (HD) | 1080p/60, 1080p/30, 720p/60 720p/30 |
| Video format (SD) | NTSC / PAL |
| Minimum illumination | Color (1/30s, 60dB): 0.003 lux; Color DSS (1/8s, 60dB): 0.00075 lux; BW (1/30s, 60dB): 0.0004lux; BW DSS (1/8s, 60dB): 0.0001 lux; [values for AS-CAM-10SHD-A issue02] |
| S/N ratio | More than 50dB |
| Gain control (AGC) | OFF/ON |
| Shutter speed | 1/30(25) – 1/30,000 sec |
| Sync system | Internal |
| Aperture control | 20steps |
| DSS | Off / 2x / 4x / (8x:60 or 50 fps only) [DSS = Digital Slow Shutter] |
| White balance | Auto, One Push, Manual, Indoor, Outdoor |
| AE (Auto exposure mode) | Auto, lris Priority, Shutter Priority, Manual |
| Lens (wide to tele) | 10x optical zoom f= 5.1mm to 51mm F1.6 to 1.8 |
| Digital zoom | OFF / MAX 2x – 32x |
| Focusing system | Auto, one push, manual |
| Horizontal viewing angle (wide to tele) | 57° to 6.2° |
| Minimum object distance (wide to tele) | 100mm to 1000mm |
| Horizontal resolution | 700 TV lines |
| Control protocol | Serial VISCA / TTL Pelco-D / Pelco-P |
| Baud rate | 2400 / 4800 / 9600 / 19200 / 38400 / 57600 / 115200 |
| Camera Functions | |
| Day & Night mode | Infrared Cut filter Removal (ICR). Auto / Day / Night / Ext-in. |
| Wide Dynamic Range (WDR) | real-time. OFF / WDR / BLC. |
| Digital Noise Reduction | 2D+3D DNR. OFF / Low / Middle / High / Auto |
| Digital Image Stabilization | Available. |
| High/Back Light Compensation (HLC/BLC) | OFF / ON / Night only. |
| Defog | Available. |
| Motion detection | Detection OFF / 3 regions. |
| Privacy mask | Mask OFF / 24 masks. |
| Defect detection | Available, ON/OFF. |
| Mirror | Off, H, V, H&V. |
| Connector Specification - camera interface board | |
| KEL30 Connector (J1) | The interface board is fitted with a 30-way miniature connector to link to the video output connector on the camera. Connector type: KEL USL00-30L. Mating cable: A 30-way micro coaxial cable (AS-CIB-USL30-100MM) is supplied with the camera. Lengths available: KEL USL20-30SS-010-C (100mm length) or KEL USL20-30SS-005-C (50mm length). |
| Input/Output Connector (J2) | The interface board is fitted with an industry standard 4-way connector for VSync/PWM signal output and test pattern/reset control inputs. Connector type: JST SM04B-SRSS-TB Mating cable: A suitable cable is available as part of the cable kit AS-CIB-CBLKIT-003-A (see ordering information tab). See Harrier HDMI Camera Interface Board datasheet for pin assignments and control options. |
| Power and Control Connector (J3) | The interface board is fitted with an industry standard 10-way connector for power and serial control. Connector type: JST SM10B-SRSS-TB Mating cable: A suitable cable is available as part of the cable kit AS-CIB-CBLKIT-003-A (see ordering information tab). See Harrier HDMI Camera Interface Board datasheet for pin assignment and output options. |
| JTAG Connector (J4): | Test connector used in manufacturing for circuit verification. |
| HDMI Output Connector (J5) | The interface board is fitted with a micro HDMI display output connector. HDMI output is active when an HDMI cable is connected. Connector type: HDMI Type D (micro). Mating Connector: Standard micro HDMI cable. |
| Video and Control Mode DIP Switch (SW1) | The interface board is fitted with an 8-way DIP switch (SW1) to enable selection of camera video format on power-up. Switches 5-8 are reserved for future use. See datasheet for the configuration of the DIP switch elements. |
| General | |
| Power requirement | 9 – 15V DC. |
| Power consumption | Approx. 4W (typical@1080p60). |
| Operating temperature | 0°C to +50°C. |
| Storage temperature | -20°C to +60°C. |
| Operating humidity | 10% to 90% (no condensation) |

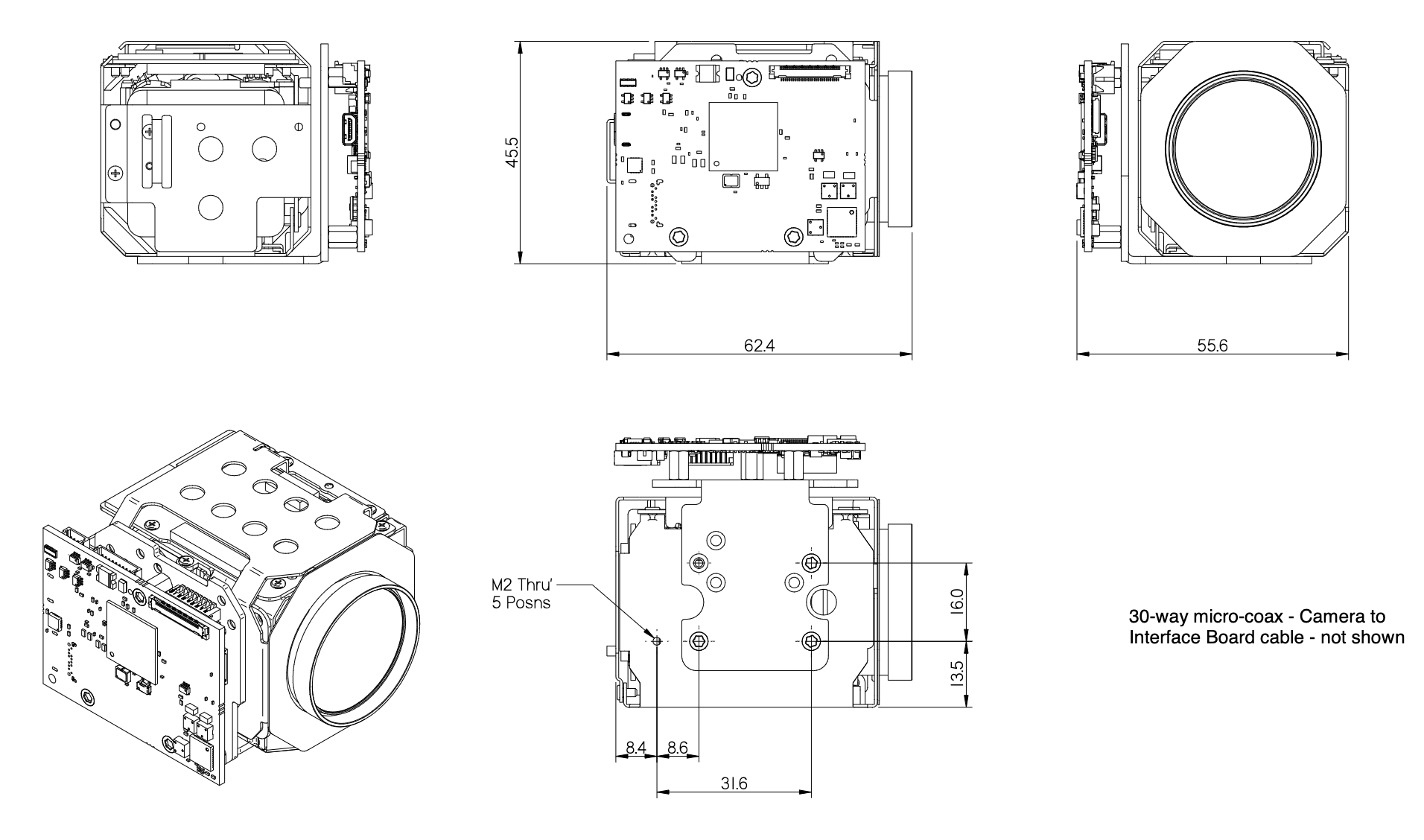

| Dimensions (L x W x H) | 62.4mm x 56mm x 45.5mm (L x W x H). |
| Weight | 136g. |
