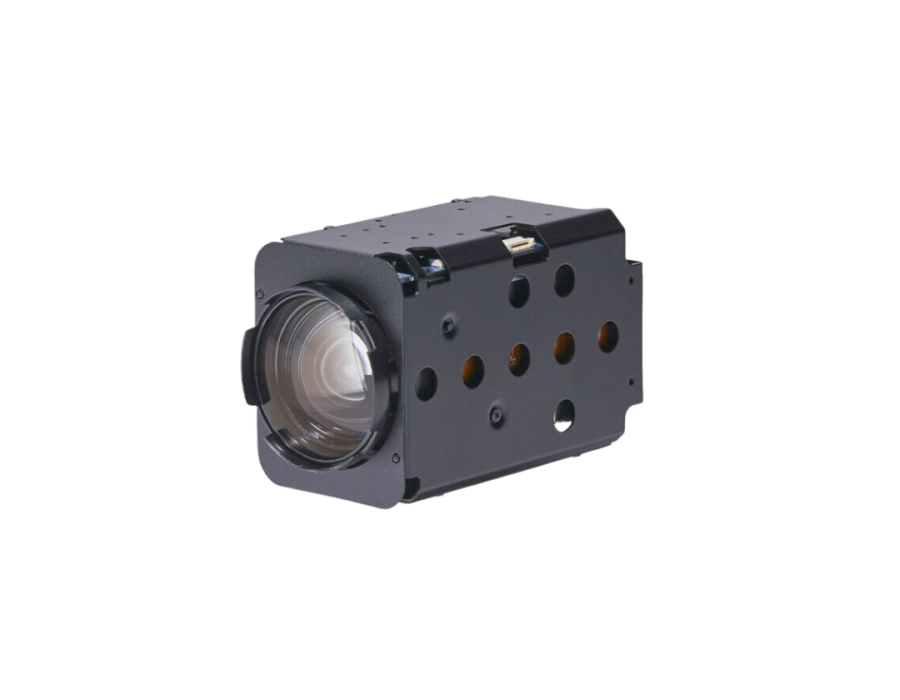

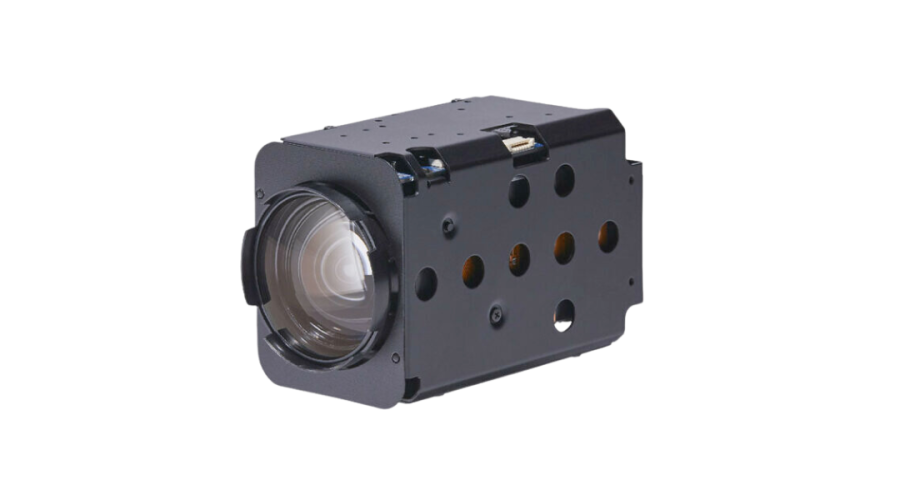

Harrier 18x AF-Zoom HDMI 4K
- 4K autofocus-zoom camera
- Output: HDMI, CVBS
- Video formats (4K & HD): 2160p, 1440p, 1080p, 720p – 30/25 fps
- Video format (analog): CVBS (NTSC/PAL)
- 1/1.8-type 8.4MP Sony IMX334LQR-C CMOS sensor
- 18x Optical Zoom & 32x Digital Zoom
- Effective number of pixels approx. 8,410,000
- Shutter speed 1/1 ~ 1/60,000 sec
- Dimensions (L x W x H): 97.9 x 50 x 62mm
- Digital Image Stabilization and 2D/3D Noise Reduction
- Antiflicker / Defog modes
- Day & Night mode – Infrared Cut filter Removal (ICR)
- High/Back Light Compensation (HLC/BLC)
| Model | Harrier 18x AF-Zoom HDMI 4K |
|---|---|
| Image sensor | 1/1.8-type Sony IMX334LQR-C CMOS sensor (progressive scan) |
| Effective no. of pixels | Approx. 8,420,000 pixels |
| Video format (HD) | (3840×2160) 2160p 30/25fps, 1440p 30/25fps, 1080p 30/25fps, 720p 30/25fps |
| Analog resolution | CVBS |
| Minimum illumination | Color(1/30s, 72dB) : 0.012 lux , BW(1/30s, 72dB) : 0.0019 lux Color DSS(1/1s, 72dB) : 0.0012 lux , BW DSS(1/1s, 72dB) : 0.00019 lux |
| S/N ratio | More than 50dB |
| Gain control (AGC) | 0 ~ 10 steps |
| Shutter speed | 1/1 ~ 1/60,000 sec |
| Sync system | Internal |
| DSS | Off / 2x / 4x / 8x / 16x / 32x |
| White balance | Auto, One Push, Manual, Indoor, Outdoor, Auto-Ext |
| AE (Auto exposure mode) | Auto, lris Priority, Shutter Priority, Manual |
| Lens (wide to tele) | 18x optical zoom; f= 6.8mm to 120mm; F1.61 to F4.13 |
| Digital zoom | OFF / MAX 2x – 32x |
| Focusing system | Auto, one push, manual |
| Horizontal viewing angle (wide to tele) | 58.5° to 3.7° |
| Minimum object distance (wide to tele) | 0.5 / 1.5 / 3.0 / 5.0 / 10.0 m |
| Comms. | USB-UART, 5V CMOS |
| Control protocol | VISCA, Pelco-D/Pelco-P over serial or USB virtual COM port |
| Baud rate | 2400 / 4800 / 9600 / 19200 / 38400 / 57600 / 115200 |
| Camera Functions | |
| Day & Night mode | Auto / Day / Night / Ext-in |
| Digital Wide Dynamic Range (DWDR) | Off / Manual / Auto |
| Digital Noise Reduction | 2D/3D, 2D+3D, 0 ~ 15 steps |
| Digital Image Stabilization | Off / On |
| High/Back Light Compensation (HLC/BLC) | Off / BLC / HLC |
| Defog | Available. |
| Flickerless | Off / On / Auto |
| Motion detection | Off / On (4 points) |
| Privacy mask | Off / On (8 points) |
| Defect detection | Off / On |
| Mirror | Off, H, V, H&V |
| General | |
| Power requirement | 9 – 15V DC. |
| Power consumption | Max.: 6W Typical at 2160p30: ~4.3W |
| Operating temperature | -10°C to +50°C. |
| Storage temperature | -20°C to +60°C. |
| Operating humidity | 0% to 90% (no condensation) |

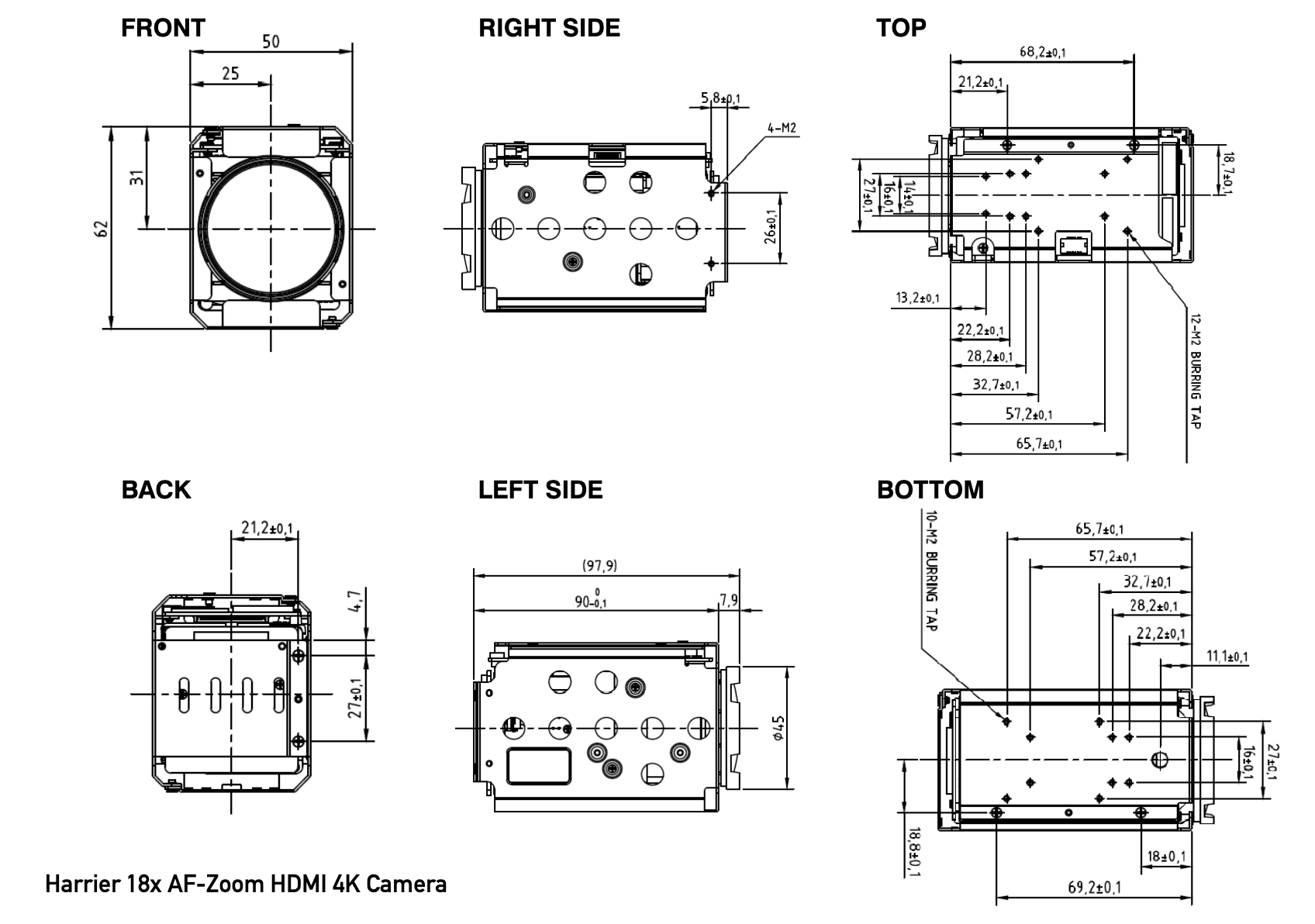

| Dimensions (L x W x H) | 97.9mm x 50mm x 62mm (L x W x H). |
| Weight | 293g. |
