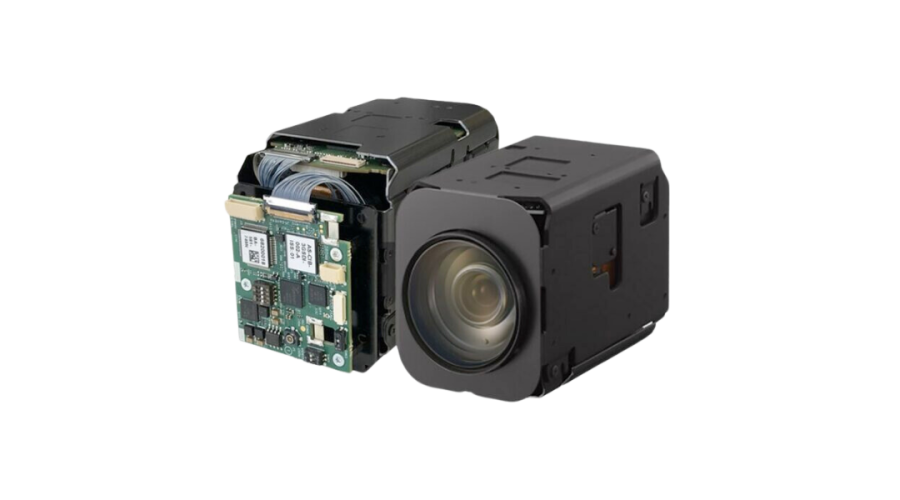

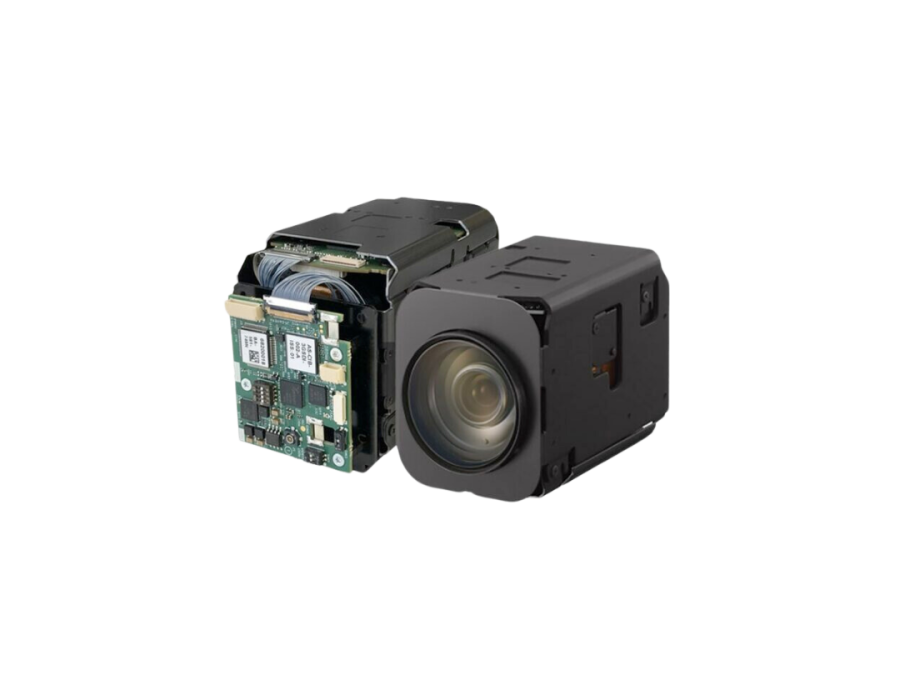

Harrier 30x AF-Zoom 3G-SDI
Compact and low-power camera option
Main > Product > Machine Vision Area Scan camera > Active Silicon Industrial Machine Vision Cameras > Harrier 30x AF-Zoom 3G-SDI
Harrier 30x AF-Zoom 3G-SDI
- 3G-SDI camera solution with Sony FCB-EV9520L.
- 30x optical zoom, 12x digital zoom.
- 1/2.8″-type Sony IMX662 STARVIS 2 CMOS image sensor.
- Supports all HD modes up to 1080p60.
- HD-VLC™ output mode for long cable length applications.
- Simultaneous analog video output (PAL/NTSC) in 720p50/59.94/60 modes.
- Selectable TTL/RS-232/RS-485 comms port for camera control/communication.
- Single VISCA programmable 3.3V PWM output channel.
| Model | Harrier 30x AF-Zoom 3G-SDI |
|---|---|
| Image sensor | 1/2.8″-type Sony IMX662 STARVIS 2 CMOS Sensor |
| Number of effective pixels | 2.130MP |
| Output pixels (H x V) | 1920 x 1080, 1280 x 720 |
| Video format | 1080p/60, 1080p/59.94, 1080p/50, 1080p/30, 1080p/29.97, 1080p/25, 1080i/60, 1080i/59.94, 1080i/50, 720p/60, 720p/59.94, 720p/50, 720p/30, 720p/29.97, 720p/25 |
| Minimum illumination (50%, High Sensitivity mode ON) | ICR-Off mode: 0.009 lx (shutter speed 1/30 sec) 0.0012 lx (shutter speed 1/4 sec, 1/3 sec) ICR-On mode: 0.00008 lx (shutter speed 1/30 sec) 0.000005 lx (shutter speed 1/4 sec, 1/3 sec) |
| Minimum illumination (50%, High Sensitivity mode OFF) | ICR-Off mode: 0.09 lx (shutter speed 1/30 sec) 0.012 lx (shutter speed 1/4 sec, 1/3 sec) ICR-On mode: 0.00063 lx (shutter speed 1/30 sec) |
| Recommended illumination | 100lx to 100,000lx |
| Image S/N | 50 dB (Weight On) |
| Gain | Auto / manual (0dB to 50.0dB), 0 to 28 steps Max. Gain Limit (10.7 to 50.0 dB), 6 to 28 step) |
| Shutter speed | 1/1 sec to 1/10,000 sec, 22 steps |
| Sync system | Internal |
| Exposure compensation | 0dB to ± 10.5dB, 15 steps |
| Backlight compensation | Yes |
| Gamma | Standard / straight gamma |
| Aperture control | 16 steps |
| White balance | Auto, ATW, Indoor, Outdoor, One Push WB, Manual WB, Outdoor Auto, Sodium Vapor Lamp (Fix / Auto / Outdoor Auto) |
| AE (Auto exposure mode) | Full Auto, Manual, Priority mode (shutter / iris), EV compensation, Spot AE, Slow AE |
| Lens | 30x optical zoom f=4.3mm (wide) to 129mm (tele), F1.6 to F4.7 |
| Zoom movement speed | WIDE − TELE (59.94p/50p) 4.8 sec (Focus Tracking On) 3.0 sec (Focus Tracking Off) WIDE − TELE (29.97p/25p) 5.7 sec (Focus Tracking On) 3.0 sec (Focus Tracking Off) WIDE – Digital TELE (Digital 12×) 6.0 sec (59.94p mode) 6.3 sec (50p mode) 7.0 sec (29.97p mode) 7.3 sec (25p mode) |
| Zoom mode | Standard Mode / Variable Mode / Direct Mode |
| Digital zoom | 12x (max 432x with “StableZoom”) |
| Focussing system | Auto Focus (Normal AF, Interval AF, Zoom Trigger AF [Sensitivity: normal, low]) Manual (Standard, Variable, Direct), One Push Trigger, Near Limit, Full Scan One Push Trigger, ICR-on Correction, Spot Focus |
| Horizontal viewing angle (wide to tele) | Distortion compensation Off: 64.0° (Wide) to 2.4° (Tele) Distortion compensation On: 61.5° (Wide) to 2.3° (Tele) |
| Minimum object distance | 10mm (Wide) to 1200mm (Tele) |
| Camera Functions | |
| Auto ICR | Yes: ON (B&W/Color) |
| Wide Dynamic Range (Wide-D) | Yes |
| Visibility enhancer | Yes |
| Defog | Yes (low / mid / high) |
| Noise reduction | Yes (3D + 2D / independent setting (3D, 2D) |
| Image stabilization | Yes: Super image stabilizer (Super/Super+) |
| StableZoom | Yes |
| Spot light avoidance | Yes |
| Motion detection | Yes |
| Privacy zone masking | Yes |
| Alarm | Yes |
| Slow AE response | Yes |
| Picture effects | Black & white (monochrome image) |
| Picture freeze | Yes |
| Electronic flip (e-flip) | Yes |
| Mirror image | Yes |
| Slow shutter | Yes |
| Temperature readout | Yes |
| Title display | Yes (20 characters / line, max. 11 lines) |
| Camera mode display | Yes (English) |
| Connector Specification Harrier 3G-SDI Camera Interface Board | |
| KEL30 Connector (J1) | The interface board is fitted with a 30-way miniature connector to link to the video output connector on the camera. Connector type: KEL USL00-30L. Mating cable: A 30-way micro coaxial cable (AS-CIB-USL30-100MM) is supplied with the camera. Lengths available: KEL USL20-30SS-010-C (100mm length) or KEL USL20-30SS-005-C (50mm length). |
| Input/Output Connector (J2) | The interface board is fitted with an industry standard 4-way connector for Vsync/PWM signal output and test pattern/reset control inputs. Connector type: JST SM04B-SRSS-TB Mating cable: A suitable cable is available as part of the cable kit AS-CIB-CBLKIT-002-B (see ordering information). See Harrier 3G-SDI Camera Interface Board datasheet for pin assignments and control options. |
| Power and Control Connector (J3) | The interface board is fitted with an industry standard 9-way connector for power, serial control and analog video out. Connector type: JST SM09B-SRSS-TB Mating cable: A suitable cable is available as part of the cable kit AS-CIB-CBLKIT-002-B (see ordering information). See Harrier 3G-SDI Camera Interface Board datasheet for pin assignments and output options. |
| JTAG Connector (J4) | Test connector used in manufacturing for circuit verification. |
| 3G-SDI Output Connector (J5) | The interface board is fitted with a Hirose H.FL Micro Coaxial Connector (75 Ohm). Connector type: Hirose Micro Coaxial Connector (Receptacle), part number H.FL-R-SMT(01). Mating connector: Use mating cable with 75 Ohm characteristic impedance, for example Hirose part number H.FL75-2LP-084H-A-100. A suitable cable is available as part of the cable kit AS-CIB-CBLKIT-002-B (see ordering information). |
| Video and Control Mode DIP Switch (SW1) | The interface board is fitted with a 4-way DIP switch to select various video output and control modes. The DIP switches to select the Video Format are read on power-up only. Therefore, to change mode using the DIP switches, power down the camera, set the switches and then power up the camera. DIP switches will only be effective for the operating modes supported by the camera currently in use. See Harrier 3G-SDI Camera Interface Board datasheet for the configuration of the DIP switch SW1. |
| Communications Mode Selection (SW2) | The interface board is also fitted with a 2-way DIP switch to select the serial communications standard. It allows to choose between RS-232 VISCA communications, RS-485 VISCA comms with RS-485 termination enabled, RS-485 VISCA comms with RS-485 termination disabled and TTL VISCA communications. See Harrier 3G-SDI Camera Interface Board datasheet for the details and configuration of the DIP switch SW2. |
| Digital Transmission Standard Selection (SW3) | The interface board is fitted with a 1-way DIP switch to select the SMPTE or HD-VLC digital output standards. OFF = SMPTE compliant output. ON = HD-VLC compressed output. |
| Interface | |
| 3G-SDI | Compliant with SMPTE274M and SMPTE296M. |
| Camera control interface | VISCA protocol (TTL, RS-232, RS-485) Baud rate: 9.6 kbps, 19.2 kbps, 38.4 kbps, 115.2 kbps, stop bit: 1-bit |
| Physical and Environmental Details | |
| Power requirements | 8V to 12V DC |
| Power consumption | TBD |
| Operating temperature | -5°C to +60°C (ambient environment) |
| Storage temperature | -20°C to +60°C |
| Relative humidity | 20% to 80% non-condensing (operating and storage) |
| Dimensions (L x W x H) | 114 x 50.0 x 62.0mm |
| Weight | Approx. 273g |
