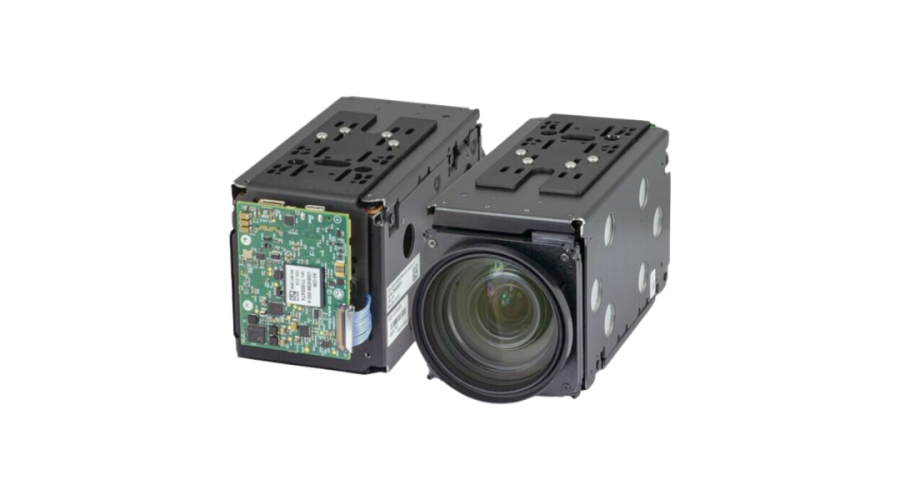

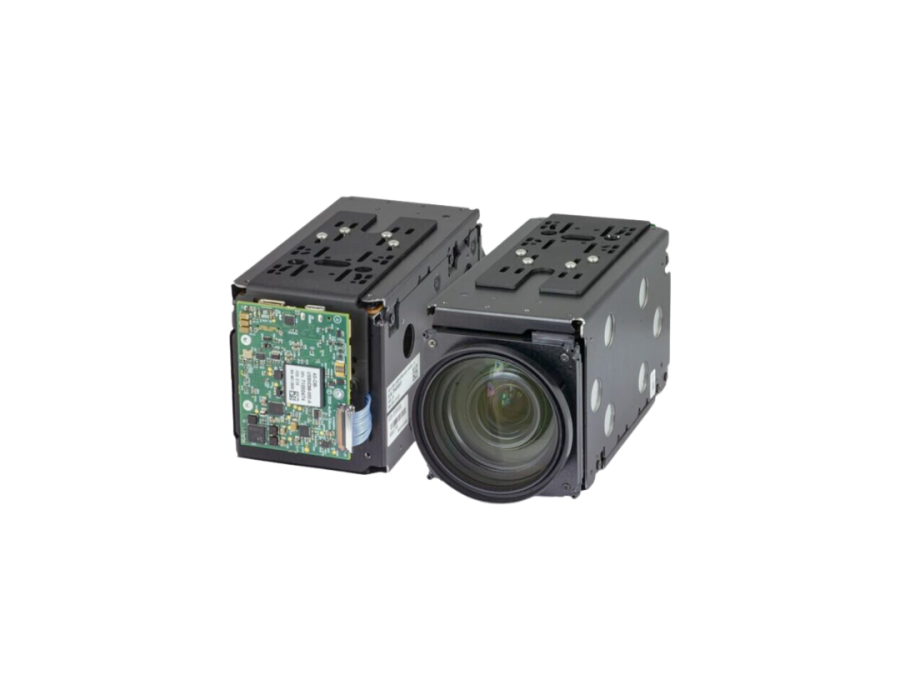

Harrier 30x AF-Zoom USB/HDMI
- USB 3.1 Gen1 and HDMI camera solution for the Sony FCB-EV9500L.
- Simultaneous display on both video outputs.
- 30x optical zoom, 12x digital zoom.
- 1/1.8″-type Sony IMX64AR STARVIS anti-reflective-coated CMOS sensor.
- Supports all HD modes up to 1080p60.
- Camera control using VISCA™ protocol over TTL/RS-232/RS-485 serial or USB 3.1 (UVC) port.
- Video output mode selected by DIP switches, UVC or VISCA control (over serial or USB connection).
- Power supply over USB capability.
| Model | Harrier 30x AF-Zoom USB/HDMI |
|---|---|
| Image sensor | 1/1.8″-type Sony IMX64AR STARVIS anti-reflective-coated CMOS sensor. |
| Number of effective pixels | 4.17M Pixel |
| Output pixels (H x V) | 1920 x 1080, 1280 x 720 |
| Video format | 1080p/60, 1080p/59.94, 1080p/50, 1080p/30, 1080p/29.97, 1080p/25, 1080i/60, 1080i/59.94, 1080i/50, 720p/60, 720p/59.94, 720p/50, 720p/30, 720p/29.97, 720p/25 |
| Minimum illumination (50%, High Sensitivity mode ON) | ICR-Off mode: 0.009lx (shutter speed 1/30 sec), 0.0012lx (1/4 sec or 1/3 sec) ICR-On mode: 0.00008lx (shutter speed 1/30 sec), 0.000005lx (1/4 sec or 1/3 sec, 30%) |
| Minimum illumination (50%, High Sensitivity mode OFF) | ICR-Off mode: 0.09lx (shutter speed 1/30 sec), 0.012lx (1/4 sec or 1/3 sec) ICR-On mode: 0.00063lx (shutter speed 1/30 sec) |
| Recommended illumination | 100lx to 100,000lx |
| Image S/N | 50 dB (Weight On) |
| Gain | Auto / manual (0dB to 50.0dB), 0 to 28 steps |
| Shutter speed | 1/1 sec to 1/10,000 sec, 22 steps |
| Sync system | Internal |
| Exposure control | 0dB to ± 10.5dB, 15 steps |
| Backlight compensation | Yes |
| Gamma | Standard / Straight gamma |
| Aperture control | 16 steps |
| White balance | Auto, ATW, Indoor, Outdoor, One Push WB, Manual WB, Outdoor Auto, Sodium Vapor Lamp (Fix / Auto / Outdoor Auto), Spot AWB |
| AE (Auto exposure mode) | Full Auto, Manual, Priority mode (shutter / iris), EV compensation, Spot AE, Slow AE |
| Zoom | 30x Enhanced Optical Zoom 36x StableZoom* 12x Digital Zoom *StableZoom increases the magnification by combining optical zoom and digital zoom. |
| Lens (wide to tele) | f=6.5mm to 162.5mm, F1.6 to F4.8 |
| Zoom mode | Standard Mode / Variable Mode / Direct Mode |
| Zoom Movement Speed | Wide end to Tele end: 4.8 s (Focus Tracking ON), 2.9 s (Focus Tracking OFF) Wide end to Digital 12x tele: 6.1 s (29.97p/59.94p), 6.4 s(25p/50p) Digital wide to Digital 12x tele: 1.4 s (29.97p/59.94p), 1.6 s (25p/50p) |
| Focusing system | Auto focus (Normal AF, Interval AF, Zoom Trigger AF [sensitivity: normal, low]), Manual (Standard, Variable, Direct), One Push Trigger, Full Scan One Push Trigger, Near Limit, IR Correction, Spot Focus |
| Focus Movement Time | ∞ to Near: 1.4 s |
| Horizontal viewing angle | 58.1° (Wide) to 2.3° (Tele) |
| Minimum object distance | 100mm (Wide) to 1200mm (Tele) |
| Camera Functions | |
| Auto ICR | Yes |
| Wide Dynamic Range (Wide-D) | Yes |
| Visibility Enhancer | Yes |
| Defog | Yes (low / mid / high) |
| Noise Reduction | Yes (3D + 2D / independent setting (3D, 2D) |
| Progressive Scan Mode | Yes |
| Image Stabilization | Yes: Super image stabilizer (Super / Super+) |
| Spot Light Avoidance | Yes |
| Motion detection | Yes |
| Privacy zone masking | Yes |
| Alarm | Yes |
| Slow AE response | Yes |
| Picture effects | Black & white (monochrome image) |
| Picture freeze | Yes |
| Electronic flip (e-flip) | Yes |
| Mirror image | Yes |
| Slow shutter | Yes |
| Temperature readout | Yes |
| Title display | Yes (20 characters / line, max. 11 lines) |
| Camera mode display | Yes (English) |
| Connector Specifications (camera interface board) | |
| KEL30 Connector (J1) | The interface board is fitted with a 30-way miniature connector to link to the matching connector on the camera. Connector type: KEL USL00-30L Mating cable: A 30-way micro coaxial cable (AS-CIB-USL30-100MM) is supplied with the camera. Lengths available: KEL USL20-30SS-010-C (100mm length) or KEL USL20-30SS-005-C (50mm length). |
| Input/Output Connector (J2) | The interface board is fitted with an industry standard 4-way connector for VSync signal output and test pattern/reset control inputs. Connector type: JST SM04B-SRSS-TB Mating cable: A suitable cable is available as part of the cable kit AS-CIB-CBLKIT-003-A (see ordering information below). See Harrier USB/HDMI Camera Interface Board datasheet for pin assignments and control options. |
| Power and Control Connector (J3) | The interface board is fitted with an industry standard 10-way connector for power and serial control. Connector type: JST SM10B-SRSS-TB Mating cable: A suitable cable is available as part of the cable kit AS-CIB-CBLKIT-003-A (see ordering information below). See Harrier USB/HDMI Camera Interface Board datasheet for pin assignments and control options. |
| JTAG Connector (J4): | Test connector used in manufacturing for circuit verification. |
| HDMI Output Connector (J5) | The interface board is fitted with a micro HDMI display output connector. HDMI output is active when an HDMI cable is connected. Connector type: HDMI Type D (micro). Mating Connector: Standard micro HDMI cable. |
| USB 3.1 Connector (J6) | This USB Type C connector provides a USB Video Class (UVC) v1.1 video stream for connection to a host PC. The connector also provides a UVC control port for camera control (optional). It can also provide power to the camera or board if the USB connection has a high enough current/power rating. Connector type: USB Type C (5 Gbps) Mating Connector: Standard USB 3.x Type A/C to Type C cable (5 Gbps min.) |
| Video and Control Mode DIP Switch (SW1) | The interface board is fitted with an 8-way DIP switch (SW1) to enable selection of camera video format on power-up, and VISCA camera control communication modes. See Harrier USB/HDMI Camera Interface Board datasheet for the configuration of the DIP switch elements. |
| Status LED | The interface board is fitted with a multi-color LED to indicate camera status. |
| Physical and Environmental Details | |
| Power requirements | 8V to 12V DC from J3, or 5V from J6 (USB) |
| Power consumption | TBD |
| Operating temperature | 0°C to +60°C (ambient environment). |
| Storage temperature | -20°C to +60°C |
| Relative humidity | 20% to 80% non-condensing (operating and storage) |
| Dimensions (L x W x H) | 148 x 56 x 65.5mm (L x W x H). |
| Weight | approximately 473g |
| Interface | |
| USB/UVC | The SuperSpeed USB video port (USB Type C, J6) can be used to stream/acquire image data in parallel with the HDMI display output. The video mode of the UVC stream is the same as the output of the camera. To change the mode of the UVC stream the mode of the camera should be changed using VISCA serial commands, UVC control or DIP switch settings (and power cycling). Video modes up to 1080p60 are supported. Compliant with SuperSpeed USB 3.1 (UVC). |
| HDMI | HDMI output is enabled when an HDMI cable is plugged in. The video mode of the HDMI output is the same as the output of the camera. To change the mode of the HDMI output the mode of the camera should be changed using VISCA serial commands or DIP switch settings (and power cycling). Video modes up to 1080p60 are supported. Compliant with HDMI specification v.1.4a. |
| Camera control interface | VISCA protocol (CMOS 5V level) Baud rate: 9.6 kbps, 19.2 kbps, 38.4 kbps, 115.2 kbps, stop bit: 1-bit |
| HarrierControl camera software | The HarrierControl camera software can also be used to configure the custom camera support on the Harrier USB/HDMI Camera Interface Board over the USB connection. |
