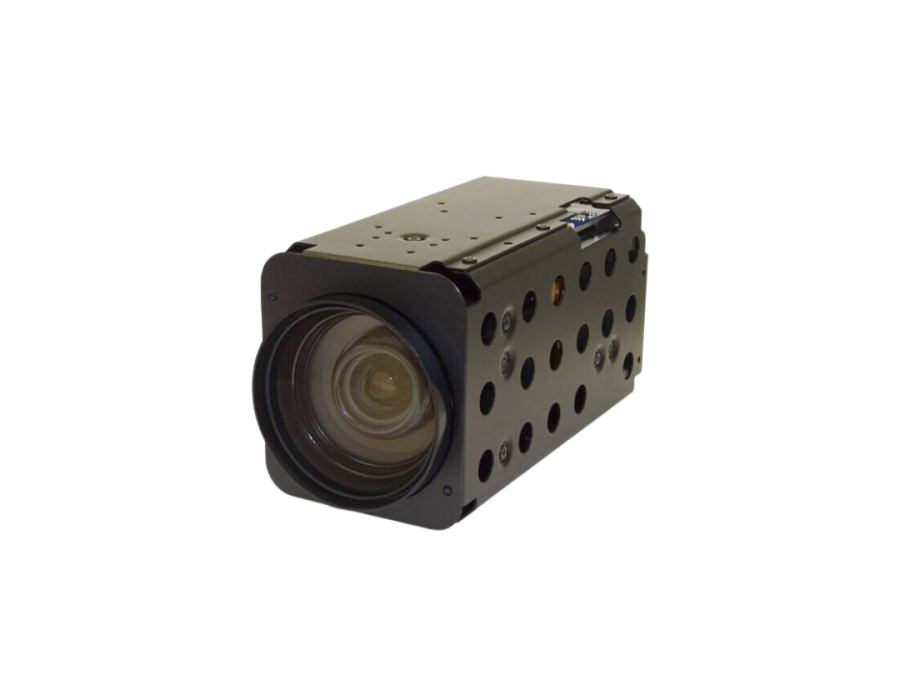

Harrier 36x AF-Zoom
- Full HD high resolution autofocus-zoom camera.
- 1/2.3-type Sony Pregius IMX392LQR-C CMOS sensor (global shutter).
- Output: LVDS (single mode), EX-SDI, CVBS.
- Video formats (HD): 1080p – 60/50/30/25 fps, 720p – 60/50/30/25 fps.
- 36x Optical Zoom & 32x Digital Zoom.
- Effective number of pixels approx. 2,350,000.
- Shutter speed 1/30(25) – 1/20,000 sec.
- Dimensions (L x W x H): 124 x 55.6 x 64mm.
- Serial VISCA, Pelco – D/P Control Protocol.
- External trigger and strobe out capability.
- Compatible with Active Silicon’s Harrier camera interface boards.
- Pre-assembled camera solutions available (HD-SDI, USB, HDMI, Ethernet IP).
| Model | Harrier 36x AF-Zoom |
|---|---|
| Image sensor | 1/2.3-type Sony Pregius IMX392LQR-C CMOS sensor (global shutter) |
| Effective no. of pixels | Approx. 2,350,000 pixels |
| Video format (HD) | 1080p/60/50/30/25 fps (only single LVDS mode), 720p/60/50/30/25 fps |
| Analog resolution | CVBS |
| Minimum illumination | Color(1/30s, 48dB) : 0.3 lux , Color DSS(1/2s, 48dB) : 0.06 lux |
| S/N ratio | more than 50dB (AGC off) |
| Gain control (AGC) | 0 – 10 steps |
| Shutter speed | 1/30(25) – 1/20,000 sec |
| Sync system | Internal |
| DSS | Off / 2x / 4x / 8x / 16x / 32x (/64x : 60 or 50fps mode only) |
| White balance | Auto, One Push, Manual, Indoor, Outdoor |
| AE (Auto exposure mode) | Auto, lris Priority, Shutter Priority, Manual |
| Lens (wide to tele) | Optical x36 Zoom, f=6mm to 216mm, F1.5 (wide) to F4.8 (tele) |
| Digital zoom | OFF / MAX 1x – 32x |
| Focusing system | Auto / One Push / Manual |
| Viewing angle (FOV) | FOV D H V Wide 59.1° 52.6° 31.1° Tele 2.3° 2.0° 1.1° |
| Minimum object distance (wide to tele) | 100mm (wide) to 1500mm (tele) |
| Control protocol | Serial VISCA Pelco-D / Pelco-P |
| Baud rate | 9600 / 19200 / 38400 / 115200 |
| Camera Functions | |
| Day & Night mode | Day / Night |
| Digital Noise Reduction | OFF / Low / Middle / High / Auto |
| Digital Image Stabilization | Available |
| High/Back Light Compensation (HLC/BLC) | Off / BLC / HLC |
| Defog | Available |
| Motion detection | Detection OFF / 3 positions |
| Privacy mask | Mask OFF / 8 positions |
| Defect detection | Detection ON/OFF |
| General | |
| Power requirement | 9 – 15V DC |
| Power consumption | Max.: 6.6W Typical: ~5.4W |
| Operating temperature | -10°C to +50°C |
| Storage temperature | -20°C to +60°C |
| Operating humidity | 0% to 90% (no condensation) |

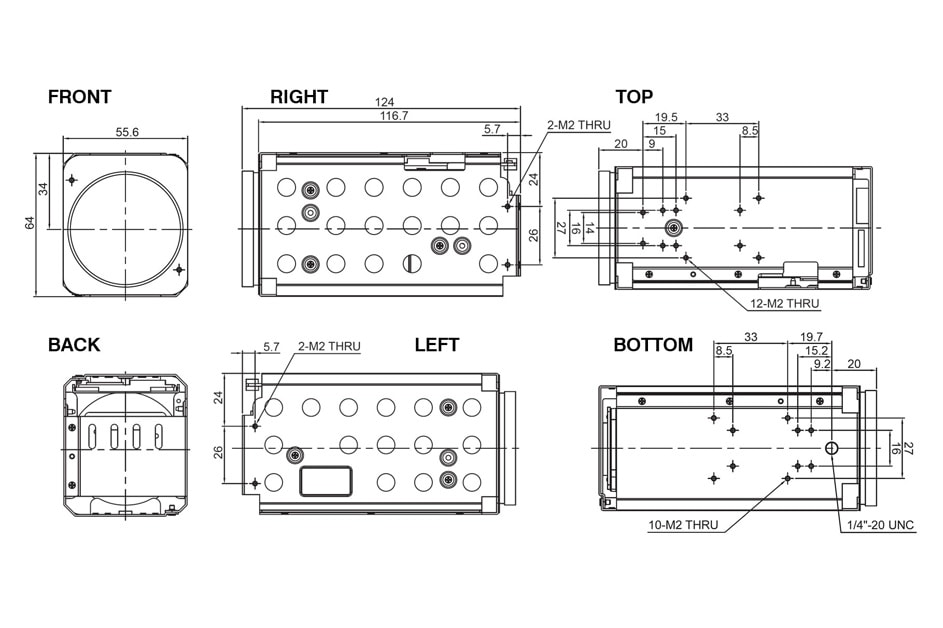

| Dimensions (L x W x H) | 124 x 55.6 x 64mm (L x W x H) |
| Weight | 416g |
