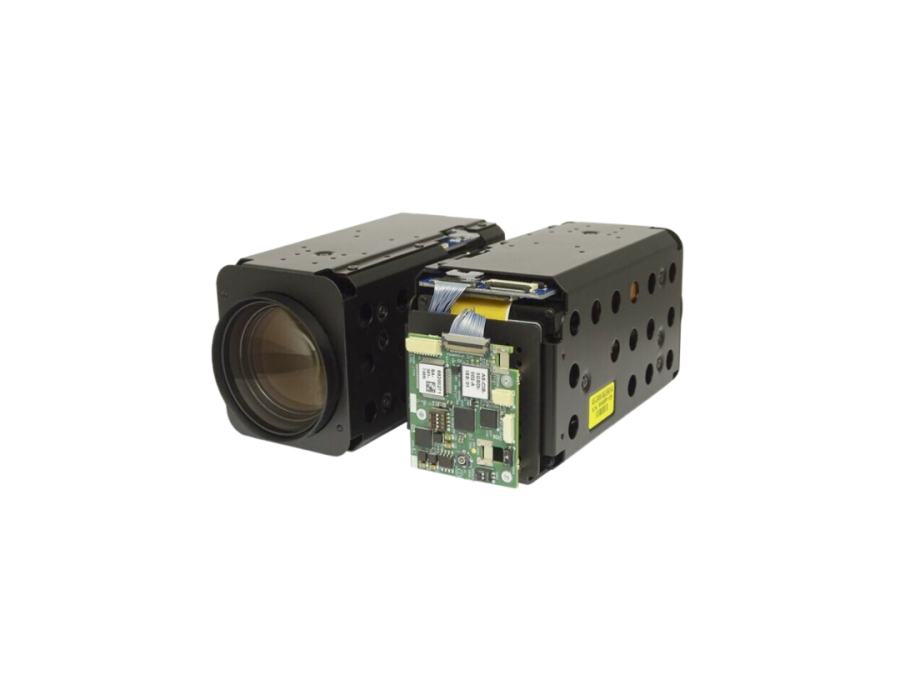

Harrier 36x AF-Zoom HD-SDI
- Full HD autofocus-zoom camera with HD-SDI output.
- 1/2.3-type Sony Pregius IMX392LQR-C CMOS sensor (global shutter).
- 36x Optical Zoom & 32x Digital Zoom.
- Supports 1080p – 30/25 fps, 720p – 60/50/30/25 fps.
- HD-VLC™ output mode for long cable length applications.
- TTL/RS-232 Serial VISCA, Pelco – D/P Control Protocol.
- Single VISCA programmable 3.3V PWM output channel.
- Video mode selection switches and built-in test pattern.
- External trigger and strobe out capability.
- Simultaneous analog (PAL/NTSC) when in 720p50/59.94/60 modes.
| Model | Harrier 36x AF-Zoom HD-SDI |
|---|---|
| Image sensor | 1/2.3-type Sony Pregius IMX392LQR-C CMOS sensor (global shutter) |
| Effective no. of pixels | Approx. 2,350,000 pixels |
| Video format (HD) | HD-SDI: 1080p/30/25 fps, 720p/60/50/30/25 fps Camera LVDS: 1080p/60/50/30/25 fps (single LVDS mode), 720p/60/50/30/25 fps |
| Analog resolution | CVBS |
| Minimum illumination | Color(1/30s, 48dB) : 0.3 lux , Color DSS(1/2s, 48dB) : 0.06 lux |
| S/N ratio | more than 50dB (AGC off) |
| Gain control (AGC) | 0 – 10 steps |
| Shutter speed | 1/30(25) – 1/20,000 sec |
| Sync system | Internal |
| DSS | Off / 2x / 4x / 8x / 16x / 32x (/64x : 60 or 50fps mode only) |
| White balance | Auto, One Push, Manual, Indoor, Outdoor |
| AE (Auto exposure mode) | Auto, lris Priority, Shutter Priority, Manual |
| Lens (wide to tele) | Optical x36 Zoom, f=6mm to 216mm, F1.5 (wide) to F4.8 (tele) |
| Digital zoom | OFF / MAX 1x – 32x |
| Focusing system | Auto / One Push / Manual |
| Viewing angle (FOV) | FOV D H V Wide 59.1° 52.6° 31.1° Tele 2.3° 2.0° 1.1° |
| Minimum object distance (wide to tele) | 100mm (wide) to 1500mm (tele) |
| Control protocol | Serial VISCA Pelco-D / Pelco-P |
| Baud rate | 9600 / 19200 / 38400 / 115200 |
| Camera Functions | |
| Day & Night mode | Day / Night |
| Digital Noise Reduction | OFF / Low / Middle / High / Auto |
| Digital Image Stabilization | Available |
| High/Back Light Compensation (HLC/BLC) | Off / BLC / HLC |
| Defog | Available |
| Motion detection | Detection OFF / 3 positions |
| Privacy mask | Mask OFF / 8 positions |
| Defect detection | Detection ON/OFF |
| Connector Specification Harrier 3G-SDI Camera Interface Board | |
| KEL30 Connector (J1) | The interface board on the camera is fitted with a 30-way miniature connector to link to the video output connector on the camera. Connector type: KEL USL00-30L. Mating cable: A 30-way micro coaxial cable (AS-CIB-USL30-100MM) is supplied with the camera. Lengths available: KEL USL20-30SS-010-C (100mm length) or KEL USL20-30SS-005-C (50mm length). |
| Input/Output Connector (J2) | The interface board is fitted with an industry standard 4-way connector for Vsync/PWM signal output and test pattern/reset control inputs. Connector type: JST SM04B-SRSS-TB Mating cable: A suitable cable is available as part of the cable kit AS-CIB-CBLKIT-002-B (see ordering information). See Harrier 3G-SDI Camera Interface Board datasheet for pin assignments and control options. |
| Power and Control Connector (J3) | The interface board on the camera is fitted with an industry standard 9-way connector for power, serial control and analog video out. Connector type: JST SM09B-SRSS-TB Mating cable: A suitable cable is available as part of the cable kit AS-CIB-CBLKIT-002-B (see ordering information). See Harrier 3G-SDI Camera Interface Board datasheet for pin assignments and output options. |
| 3G-SDI Output Connector (J5) | The interface board is fitted with a Hirose H.FL Micro Coaxial Connector (75 Ohm). Connector type: Hirose Micro Coaxial Connector (Receptacle), part number H.FL-R-SMT(01). Mating connector: Use mating cable with 75 Ohm characteristic impedance, for example Hirose part number H.FL75-2LP-084H-A-100. A suitable cable is available as part of the cable kit AS-CIB-CBLKIT-002-B (see ordering information). |
| Analog Video Out (Pin 3, J3) | Standard resolution composite analog is simultaneously available in HD modes 720p50 (for PAL) and 720p60/59.94 (for NTSC). There are two options for the analog output, selectable via serial control: (a) the 1280 pixel wide HD image can be cropped to 960 wide, by cropping a 120 pixel strip off each side to make a 4:3 aspect ratio Standard Definition (SD) signal. (b) by pre-warping the image, such that when displayed on a HD monitor in the monitor’s stretch-to-fit mode, the original full-width HD signal will be displayed correctly at 16:9 aspect ratio. Both methods ensure the displayed pixels remain square and that the image is not distorted. |
| Video and Control Mode DIP Switch (SW1) | The interface board is fitted with a 4-way DIP switch to select various video output and control modes. The DIP switches to select the Video Format are read on power-up only. Therefore, to change mode using the DIP switches, power down the camera, set the switches and then power up the camera. DIP switches will only be effective for the operating modes supported by the camera currently in use. See Harrier 3G-SDI Camera Interface Board datasheet for the configuration of the DIP switch SW1. |
| Communications Mode Selection (SW2) | The interface board is also fitted with a 2-way DIP switch to select the serial communications standard. It allows to choose between RS-232 VISCA communications, RS-485 VISCA comms with RS-485 termination enabled, RS-485 VISCA comms with RS-485 termination disabled and TTL VISCA communications. See Harrier 3G-SDI Camera Interface Board datasheet for the details and configuration of the DIP switch SW2. |
| Digital Transmission Standard Selection (SW3) | The interface board is fitted with a 1-way DIP switch to select the SMPTE or HD-VLC digital output standards. OFF = SMPTE compliant output. ON = HD-VLC compressed output. |
| General | |
| Power requirement | 9 – 15V DC |
| Power consumption | 7.6W (typical) |
| Operating temperature | -5°C to +50°C |
| Storage temperature | -20°C to +60°C |
| Operating humidity | 0% to 90% (no condensation) |

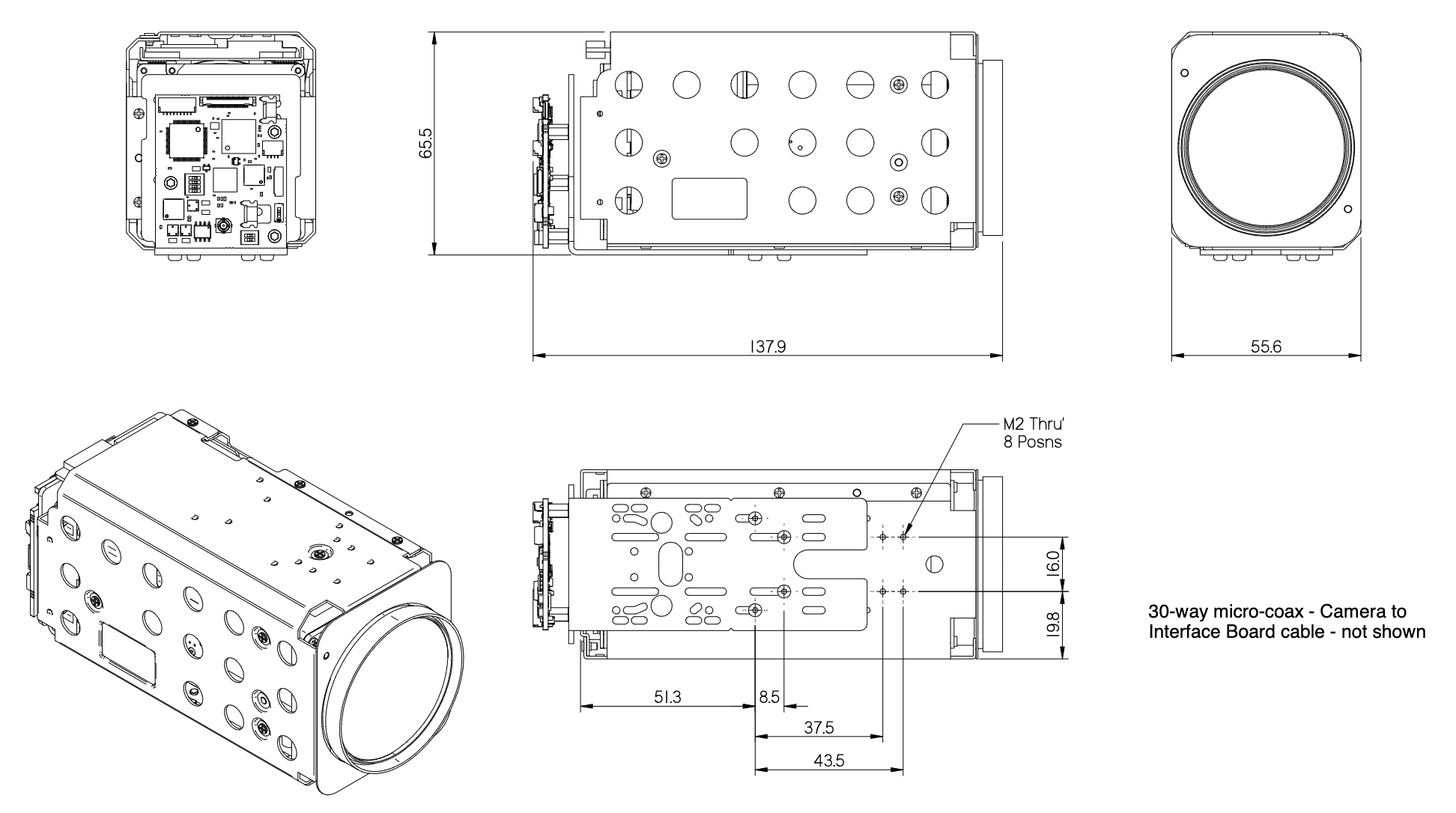

| Dimensions (L x W x H) | 138 x 55.6 x 65.5mm |
| Weight | 450g |
