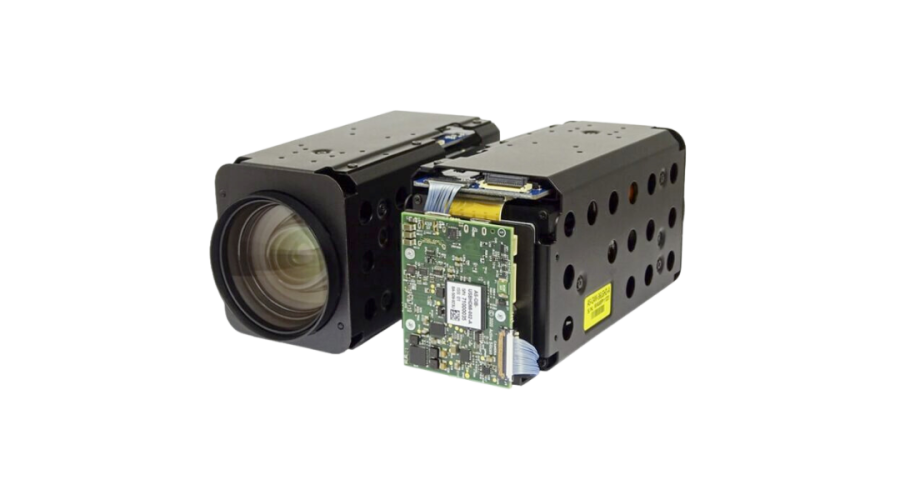

Harrier 36x AF-Zoom USB/HDMI
- Full HD high resolution autofocus-zoom camera.
- Simultaneous display of USB 3.1 Gen1 and HDMI display output.
- 36x Optical Zoom & 32x Digital Zoom.
- Video formats (HD): 1080p – 30/25 fps, 720p – 60/50/30/25 fps.
- 1/2.3-type Sony Pregius IMX392LQR-C CMOS sensor (global shutter).
- Effective number of pixels approx. 2,350,000.
- Shutter speed 1/30(25) – 1/20,000 sec.
- External trigger and strobe out capability.
- TTL/RS-232/RS-485 Serial VISCA, Pelco – D/P Control Protocol, or USB 3.1 (UVC) port.
- Virtual COM port for VISCA Control over USB.
- Power supply over USB cable capability.
| Model | Harrier 36x AF-Zoom USB/HDMI |
|---|---|
| Image sensor | 1/2.3-type Sony Pregius IMX392LQR-C CMOS sensor (global shutter) |
| Effective no. of pixels | Approx. 2,350,000 pixels |
| Video format (HD) | UVC 1.1 and HDMI 1.4: 1080p/30/25 fps, 720p/60/50/30/25 fps Camera LVDS : 1080p/60/50/30/25 (single LVDS mode), 720p/60/50/30/25 |
| Analog resolution | CVBS |
| Minimum illumination | Color(1/30s, 48dB) : 0.3 lux , Color DSS(1/2s, 48dB) : 0.06 lux |
| S/N ratio | more than 50dB (AGC off) |
| Gain control (AGC) | 0 – 10 steps |
| Shutter speed | 1/30(25) – 1/20,000 sec |
| Sync system | Internal |
| DSS | Off / 2x / 4x / 8x / 16x / 32x (/64x : 60 or 50fps mode only) |
| White balance | Auto, One Push, Manual, Indoor, Outdoor |
| AE (Auto exposure mode) | Auto, lris Priority, Shutter Priority, Manual |
| Lens (wide to tele) | Optical x36 Zoom, f=6mm to 216mm, F1.5 (wide) to F4.8 (tele) |
| Digital zoom | OFF / MAX 1x – 32x |
| Focusing system | Auto / One Push / Manual |
| Viewing angle (FOV) | FOV D H V Wide 59.1° 52.6° 31.1° Tele 2.3° 2.0° 1.1° |
| Minimum object distance (wide to tele) | 100mm (wide) to 1500mm (tele) |
| Control protocol | Serial VISCA (RS-485/RS-232/TTL/USB (via the Harrier Serial COM port). Pelco-D / Pelco-P. USB interface (UVC). |
| Baud rate | 9600 / 19200 / 38400 / 115200 |
| Camera Functions | |
| Day & Night mode | Day / Night |
| Digital Noise Reduction | OFF / Low / Middle / High / Auto |
| Digital Image Stabilization | Available |
| High/Back Light Compensation (HLC/BLC) | Off / BLC / HLC |
| Defog | Available |
| Motion detection | Detection OFF / 3 positions |
| Privacy mask | Mask OFF / 8 positions |
| Defect detection | Detection ON/OFF |
| Connector Specification | |
| KEL30 Connector (J1) | The interface board is fitted with a 30-way miniature connector to link to the video output connector on the camera. Connector type: KEL USL00-30L. Mating cable: A 30-way micro coaxial cable (AS-CIB-USL30-100MM) is supplied with the camera. Lengths available: KEL USL20-30SS-010-C (100mm length) or KEL USL20-30SS-005-C (50mm length). |
| Input/Output Connector (J2) | The interface board is fitted with an industry standard 4-way connector for VSync/PWM signal output and test pattern/reset control inputs. Connector type: JST SM04B-SRSS-TB Mating cable: A suitable cable is available as part of the cable kit AS-CIB-CBLKIT-003-A (see ordering information below). See Harrier USB/HDMI Camera Interface Board datasheet for pin assignments and control options. |
| Power and Control Connector (J3) | The interface board is fitted with an industry standard 10-way connector for power and serial control. Connector type: JST SM10B-SRSS-TB Mating cable: A suitable cable is available as part of the cable kit AS-CIB-CBLKIT-003-A (see ordering information below). See Harrier USB/HDMI Camera Interface Board datasheet for pin assignment and output options. |
| HDMI Output Connector (J5) | The interface board is fitted with a micro HDMI display output connector. HDMI output is active when an HDMI cable is connected. Connector type: HDMI Type D (micro). Mating Connector: Standard micro HDMI cable. |
| USB 3.0 Connector (J6) | This USB Type C connector provides a USB Video Class (UVC) v1.1 video stream for connection to a host PC. The connector also provides a UVC control port for camera control (optional). It can also provide power to the camera or board if the USB connection has a high enough current/power rating. Connector type: USB Type C (5 Gbps) Mating Connector: Standard USB 3.x Type A/C to Type C cable (5 Gbps min.) |
| Video and Control Mode DIP Switch (SW1) | The interface board is fitted with an 8-way DIP switch (SW1) to enable selection of camera video format on power-up, and VISCA camera control communication modes. See Harrier USB/HDMI Camera Interface Board datasheet for the configuration of the DIP switch elements. |
| General | |
| Power requirement | 9 – 15V DC |
| Power consumption | 8.4W (typical) |
| Operating temperature | 0°C to +50°C |
| Storage temperature | -20°C to +60°C |
| Operating humidity | 0% to 90% (no condensation) |

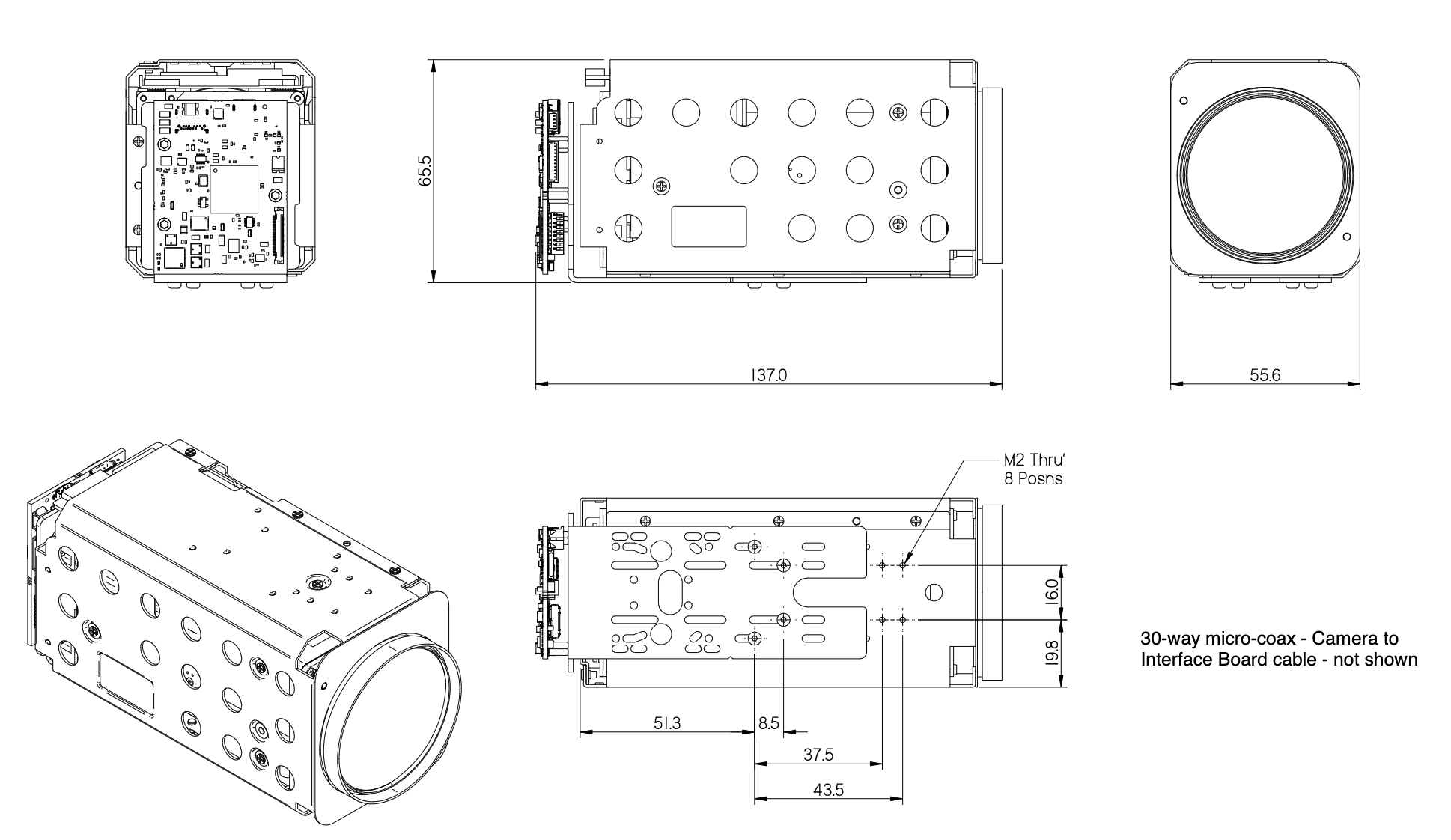

| Dimensions (L x W x H) | 137 x 55.6 x 65.5mm |
| Weight | approx. 454g |
