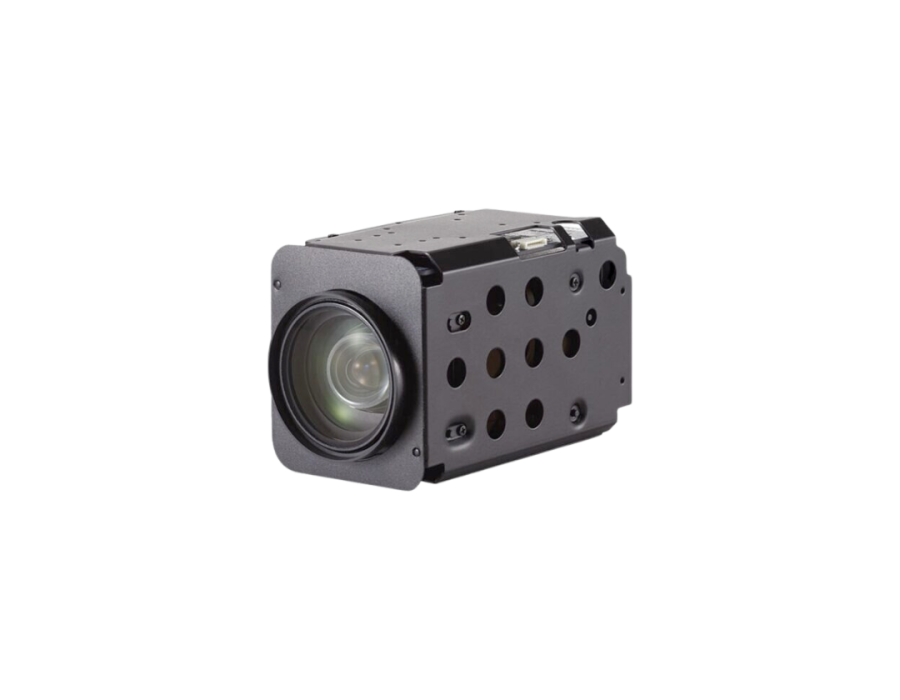

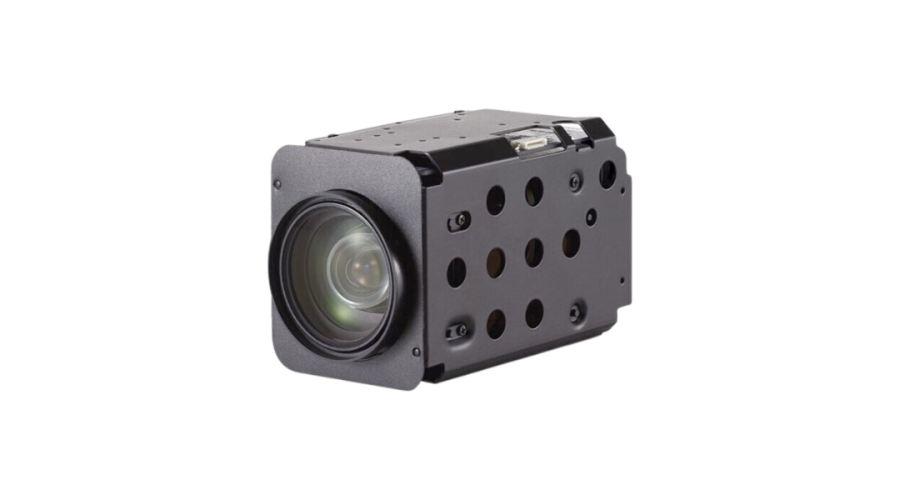

Harrier 40x AF-Zoom
- Full HD high resolution autofocus-zoom camera.
- 1/2.8-type 2MP Sony IMX462 STARVIS CMOS sensor.
- Output: LVDS, CVBS.
- Video formats (HD): 1080p – 60/30 fps, 720p – 60/30 fps.
- 40x Optical Zoom & 32x Digital Zoom.
- Effective number of pixels approx. 2,120,000.
- Shutter speed 1/30(25) – 1/30,000 sec.
- Dimensions (L x W x H): 101 x 54 x 64 mm.
- Serial VISCA, Pelco – D/P Control Protocol.
- Compatible with Active Silicon’s Harrier camera interface boards.
- Pre-assembled camera solutions available (3G-SDI, USB, HDMI, Ethernet IP).
| Model | Harrier 40x AF-Zoom |
|---|---|
| Video output | HD: LVDS Analog: CVBS |
| Image sensor | 1/2.8-type Sony IMX462 STARVIS CMOS sensor |
| Effective no. of pixels | Approx. 2,120,000 pixels |
| Sync system | Internal |
| Video format (HD) | 1080p 60(50)/30(25)fps, 720p 60(50)/30(25)fps |
| Analog resolution | CVBS |
| Minimum illumination | Color(1/30s, 79.5dB) : 0.01 lux , BW(1/30s, 79.5dB) : 0.002 lux Color DSS(1/1s, 79.5dB) : 0.001 lux , BW DSS(1/1s, 79.5dB) : 0.0002 lux |
| S/N ratio | more than 50dB (AGC off) |
| Lens Type | 40x Day & Night Zoom Lens |
| Zoom Ratio | Optical 40x, Digital 32x Zoom |
| Lens (wide to tele) | Optical x40 Zoom, f=4.25mm to 170 mm, F1.6 (wide) to F4.95 (tele) |
| Horizontal viewing angle (wide to tele) | 66.35° to 1.9° |
| Focusing system | Auto / One Push / Manual |
| Minimum object distance (wide to tele) | 0.1 – 10.0m (focus near limit range) |
| Zoom speed | 0 (Slow) – 7 (Fast) |
| Lens refresh | One Push / 1 – 10 Days |
| Digital zoom | OFF / MAX 2x – 32x |
| Zoom preset | 5 preset |
| Exposure mode | Auto, lris Priority, Shutter Priority, Manual |
| Gain control (AGC) | 0 – 10 steps |
| Shutter speed | 1/30(25) – 1/30,000 sec |
| Iris | Close – F1.6 |
| Digital Slow Shutter (DSS) | Off / 2x / 4x / 8x / 16x / 32x (x64: 60 or 50fps mode only) |
| Flickerless | Off / On / Auto |
| Brightness | 0 – 14 steps |
| Back Light | Off / BLC / HLC / WDR (BLC – Back Light Compensation, HLC – High Light Compensation, WDR – Wide Dynamic Range) |
| Day & Night | Auto / Day / Night / Ext-in |
| White balance mode | Auto, One Push, Manual, Indoor, Outdoor, Auto-Ext |
| Red Gain | 0 – 100 steps (Manual mode only) |
| Blue Gain | 0 – 100 steps (Manual mode only) |
| Chroma | 0 – 20 steps |
| Hue | 0 – 20 steps |
| System (analog) | NTSC / PAL |
| Control protocol | Serial VISCA Pelco-D / Pelco-P |
| Baud rate | 2400 / 4800 / 9600 / 19200 / 38400 / 57600 / 115200 |
| Camera Functions | |
| Digital Noise Reduction (DNR) | 2D/3D, 2D+3D (Level: 0 ~ 15 steps) |
| Mirror | Off / H / V / H&V |
| Sharpness | 0 – 15 steps |
| Contrast | 0 – 20 steps |
| Image Bright | 0 – 20 steps |
| DWDR | Off / Manual / Auto (DWDR – Digital Wide Dynamic Range) |
| Defog | OFF / Manual / Auto |
| Freeze | OFF / ON |
| Gamma | 0.35 – 0.70 |
| Privacy mask | OFF / ON (8 masks) |
| Motion detection | OFF / ON (4 regions) |
| DIS | OFF / ON (DIS – Digital Image Stabilizer) |
| Defect detection | OFF / ON |
| General | |
| Power requirement | 9 – 15V DC |
| Power consumption | Max.: 7.2W (when motor in operation for zoom or focus) |
| Operating temperature | -10°C to +50°C |
| Storage temperature | -20°C to +60°C |
| Operating humidity | 0% to 90% (no condensation) |

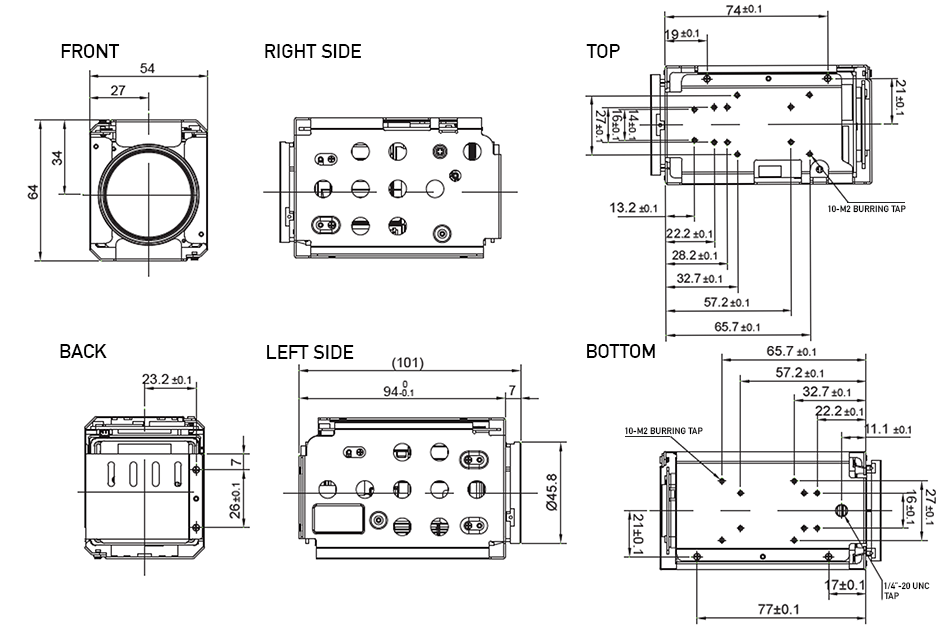

| Dimensions (L x W x H) | 101mm x 54mm x 64mm (L x W x H) |
| Weight | 355g |
