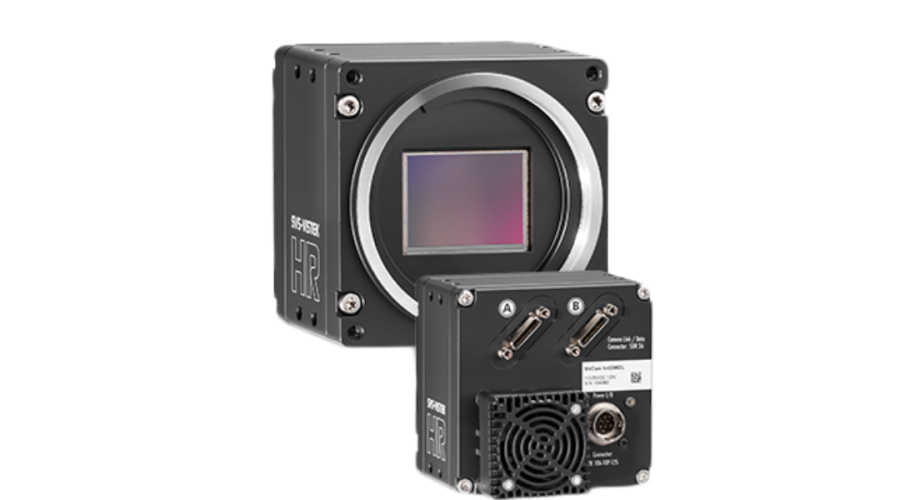

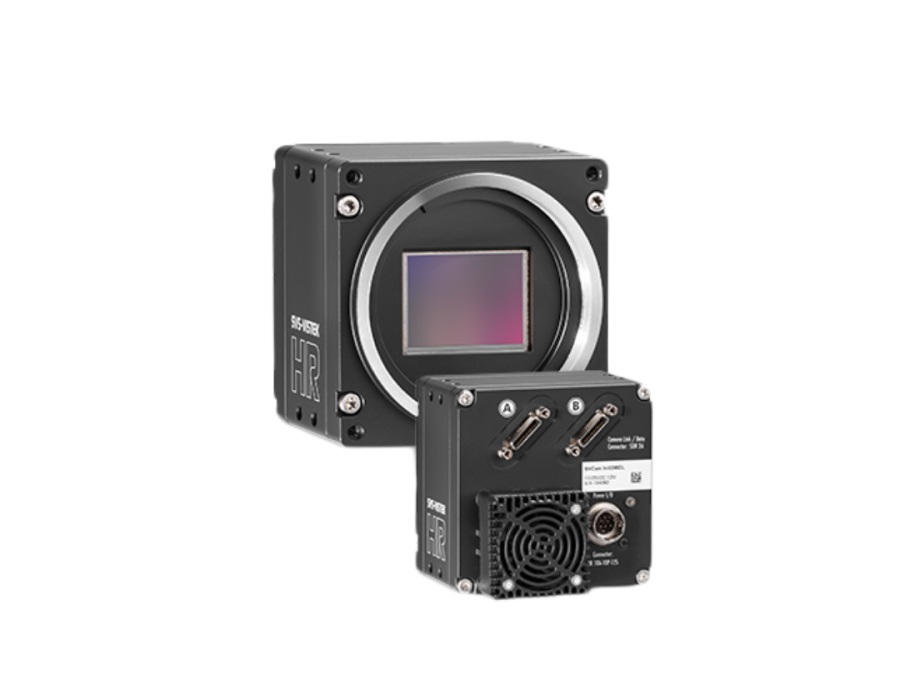

The HR Camera link provides high data rates, deterministic timing, and direct access to the image sensor. Our high-resolution industrial cameras equipped with Camera Link offer a wide range of core features. With Camera Link, you can adjust settings and operating modes that other interfaces don’t allow, such as setting the pixel clock for CCD sensors, enabling 4 x 4 binning for CCD sensors, utilizing particle image velocimetry on certain CCD sensors, and implementing Power over Camera Link (PoCL).

Technical Highlights:

• User defined defect pixel correction
• Lens shading correction
• ROI, LUT, binning, gamma, offset
• Integrated multichannel LED strobe controller
• Industrial TTL-24V I/O interface with Safe Trigger, programmable logic functions, sequencer, timer, RS232
• Power over Camera Link (PoCL)
