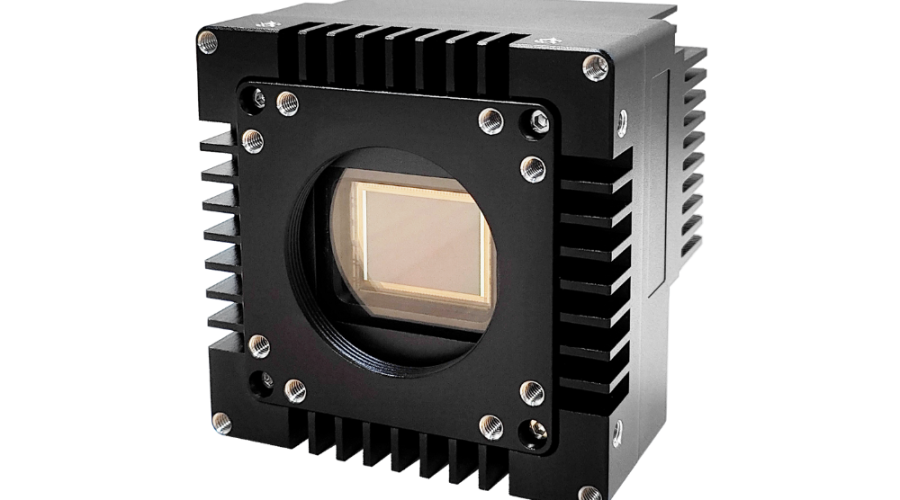

HS65MCXP-31M
Highlight Features
- GMAX3265, Global Shutter CMOS
- Up to 230fps Frame Rate
- High Sensitivity and Low Noise
- Rich Features: Binning,FFC,ROI,etc
| Model | HS65MCXP-31M | HS65MCXP-31C |
|---|---|---|
| Description | 65MP CoaXPress High Speed Area Scan Camera | |
| Sensor | GMAX3265 | |
| Resolution | 9344 * 7000 | |
| Pixel Size | 3.2um | |
| Image Mode | Mono | Color |
| Optical Size | 37.36mm | |
| Dynamic Range | ≥62.0dB | |
| SNR | 40.0dB | |
| Max Frame Rate | 31.59fps@8bit,28.44fps@10bit,23.70fps@12bit | |
| Data Format | 8/10/12bit | |
| Data Rate | 2325MB/s | |
| Exposure Control | External PWM / Timed | |
| Exposure Time | 14us~4s (step: 1us) | |
| Trigger Mode | Free-Run / External Pulse / External PWM | |
| Trigger Signal | CXP Signal / External IO Signal / Software Trigger Signal | |
| Analog Gain | 0~64dB | |
| Digital Gain | 0.1~8 | |
| Data Interface | CoaXPress | |
| Lens Mount | M42 * 1 / M58 * 0.75 | |
| Power Connector | HR10A-10R-12PB(71)(Male) | |
| Power Supply | DC 12~24V±10% 1.5A or PoCXP supply | |
| Power Consumption | 9.6W(DC supply) or 10.3W(PoCXP supply) | |
| Mechanical Dimensions | M42: 80.0mm x 80.0mm x 57.4mm | |
| M58: 80.0mm x 80.0mm x 56.9mm | ||
| Operation Temperature | 0~55℃ | |
| Storage Temperature | -20~75℃ | |
| Product Weight | 615.8g | |
