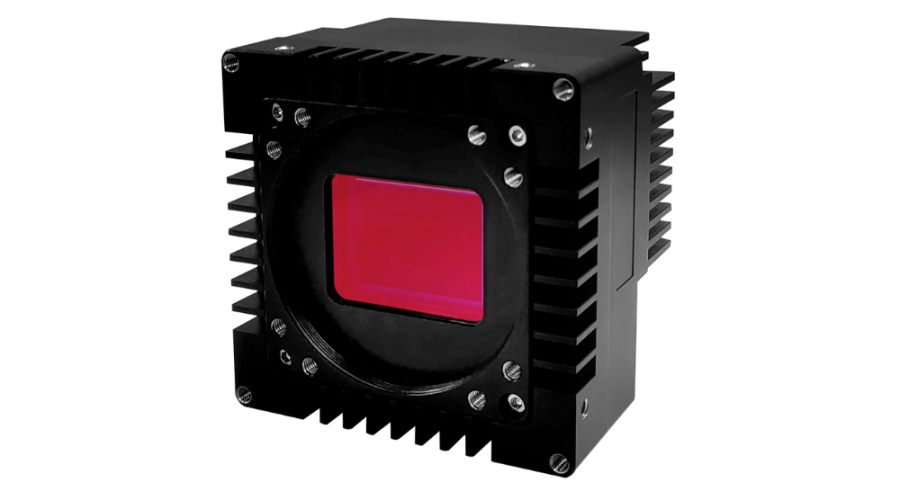

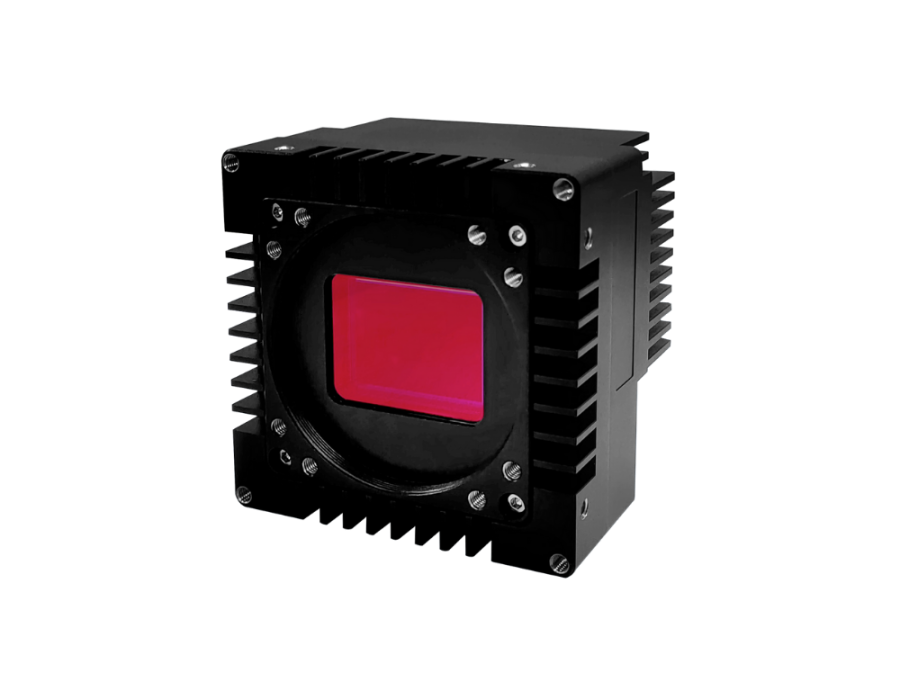

HS65MCXP12-71M
Highlight Features
- Global Shutter CMOS
- 9344 * 7000 pixels, 3.2μm * 3.2μm
- Frame rate up to 71fps
- High Sensitivity and Low Noise
| Model | HS65MCXP12-71M | HS65MCXP12-71C |
|---|---|---|
| Sensor | GMAX3265 | |
| Sensor Type | Global Shutter CMOS | |
| Image Mode | Mono | Color |
| Optical Size | 37.40 mm | |
| Resolution | 9344 * 7000 | |
| Pixel Size | 3.2μm * 3.2μm | |
| Max Frame Rate | 70.99fps@8bit，57.05fps@10bit | |
| Bit Depth | 8/10 bit | |
| Dynamic Range | ≥61.9 dB | |
| Data Rate | 2434MB/s(mono)；4790MB/s(color) | |
| Trigger Mode | Free run / External trigger | |
| Trigger Source | External IO / CXP Trigger | |
| Exposure Control | Pulse Width Control, Timed | |
| Exposure Time | 12μs-4s | |
| Analog Gain | 0-64dB | |
| Digital Gain | 0.1-8.0x | |
| Lens Interface | M42 / M58 Mount | |
| Data Interface | CoaXPress12 | |
| Power Interface | Hirose HR10A-7R-6PB(Male) | |
| Power Supply | DC 12~24V (±10%) 2.0A or PoCXP power supply | |
