JAI GOX-24505C-CXP
A small, attractively-priced industrial area scan camera.
Main > Product > Area Scan camera > CoaXpress Cameras > GOX-24505C-CXP

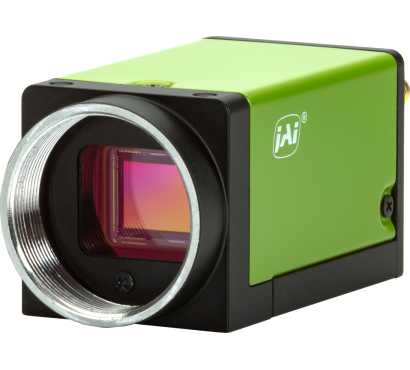

JAI GOX-24505C-CXP
The GOX-24505C-CXP is a small, attractively-priced industrial area scan camera offering a blend of features, image quality, and industrial grade reliability perfect for the next generation of machine vision systems. Featuring a state-of-the-art Sony Pregius S sensor with backside illumination (BSI) technology, and a CoaXPress 6.25 Gbps interface, the GOX-24505C-CXP delivers 24.5-megapixel monochrome images at up to 24 fps.
| Model | GOX-24505C-CXP |
|---|---|
| Type | Area Scan |
| Color/Mono | Color |
| Light Spectrum | Visible |
| Resolution | 24.5 MP |
| Resolution WxH | 5328 x 4608 px |
| Frame rate / Line rate | 24 fps |
| ROI | Yes |
| Interface | CoaXPress-1-Cable (PoCXP) |
| Sensors | 1XCMOS |
| Sensor Name | IMX540 |
| Optical Format | 1.2 inch |
| Cell Size WxH | 2.74 x 2.74 µm |
| Shutter type | Global shutter |
| Sensor Diagonal | 19.3 mm |
| Active Sensor Dimensions WxH | 14.6 x 12.6 mm |

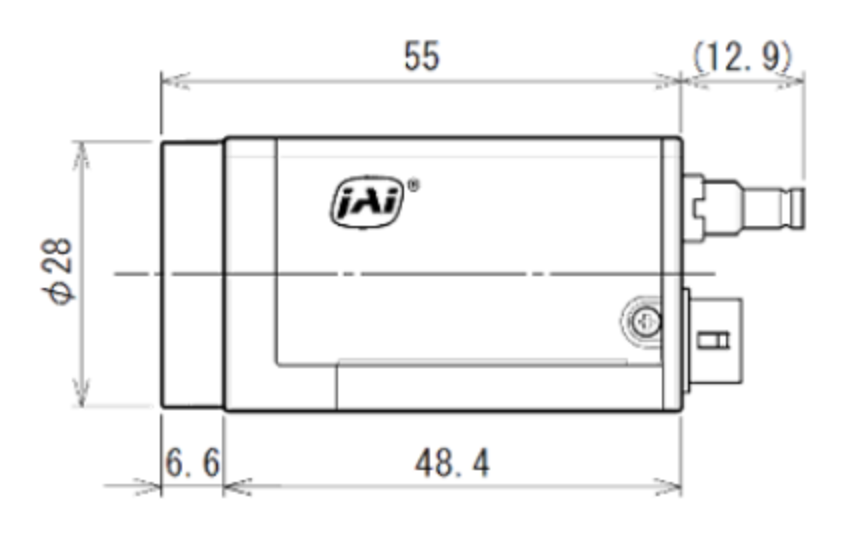

| Camera Dimensions HxWxL | 29 x 29 x 55 mm |
| Weight | 60 g |
| Video Output | 8/10/12-bit * |
| Lens Mount | C-mount |
| Power Consumption | 4.1 Watt |
| Operating Temperature (ambient) | -5°C to +45°C |
