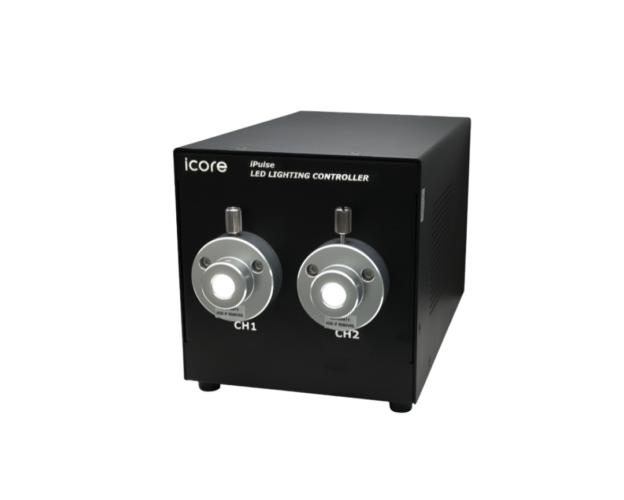

Light Source
Product Features
It optimises the built-in LED’s lighting control and designs the power circuit to drive the LED at an instant 1,000W and generates a lighting pulse of at least 0.5㎲ (world’s best level). Moreover, it features a very fast response of 0.5㎲ to improve the overall system speed without a delay when synchronising with external signals.
Application
- Secondary Battery Inspection
- Display Inspection
- Wafer Inspection
- SMT Inspection
- PCB Inspection
- Automotive Inspection
- Package Inspection
- Web Inspection
| Model | iL1001 | iL1002 | iL2001 | iL2002 |
|---|---|---|---|---|
| CH | 1 | 2 | 1 | 2 |
| Output Power (Continuous/Pulse) | 100W / 700W | 150W / 1000W | ||
| Continuous Brightness | 0 ~ 100% | |||
| Pulse Brightness | 0 ~ 100% | |||
| Minimum Pulse Width | 0.5㎲ | |||
| Maximum Strobe Cycle | 300kHz | |||
| Optical Fiber | 15 mm | |||
| Interface | RS-485, RS-232 | |||
| Over Driving | 0 | |||
| Sequence control | 0 | |||
| Filter Wheel | Optional | |||
