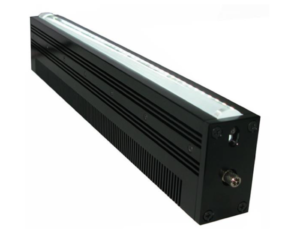

V2HLN-Si1000
A series of lighting of different lengths and intensities designed with Line scan application in mind.
Main > Product > Machine Vision Lighting > Line Light with Cylindrical Lens V2LN Series > V2HLN-Si1000
V2HLN-Si1000
Line Light with Cylindrical Lens V2LN Series is focused by a cylindrical lens to increase full intensity at the object or inspection area. UV models are available for this series.
Illumination Structure:
This line light is focused by a cylinder lens to achieve a focused beam.
V2HLN-Si1000 is super bright lighting; avoid staring at exposure lighting when operating. Useful for applications that need to be visible at long distances and is recommended as strobe lighting to perform high-brightness lighting with a longer life span.
Ordering Information
Models with Resistors : V2HLN-Si1000-W
Models without Resistors : V2HLN-Si1000-W-O
Example : Model for White version with no resistor : “V2HLN-Si1000-W-O”, Model for White version with resistor “V2HLN-Si1000-W”
