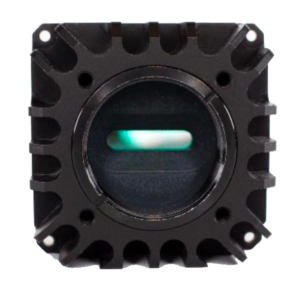

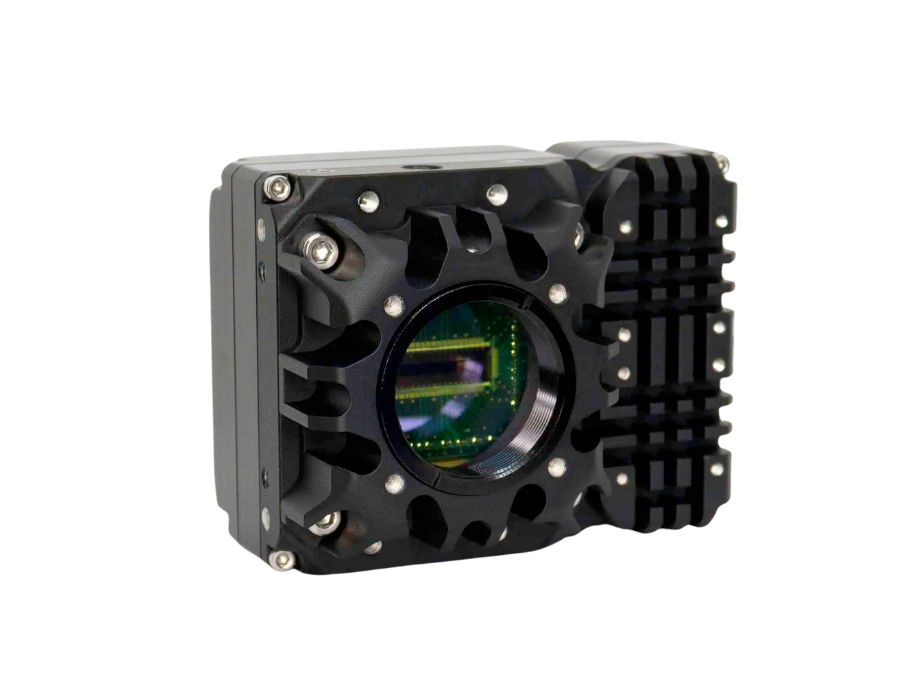

NIT LiSaSWIR 2048
The LiSaSWIR 2k integrates control of temperature to improve the
intrinsic characteristics of the sensor. This series comes with superb image quality and superb value. The compact size also has a built-in non-uniformity correction.
| Model | LiSaSWIR 2048 |
|---|---|
| Sensor type | InGaAs (0.9-1.7 spectral response) |
| Pixel pitch | 8𝜇𝑚 |
| Pixel height | 14 𝜇𝑚 |
| Resolution | 2048x1 |
| Sensor noise | High gain (CDS): <80𝑒− • Medium: < 370𝑒− • Low: <2200𝑒− |
| Dynamic range | High gain (CDS): 55dB typical • Medium: 62dB typical • Low: 66dB typical |
| Peak QE | >80% |
| Frame rate | >110kHz Full resolution |
| Sensor Readout | Global shutter ITR (Integrate Then Read) and IWR (Integrate While Read). |
| Sensor modes | 3 gain setting: High, Medium, Low |
| Output data range | 14 bit ADC – (4400DL effective data range) |
| Output Type | Cameralink base 8/10/12/14 bits pixel formats. Configurable output geometry: 1X_1Y / 1X2_1Y / 1X3_1Y |
| Exposure time | Minimum Integration time: 1us Controlled by camera register or Trigger width |
| Trigger | Internal/External (LVTTL) Software Trigger Trigger over Cameralink |
| Trigger delay | User-Selectable |
| Partial reading mode | Region of Interest (ROI). User-Selectable with a step of 8 pixels. Maximum FPS increase with reduced ROI. |
| AGC (Histogram Stretching) | Once/Manual. Once: Automatic selection of gain and offset by camera based on next captured line. Manual: User-Selectable gain and offset. |
| NUC correction | Correction 1-Point or 2-Point. 2 Point factory calibrated. (25°C sensor Temperature) |
| Bad pixel correction | Factory calibrated Bad Pixel Map |
| File Management | Upload/Download via camera communication interface Firmware Update. Correction table (NUC and BPM) download and upload. File management software provided (Windows compatible) |
| Temperature monitoring | Mainboard & Image Sensor |
| User Configuration | 4 User-defined presets. Selectable boot-up preset. |
| Image Flip | Horizontal |
| Power consumption (12V supply) | Camera: <4W • Cooling: User-Selectable TEC power limit o Off o Low : <1W o Medium : <2W o High : <5W (Default, user defined value) |
| Supply voltage range | 6 to 24V (Overvoltage, reverse polarity protection). POCL |
| Storage temperature | -40 to +80°C |
| Operating temperature | -40 to +71°C |

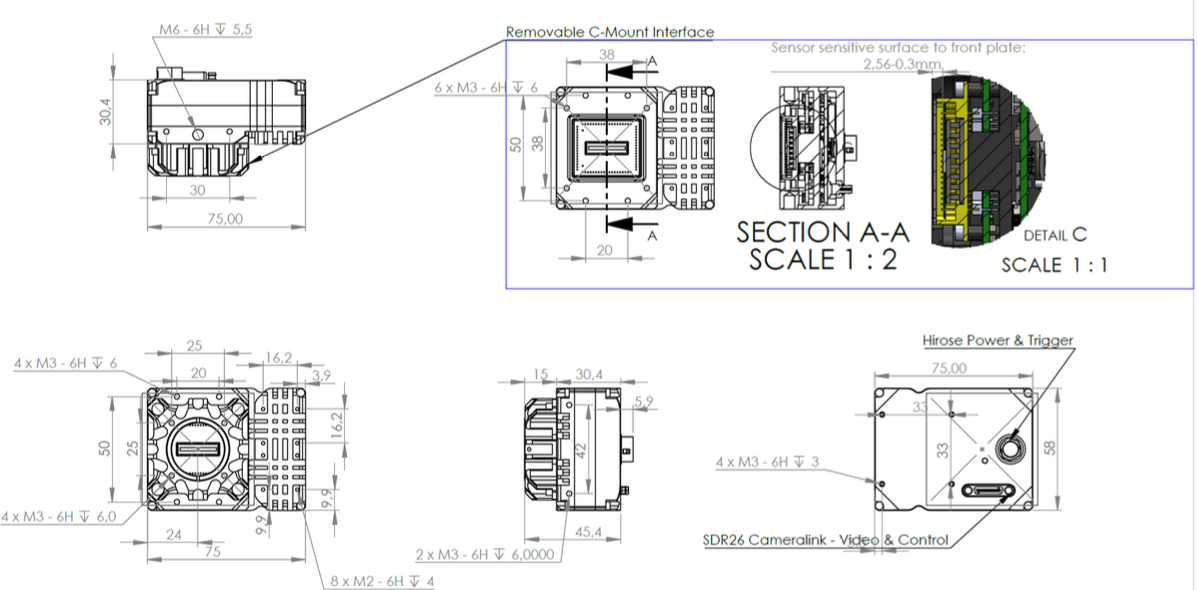

| Size (WxHxL, mm) | 35.4 x 75 x 68mm |
| Weight | 280g |
| Lens mount | C-Mount |
