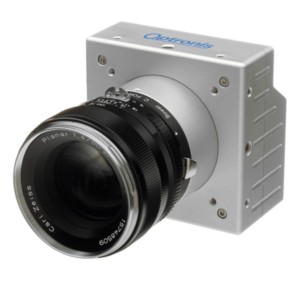

Optronis CP70-2-C-1000
The CP70-2-M/C-1000 camera of the CamPeform-CP series provides full HD resolution at more than 1000 fps. Large Pixels with 10 µm x 10 µm pitch result in high light sensitivity. Low noise designs ensures accurate data to simplify measurement tasks.
Reducing window size in vertical but also horizontal direction leads to higher Maximum Frame rate. The camera provides adjustments for gain and offset. A factory set lookup table (LUT) is implemented. The LUX19HS sensor is operated in global shutter mode and is availabel in monochrome and color version.
| CP70-2-M-1000 / CP70-2-C-1000 | |
|---|---|
| Sensor Resolution | 1920 x 1080 |
| Frame Rate | 1087 frames per sec. |
| Highest Frame Rate | 250 000 frames per sec. |
| Interface | CoaxPress 1.1 |
| Increase of Frame Rate | Yes |
| Reduction of Sensor Resolution | Horizontal / vertical |
| Sensor | LUX19HS, Global Shutter |
| Sensor Pixel / Distance between Pixels | 10 µm / square |
| Sensor Size | 22.09 mm |
| Lens Mount (option) | C-Mount, Nikon F-Mount, Nikon F-Mount (for G-series), M42 |
| Features | GenCam, EMVA 1288 |
| Cable | 75 Ohm coaxial, (e.g. RG59, RG6, RG11) Long Cable Lengths: In excess of 100 m (without any hubs, repeaters etc.) Low cost assembly and easy integration in moving arm applications |
| Trigger | Real time data transfer, control and trigger Low jitter and low latency |
| Bandwith | 6,25 GBit/s; Scalable up to 4 channels with 25 GBit/s in total |
| Power | Power over CoaXPress up to 13 Watt (PoCXP) |
| Protocol | Automatic Link Detection with Frame Grabber. GenICam Standard(XML file support and Plug & Play for machine vision) |
| Connectors | Standard BNC or DIN 1.0/2.3 |

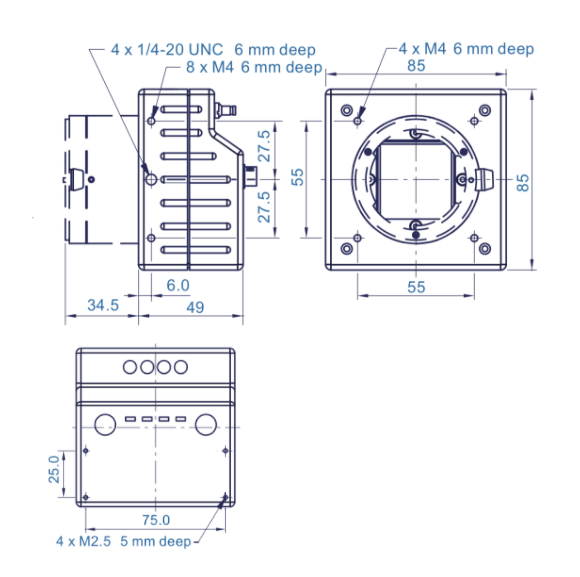

Mechanical Dimension CP80 Housing with F-Mount
