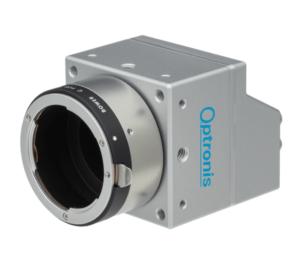

Optronis Cyclone-5-700-C

With 5 Mega Pixel resolution at frame rate of more the 700 fps is reached with the Cyclone-5-700 camera of the CamPerform-Cyclone series. Even higher Frame rates can be reached at reduced Image height. The high resolution LUX51 sensor is integrated. This high performance chip operates in global shutter mode. It is available in a monochorme version and a color version.
The high resolution makes the Cyclone-5-700 perfectly suited for demanding applications in 2D- and 3D- measurement.

| Cyclone-5-700-M / Cyclone-5-700-C | |
|---|---|
| Sensor | LUX51 |
| Sensor Type | CMOS Global Shutter |
| Sensor Format | 1” |
| Sensor Resolution | 2560 X 1916 |
| Frame Rate | 693 frames per sec. |
| Highest Frame Rate | 95 057 frames per sec. |
| Interface | CoaXPress 2.0 |
| Increase of Frame Rate | Yes |
| Reduction of Sensor Resolution | Horizontal / vertical |
| Sensor | Color / black and white |
| Sensor Pixel / Distance between Pixels | 5.0 µm / square |
| Sensor Size | 16.0 mm |
| Lens Mount (option) | C-Mount, Nikon F-Mount, Nikon F-Mount (for G-series), M42 |
| Features | GenCam, EMVA 1288 |
| Cable | 75 Ohm coaxial, (e.g. RG59, RG6, RG11) Long Cable Lengths: In excess of 100 m (without any hubs, repeaters etc.) Low cost assembly and easy integration in moving arm applications |
| Trigger | Real time data transfer, control and trigger Low jitter and low latency |
| Bandwith | 6,25 GBit/s; Scalable up to 4 channels with 25 GBit/s in total |
| Power | Power over CoaXPress up to 13 Watt (PoCXP) |
| Protocol | Automatic Link Detection with Frame Grabber. GenICam Standard(XML file support and Plug & Play for machine vision) |
| Connectors | Standard BNC or DIN 1.0/2.3 |

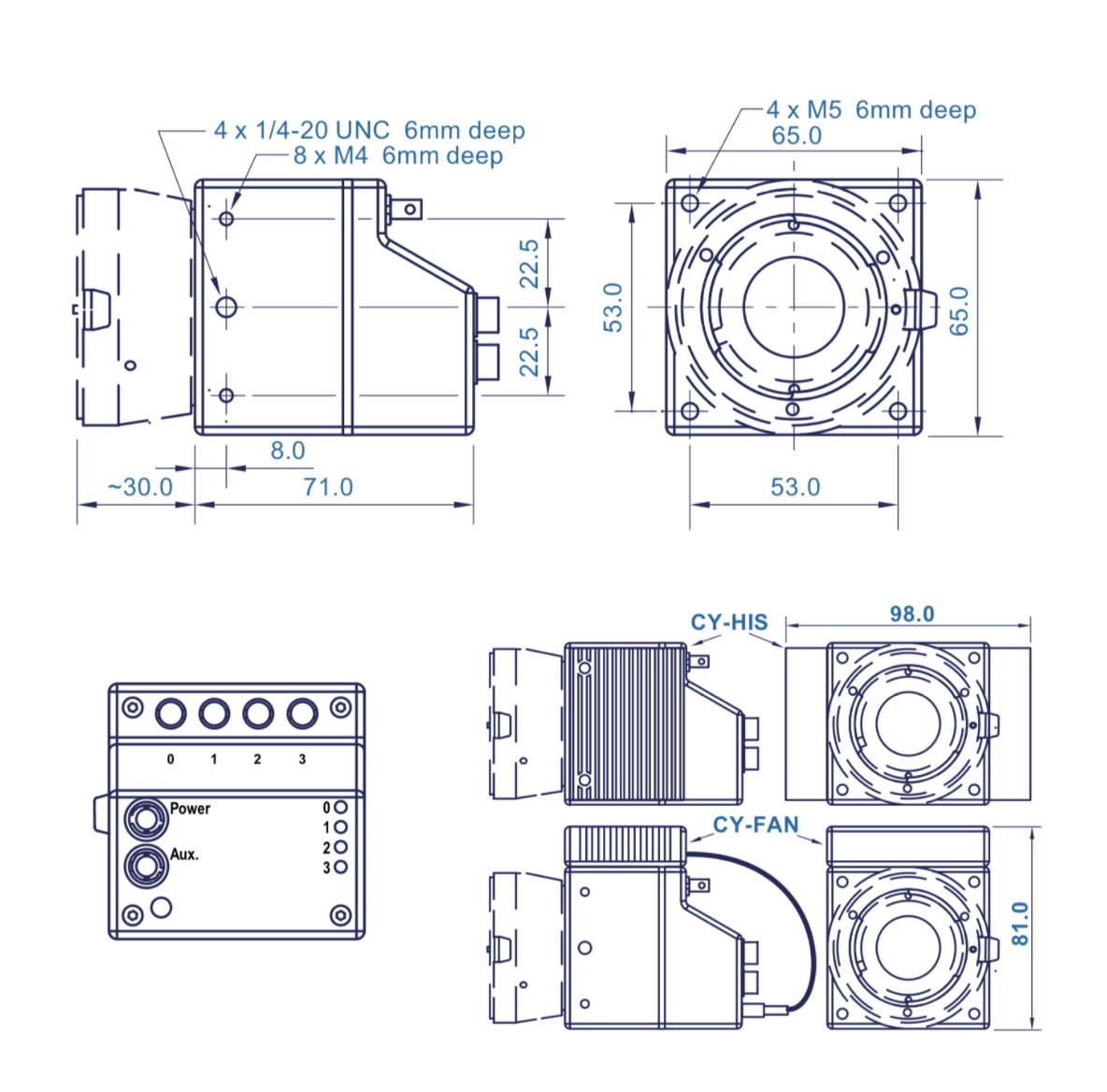

Mechanical Dimension Cyclone Housing with F-Mount
