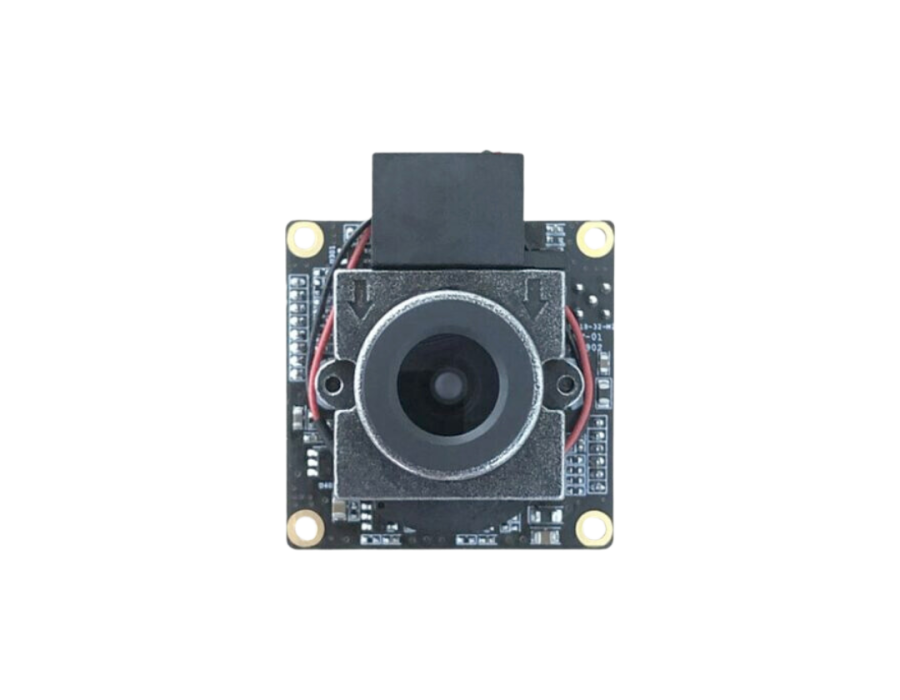

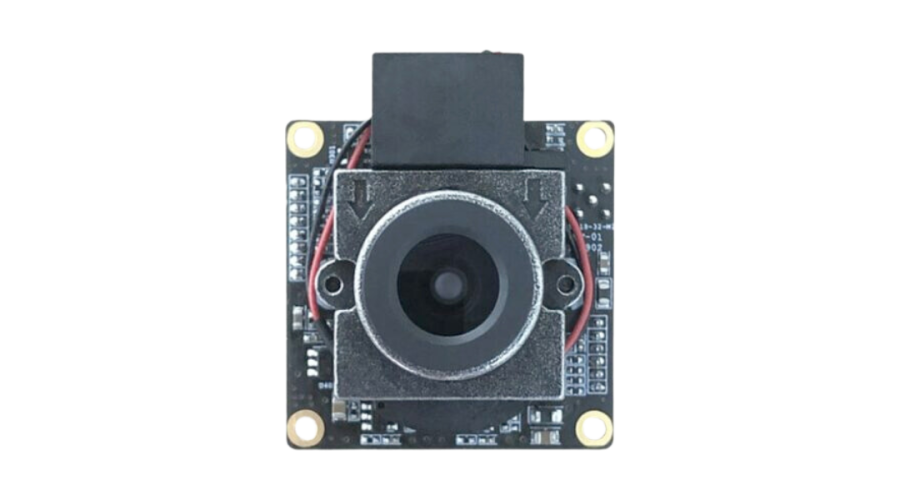

Oriole HD-SDI Board
- 1/3″ 2MP Nuvoton (Panasonic) MN34422 CMOS sensor.
- Output: HD-SDI/EX-SDI and CVBS
- 1080p – 30/25 fps, 720p – 60/50/30/25 fps.
- Digital zoom: 2x – 32x.
- Real-time True Wide Dynamic Range (WDR).
- Digital Noise Reduction (2D+3D DNR).
- Digital Image Stabilization.
- High Light Compensation (HLC/BLC).
- VISCA and Pelco-D/P Control Protocol.
- Includes ICR (switchable IR-cut filter).
- 3.6mm Standard M12 lens
| Model | Oriole HD-SDI Board |
|---|---|
| Image sensor | 1/3-type 2.5M Nuvoton (Panasonic) MN34422 CMOS sensor (progressive scan) |
| Active pixels | Approx. 2,300,000 pixels |
| Video output | SDI/EX-SDI (MMCX connector), CVBS (header connector) |
| Video format (HD) | 1080p 30/25fps, 720p 60/50/30/25fps |
| Analog resolution | VBS (without WDR) PAL/NTSC |
| Minimum illumination | Color (1/30s): 0.03 lux , BW (1/30s) : 0.004 lux Color DSS (1/8s) : 0.0075 lux , BW DSS (1/8s) : 0.001 lux |
| Lens | M12 (3.6mm focal length standard fit) |
| Gain control (AGC) | Off / On |
| Brightness | 0 – 20 steps |
| Shutter speed | Auto / Manual 1/30 (1/25) ~ 1/30,000 sec |
| DSS | Off / 2x / 4x (/8x : 60 or 50fps mode only) |
| Flickerless | On / Off |
| WDR/BLC | Off / WDR / BLC |
| Digital Zoom | 2x – 32x |
| Day & Night | Auto / Day / Night / Ext |
| White balance | Auto, One Push, Manual, Indoor, Outdoor |
| Comms. ID | 1 – 255 |
| Control protocol | VISCA, Pelco-D/Pelco-P |
| Baud rate | 2400 / 4800 / 9600 / 19200 / 38400 / 57600 / 115200 |
| Camera Functions | |
| Digital Noise Reduction | Auto / Off / Low / Middle / High |
| Digital Image Stabilization | Off / On |
| High Light Compensation (HLC) | Off / On / Night Only |
| Defog | Off / On (Auto / Manual) |
| Freeze | Off / On |
| Gamma | 0.45 / 0.55 / 0.65 / 0.75 |
| Motion detection | Off / On (3 positions) |
| Privacy mask | Off / On (24 masks) |
| Defect detection | Off / On |
| Mirror | Off / H / V / H&V |
| Sharpness | 0 – 10 steps |
| Adaptive Contrast Enhancement (ACE) | Off / Low / Middle / High |
| General | |
| Power requirement | 12V DC ± 10% |
| Power consumption | ~ 3W |
| Operating temperature | -10°C to +50°C. |
| Storage temperature | -20°C to +60°C. |
| Humidity | 0% to 90% (no condensation) |

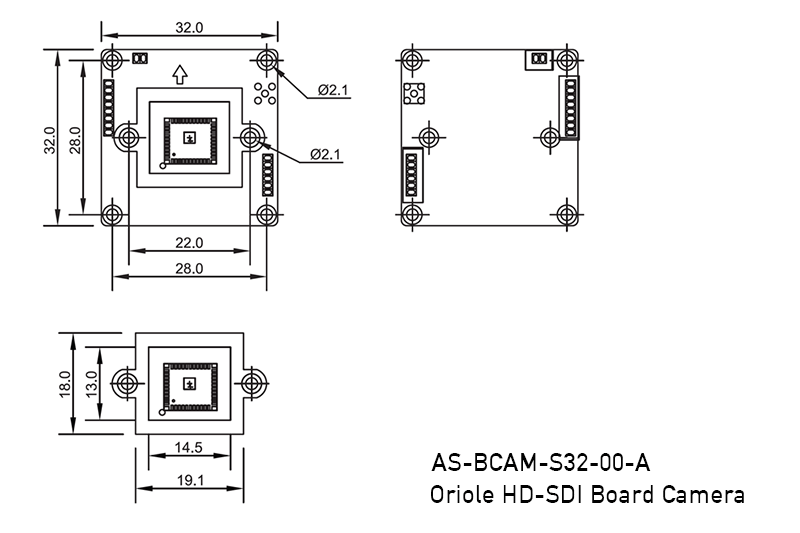

| Dimensions (L x W x H) | Board camera: 32x32x10mm Board camera with lens, mount and IR-cut filter: 32x38x31mm (L x W x H) |
| Weight | 26g (with IR filter and lens) |
