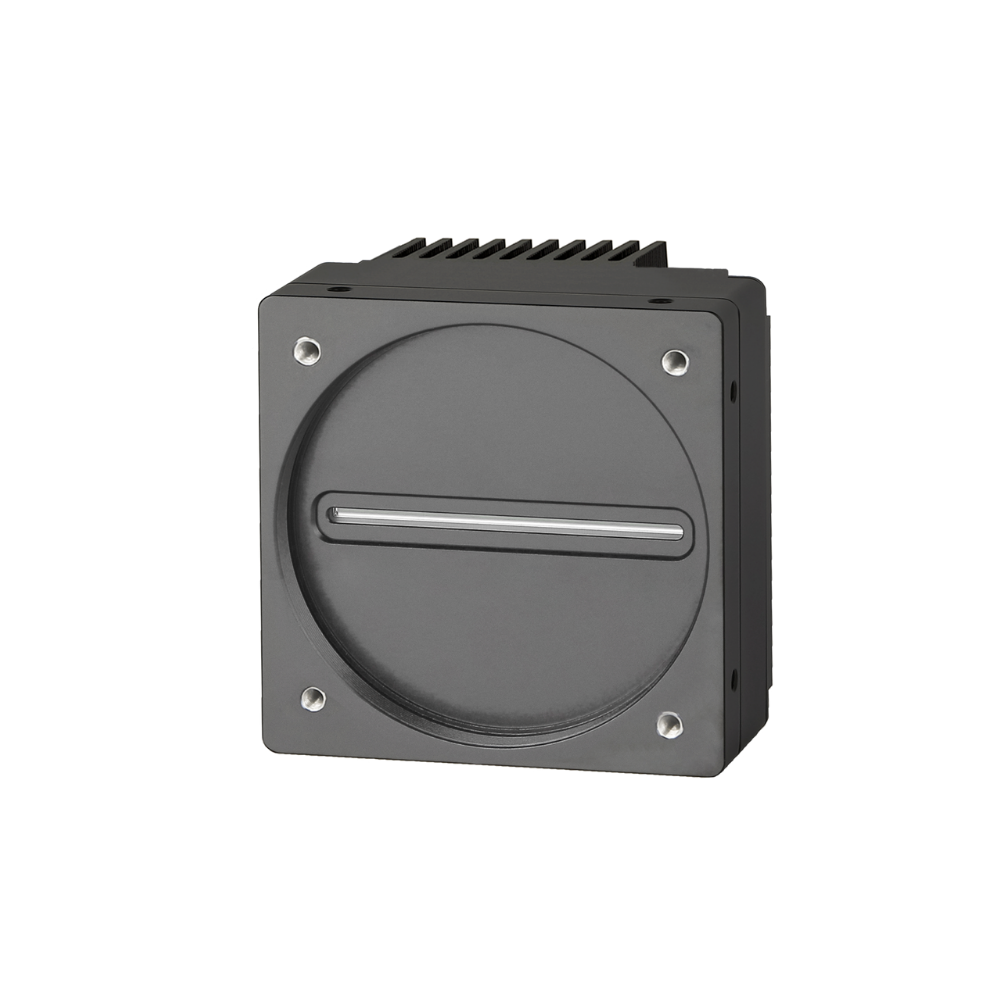

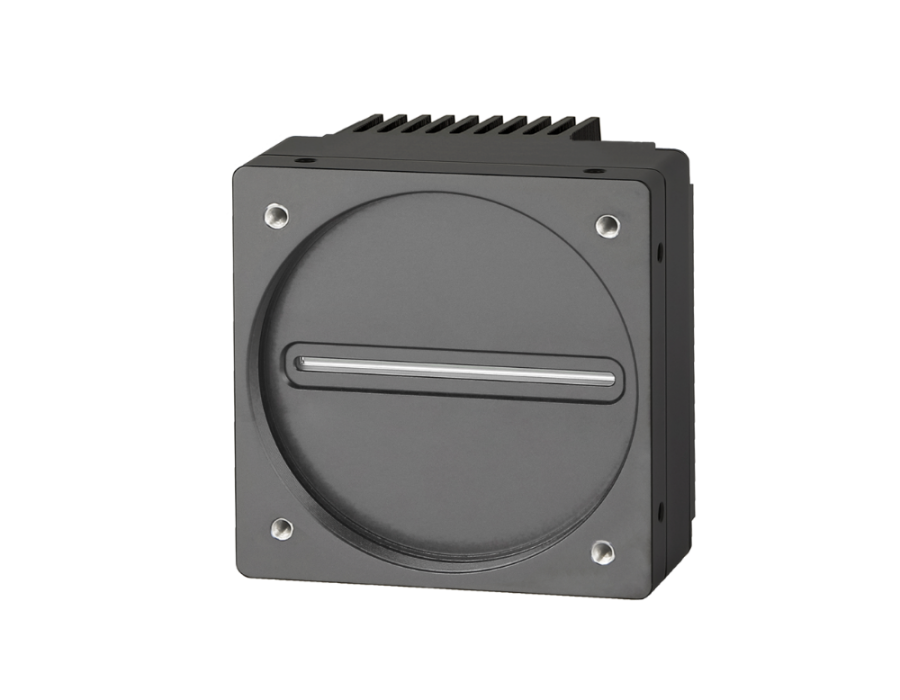

PA16KCXP-80KM
Highlight Features
- Global Shutter CMOS
- 16384 * 1 pixels, 3.5μm * 3.5μm
- Up to 80kHz Line Rate
- High sensitivity and Low noise
| Model | PA16KCXP-80KM |
|---|---|
| Sensor | DR16K3.5 |
| Image Mode | Mono |
| Optical Size | 57.34 mm |
| Resolution | 16384 * 1 |
| Pixel Size | 3.5μm * 3.5μm |
| Max Line Rate | 80kHz |
| Bit Depth | 8/10 bit |
| Dynamic Range | ≥65.7 dB |
| Data Rate | 1638 MB/s |
| Trigger Mode | Free-Run / External Pulse / External PWM |
| Exposure Control | Pulse width / Program |
| Exposure Time | 2μs-10s(Step:0.106μs) |
| Analog Gain | 1/2/4/8x |
| Digital Gain | 0.001-8.000x |
| Lens Mount | M72 * 0.75 |
| Data Interface | CoaXPress |
| Power Connector | Hirose HR10A-7R-6PB(Male) |
| Power Supply | DC12-24V(±10%) 1.5A |
| Power Dissipation | 8.6W |
| Dimensions | 82.0mm(W) x 82.0mm(H) x 51.5mm(D) |
| Operating Temperature | 0-65℃ |
| Storage Temperature | -20-75℃ |
