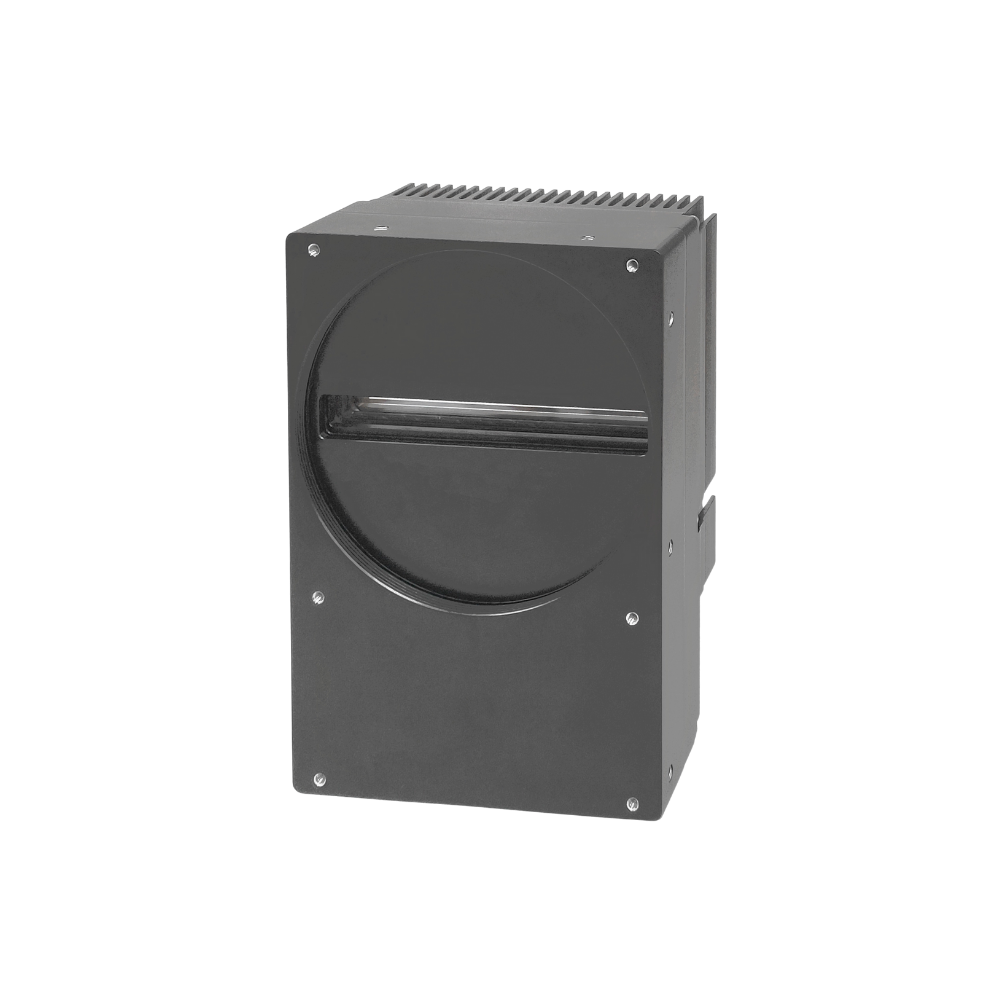

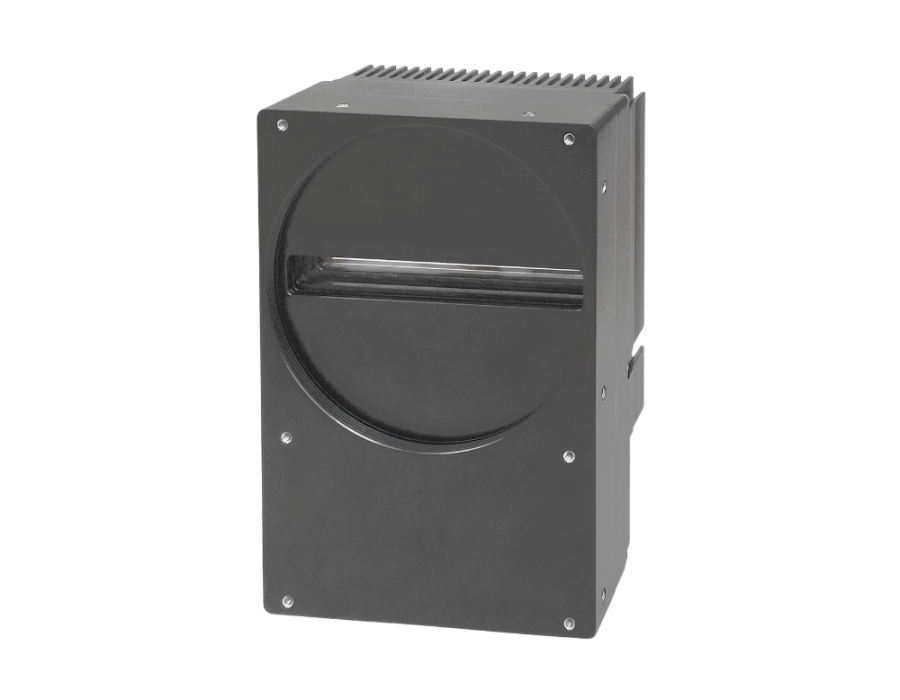

PH16KCXP10-200KT
Highlight Features
- 16384 * 256 pixels, 5μm * 5μm
- Up to 200kHz Line Rate
- High sensitivity and Low noise
- Backshot CCD
| Model | PH16KCXP10-200KT |
|---|---|
| Sensor | Backshot CCD |
| Image Mode | Mono |
| Optical Size | 81.92 mm |
| Resolution | 16384 * 256 |
| Pixel Size | 5μm * 5μm |
| Max Line Rate | 200kHz@8bit,190kHz@10bit,160kHz@12bit |
| Bit Depth | 8/10/12 bit |
| Dynamic Range | ≥66.7 dB |
| Data Rate | 3932 MB/s |
| Trigger Mode | External trigger / Internal free operation |
| Trigger source | Controlled by line frequency |
| Time of exposure | 5μs-1s(Step:0.01μs) |
| Analog Gain | 1-4x |
| Digital Gain | 0.004-8.000x |
| Lens Interface | M95 * 1 |
| Data Interface | CoaXPress |
| Power Interface | Hirose HR10A-7R-6PB(Male) |
| Power Supply | DC12-24V(±10%) 3.5A |
| Power Consumption | 15 W |
| Dimensions | 99.0mm(W) x 146.0mm(H) x 71.0mm(D) |
| Operating Temperature | 0-65℃ |
| Storage Temperature | -20-75℃ |
