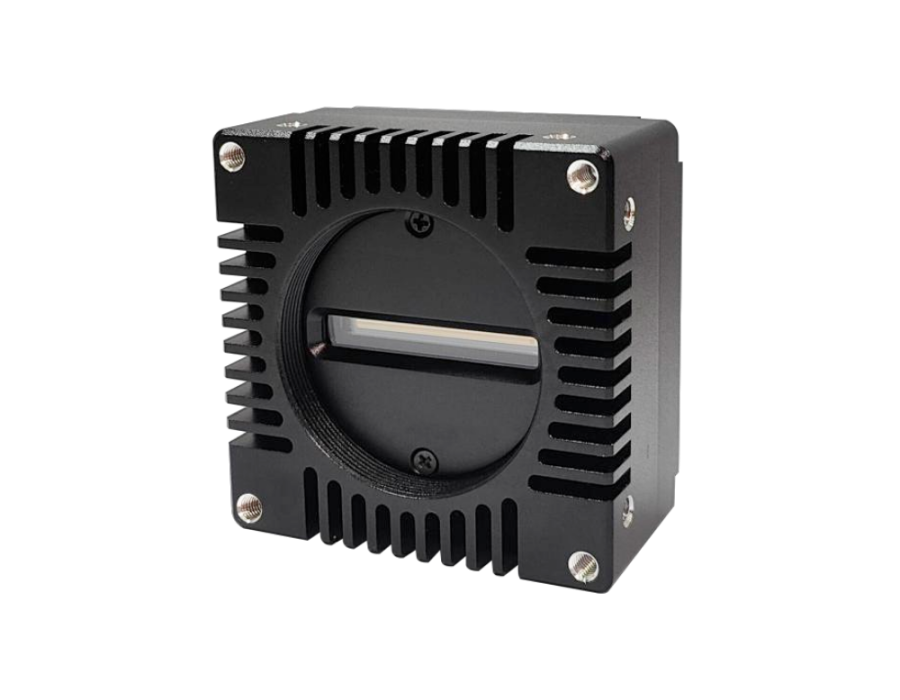

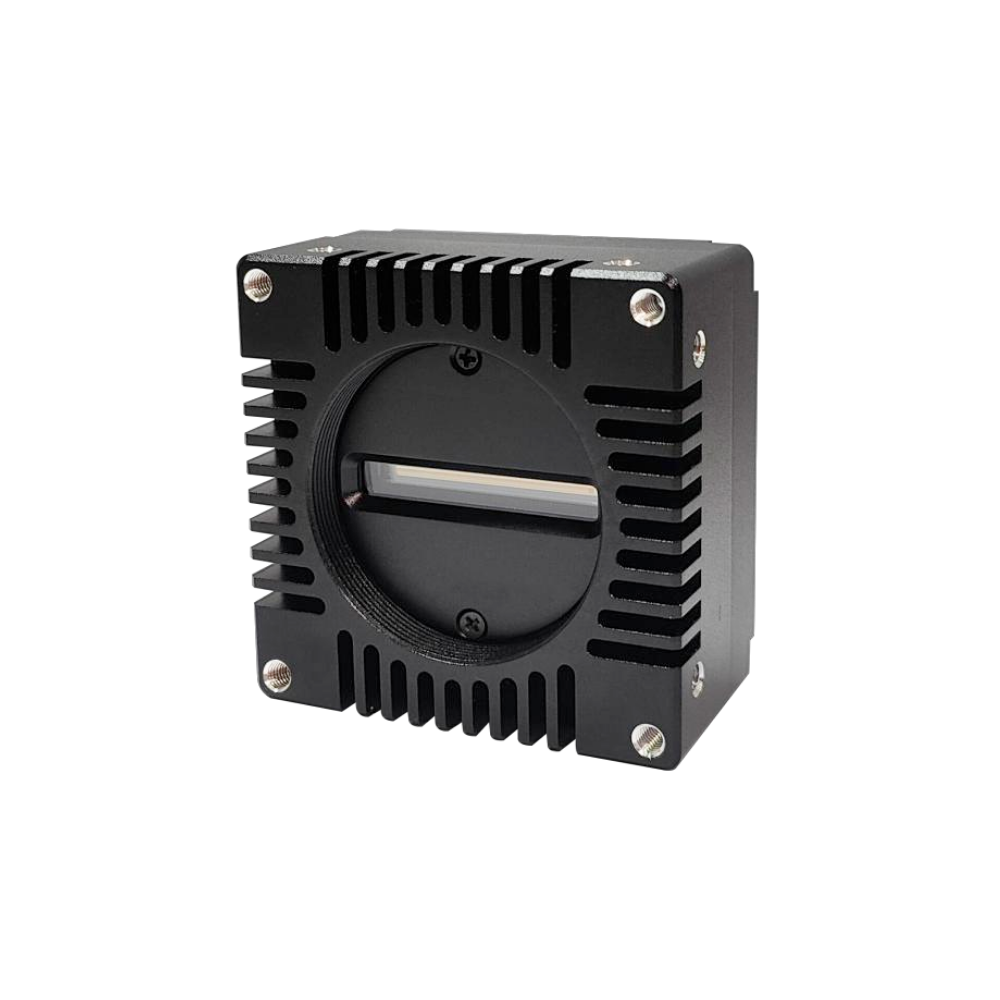

PN4K2G5V-25KC
Highlight Features
- Global Shutter CMOS
- 4096 * 3pixels, 7μm * 7μm
- Up to 25kHz Line Rate
- High sensitivity and Low noise
| Model | PN4K2G5V-25KC |
|---|---|
| Image Sensor | Global Shutter CMOS |
| Image Mode | Color |
| Optical Size | 28.67 mm |
| Resolution | 4096 * 3 |
| Pixel Size | 7μm * 7μm |
| Max Line Rate | 25.0 kHz |
| Bit Depth | 8 bit |
| Dynamic Range | ≥53.6 dB |
| Data Rate | 307 MB/s |
| Trigger Mode | Free-Run / External Pulse / External PWM |
| Exposure Control | Pulse width / Program |
| Exposure Time | 4.5μs-63997μs(Step:0.017μs) |
| Analog Gain | 1/2/3/4/5/6/7/8x |
| Digital Gain | 0.1-8.0x |
| Data Interface | 2.5 GigE Vision |
| Lens Interface | M42 * 1 |
| Outside trigger | RS422input |
| Power Supply | DC12-24V(±10%) 1.0A or PoE powered |
| Power Dissipation | 4.7W (DC power supply) |
| Dimensions | 62.0mm(W) x 62.0mm(H) x 37.5mm(D) |
| Operating Temperature | 0-55℃ |
| Storage Temperature | -20-75℃ |
