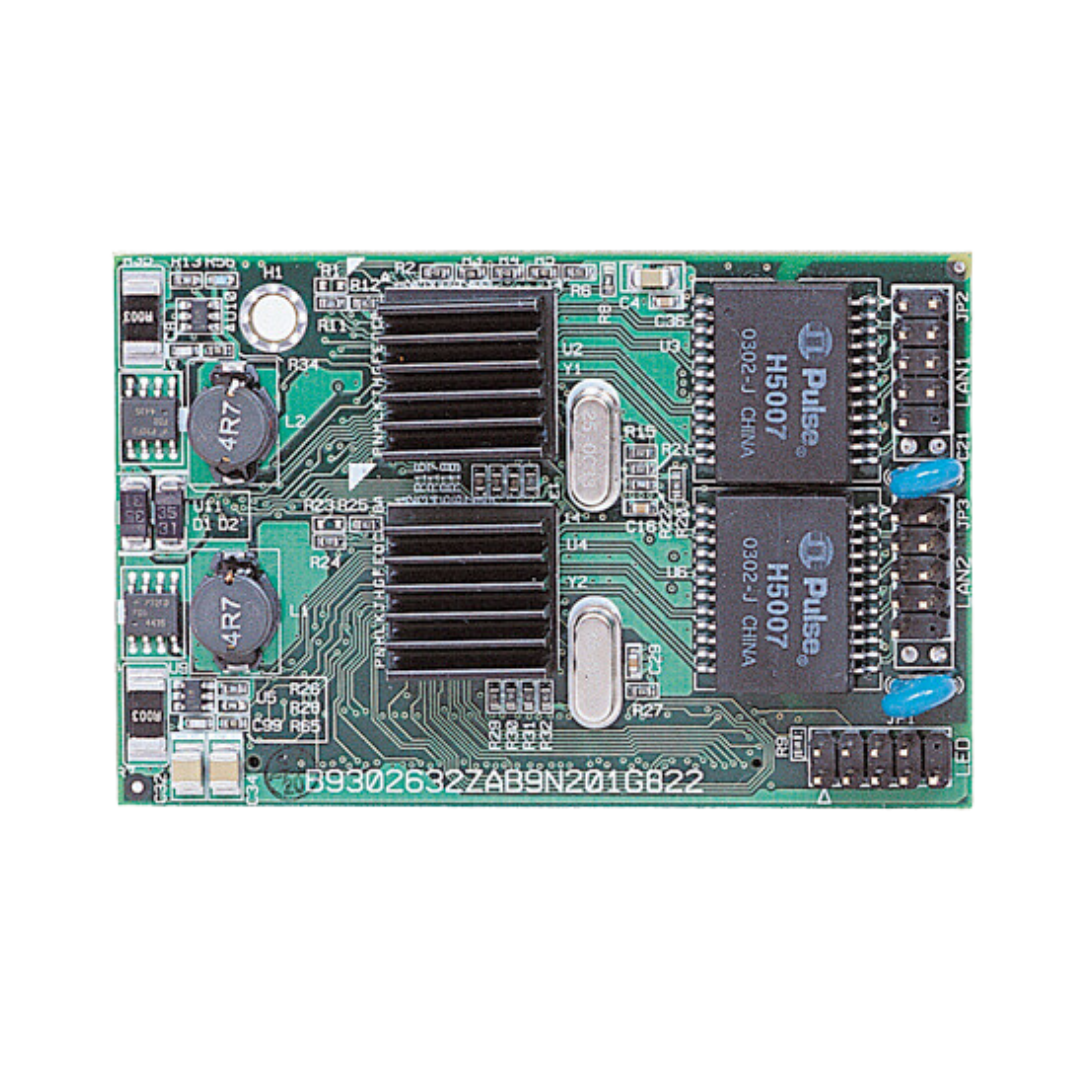

ROBO-N201G2
Two-port Gigabit Ethernet port extension module with Portwell OmniPCI™ connection interface
ROBO-N201G2
Key Features:
- Intel® 82541PI
- Compact sized
- Proprietary PCI connector for piggy back (board to board) connection
- Fully PCI Bus spec. V2.1 compliant
- One accessory card for extension Ethernet port(s), Link, and Speed indicators (Two LED indicators; one shows green when linked and blinks when transmitting or receiving data, the one shows green when linked at 100 Mbps and yellow when linked at 1000 Mbps)
- One Ethernet RJ-45 daughter board and one daughter card
- Support IEEE 802.3
- Auto-negotiation algorithm of full-duplex and half-fuplex operation for 10 Mb/s and 100Mb/s (NWAY)
- Dimension : 77(L) x 52(W) mm
