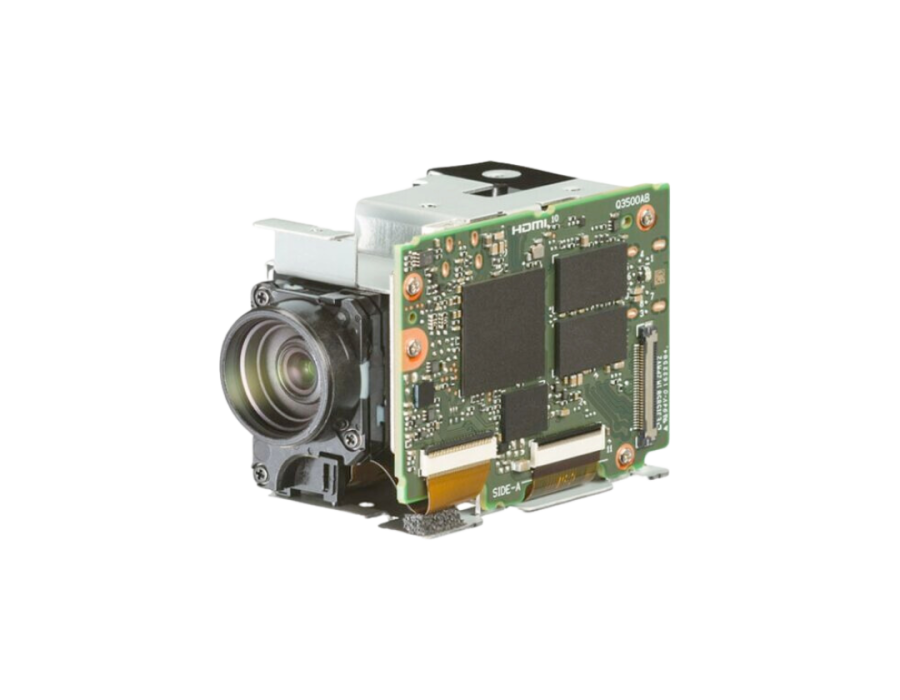

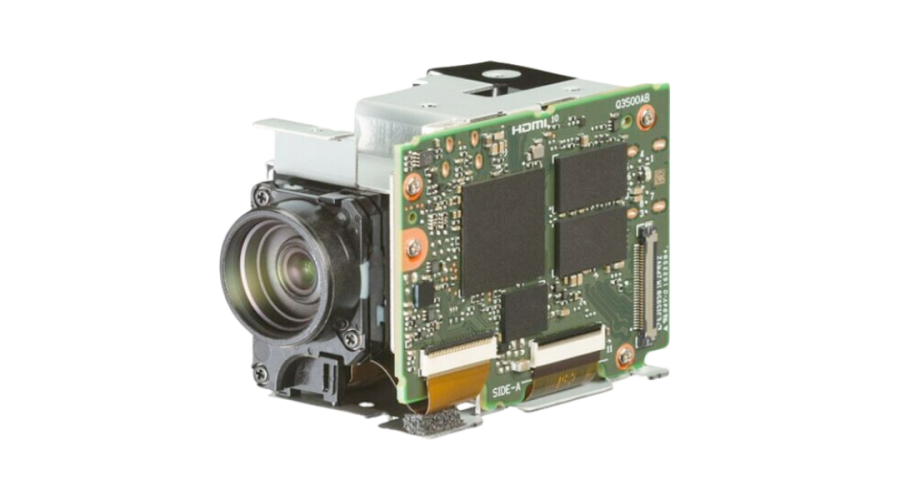

Tamron MP3010M-EV
- Autofocus-zoom camera
- Full HD 1920 x 1080 high resolution
- Compact and lightweight
- LVDS, HDMI and CVBS output
- Optional electronic vibration compensation
- High-sensitive 1/2.8-type Sony IMX335 STARVIS CMOS sensor
- Effective number of pixels approx. 5,140,000
- Pixel output (H x V) 1920 x 1080, 1280 x 720
- Video formats (HD): 1080p/60,59.94,50,30,29.97,25; 720p/60,59.94,50,30,29.97,25
- Lens (wide to tele) 10x optical zoom – digital zoom up to 16x
- Shutter speed 1/1 to 1/10,000 sec
- Dimensions (L x W x H): 59 x 33 x 43mm
| Model | Tamron MP3010M-EV |
|---|---|
| Image sensor | 1/2.8-type Sony IMX335 STARVIS CMOS sensor (progressive scan) |
| Effective no. of pixels | approx. 5.14M pixels |
| Pixel output (H x V) | 1920 x 1080; 1280 x 720 |
| Video format (HD) | 1080p/60, 1080p/59.94, 1080p/50, 1080p/30, 1080p/29.97, 1080p/25, 720p/60, 720p/59.4, 720p/50, 720p/30, 720p/29.97, 720p/25 |
| Signal system (SD) | NTSC/PAL |
| Minimum illumination | 0.1 lx (1/30sec, F1.8, 50%, Color, Typical) 0.025 lx (1/30sec, F1.8, 50%, B&W, Typical) |
| Recommended illumination | 100 lx to 100,000 lx |
| S/N ratio | More than 50dB |
| Gain | Auto / manual |
| Shutter speed | 1/1 to 1/10,000 sec |
| Sync system | Internal |
| Exposure compensation | -12dB to +12dB (total 13 steps) |
| Backlight compensation | ON / OFF |
| Gamma | 4 gamma curves (standard, straight, narrow, wide) |
| Aperture control | 16 steps |
| White balance | ATW1 (Narrow), ATW2 (Wide), One push, Manual (B, R), Indoor, Outdoor |
| AE (Auto exposure mode) | Auto, Manual, Priority Mode (shutter / iris) |
| Lens (wide to tele) | 10x optical zoom, f=3.3 ~ 33.0, F1.8 ~ 3.4 |
| Zoom mode | Standard / Variable / Direct |
| Zoom movement speed (wide to tele) | 1.7 sec (focus tracking ON) |
| Digital zoom | Up to 16x |
| Focusing system | Auto, Manual, One Push, AF Sensitivity |
| Horizontal viewing angle (wide to tele) | 59.2° (w) ~ 6.7° (t) (except when EIS is operated) |
| Minimum object distance (wide to tele) | Visible light: 10mm (wide) ~ 800mm (tele) 850nm: 10mm (wide) ~ 1200mm (tele) |
| Interface | |
| Video output (HD) | LVDS: Digital: Y/Pb/Pr 4:2:2 HDMI: Digital: Y/Pb/Pr 4:2:2(HDMI Type D) |
| Video output SD | CVBS 1V (p-p, 75Ω) |
| Camera control interface | VISCA protocol (VISCA is a trademark of SONY corporation) |
| Functions | |
| EIS (Electronic Image Stabilization) | OFF/ON |
| Wide-dynamic range (Gamma) | OFF/ON |
| Day/Night (ICR) | OFF/ON/AUTO |
| Defog | OFF/ON (Level: 1~3) |
| Noise reduction (3D + 2D) | OFF/ON (Level: 1~5) |
| Privacy zone mask | Up to 8 places |
| Slow shutter | OFF/ON (max 1 sec) |
| Picture effects (black white) | OFF/ON |
| Picture freeze | OFF/ON |
| Electronic flip (e-flip) | OFF/ON |
| Mirror image | OFF/ON |
| Temperature readout | available |
| Title display | OFF/ON (20 characters/line, max. 12 lines) |
| General | |
| Power requirement | 8V to 12V DC +/- 10% |
| Power consumption | Max.: 4.4W (during motor operation – zoom and focus) Typical at 1080p60: ~ 3W |
| Operating temperature | -5°C to +60°C (recommended: 0°C to +40°C) |
| Storage temperature | -40°C to +60°C |
| Operating humidity | 20% to 80% (no condensation) |
| Storage humidity | 20% to 90% (no condensation) |

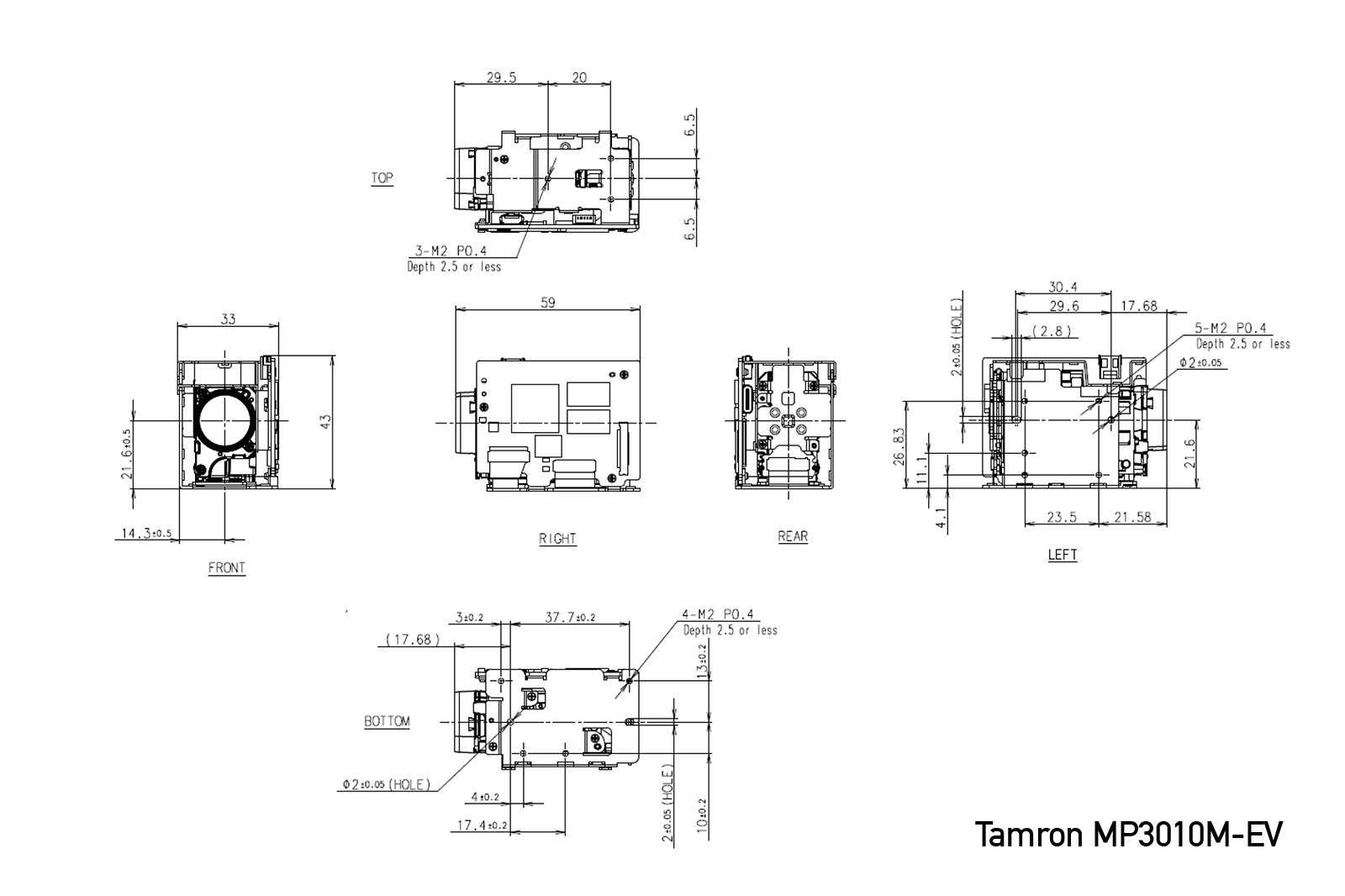

| Dimensions (L x W x H) | 59 x 33 x 43mm (L x W x H) |
| Weight | approx. 70g |
