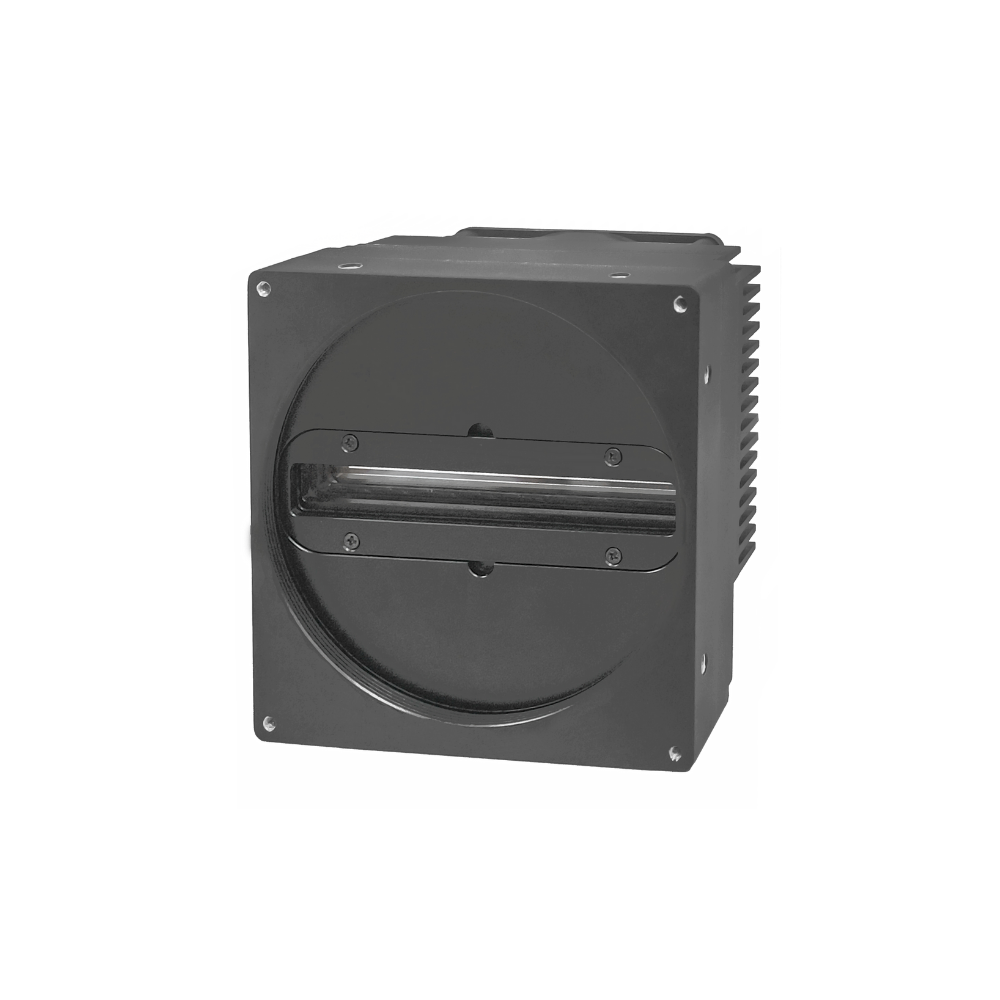

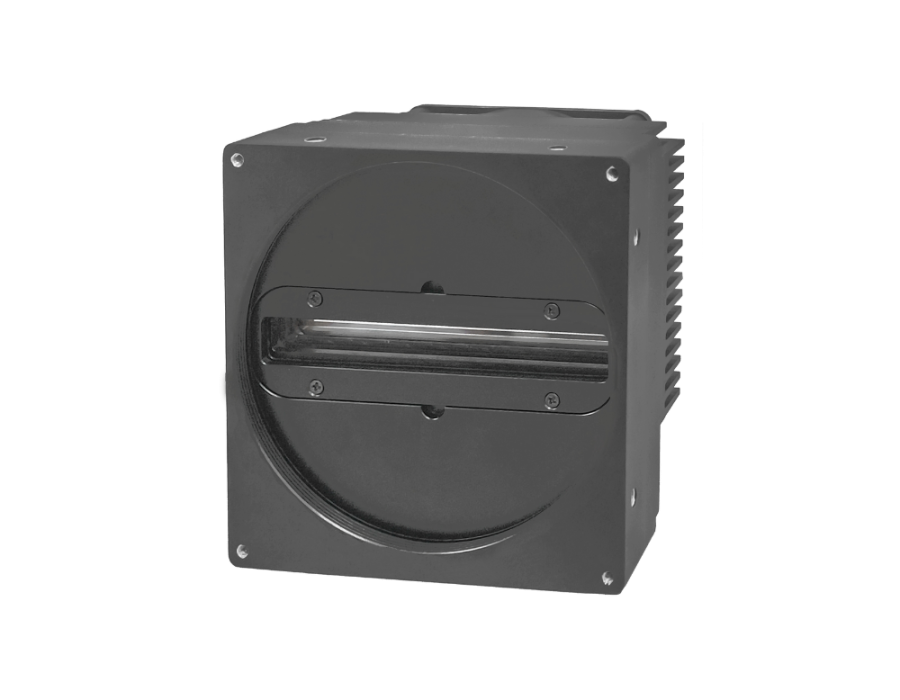

TPH16KCXP12-250KT
Highlight Features
- Back Illuminated CCD
- 16384 * 256 pixels, 5μm * 5μm
- Up to 250kHz Line Rate
- High sensitivity and low noise
| Model | TPH16KCXP12-250KT |
|---|---|
| Sensor | Back Illuminated CCD |
| Image Mode | Mono |
| Optical Size | 81.92 mm |
| Resolution | 16384 * 256 |
| Pixel Size | 5μm * 5μm |
| Max Line Rate | 250kHz@8bit, 200kHz@10bit, 166kHz@12bit |
| Bit Depth | 8/10/12 bit |
| Dynamic Range | ≥ 53.7dB |
| Data Rate | 4079MB/s |
| Trigger Mode | Free run / External trigger |
| Exposure Control | External PWM, Timed |
| Exposure Time | 4μs-1s(Step:0.01μs) |
| Analog Gain | x1/x2/x4/x8 |
| Digital Gain | 0.001-8.000x |
| Data Interface | CoaXPress12 |
| Lens Mount | M95 * 1 |
| Power Connector | Hirose HR10A-7R-6PB(Male) |
| Power Supply | DC12-24V(±10%) 2A |
| Power Dissipation | TEC off: 17.0W |
