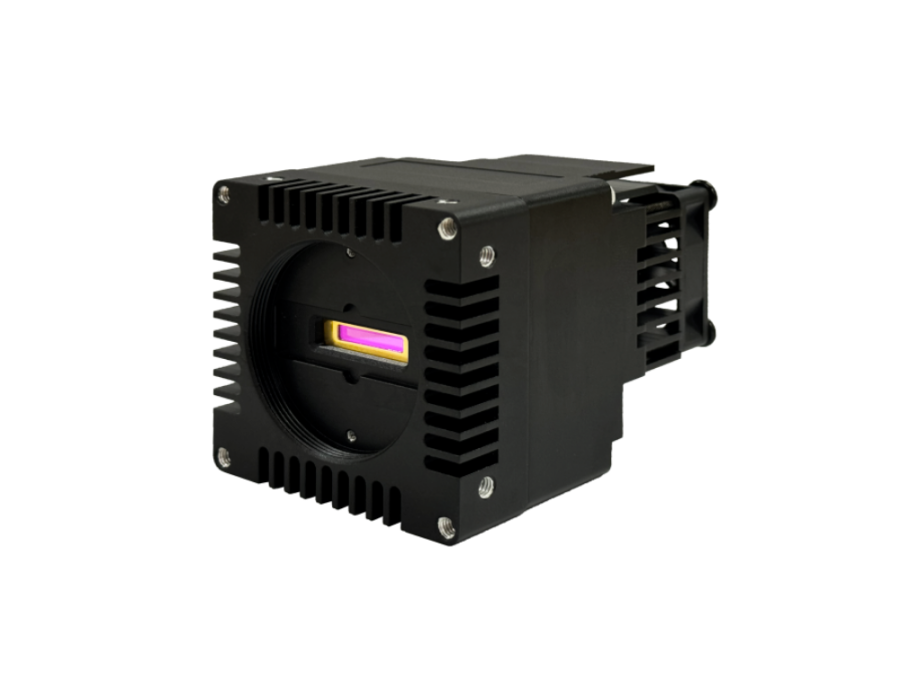

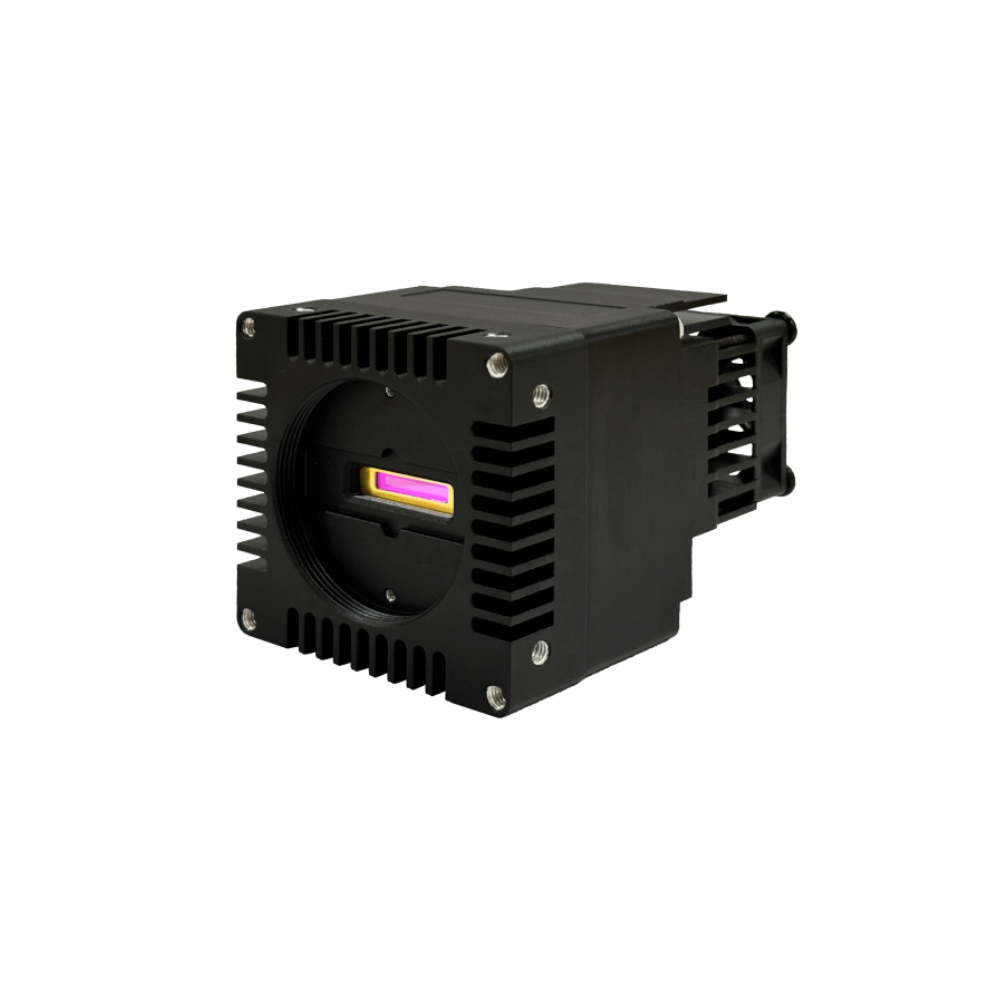

TPL1KBGV-30KS
Highlight Features
- Global Shutter InGaAs
- 1024 * 1 pixels, 12.5μm * 12.5μm
- Up to 40.1 kHz Line Rate
- High sensitivity and low noise
| Model | TPL1KBGV-30KS |
|---|---|
| Sensor | Global Shutter InGaAs |
| Photosensitive Band | 950-1700 nm |
| Image Mode | Mono |
| Optical Size | 12.8 mm |
| Resolution | 1024 * 1 |
| Pixel Size | 12.5μm * 12.5μm |
| Max Line Rate | 29.4kHz |
| Bit Depth | 8/10/10p/12/12p/14bit |
| Dynamic Range | ≥66.7 dB |
| Data Rate | 72 MB/s |
| Trigger Mode | Free-Run / Line trigger control / Frame trigger control |
| Exposure Control | Pulse Width Control / Timed |
| Exposure Time | 0.064us~6581us (step: 0.1us) |
| Analog Gain | 1/5/25/50x |
| Digital Gain | 0.1-8.0x |
| Data Interface | GigE Vision |
| [object Object] | M42 * 1 |
| Power Interface | HD15(Female) |
| Power Supply | DC12-24V(±10%) 1.0A |
| Power Dissipation | TEC On: 10 W ; TEC Off: 5.3W |
| [object Object] | Electronic refrigeration (17℃ below environment temperature) |
